BMS Tester

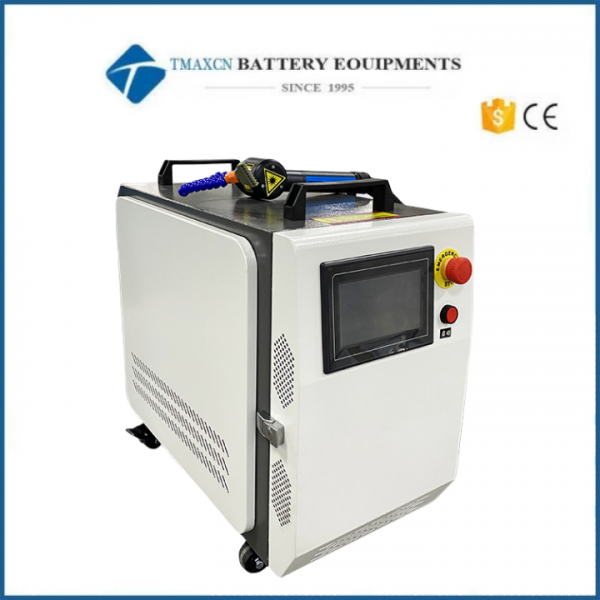

200W Pulse Laser Cleaning Machine

  • Model Number:

    TMAX-HY-L200-P
  • Input Power:

    1000W
  • Dimension(L*W*H):

    1080*900*1480mm
  • Net Weight:

    48kg
  • Compliance:

    CE Certified
  • Warranty:

    1 Year Limited Warranty With Lifetime Support
  • Place of Origin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    25 days
Product Details

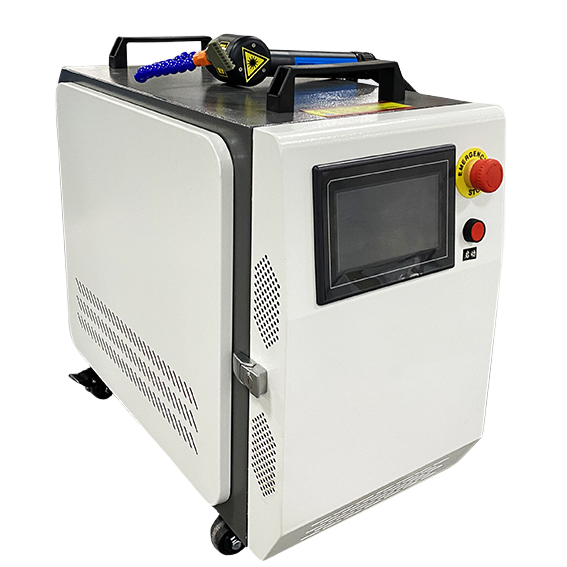

200W Pulse Laser Cleaning Machine


The principle of laser cleaning

Laser cleaning technology refers to the process of using a high-power density laser beam to irradiate the surface of a workpiece, causing the dirt, rust spots, or coatings on the surface to evaporate or peel off instantly, thereby achieving a clean and purified process. This cleaning equipment is a high-tech product for the new generation of surface treatment, which is easy to install, operate, and achieve automation. Easy to operate, simply turn on the power to perform cleaning without chemical reagents, media, dust, or water. It can remove resin, paint, oil stains, dirt, rust, coatings, coatings, and oxide layers from the surface of objects.



The advantages of laser cleaning

1. Non contact cleaning, without damaging the substrate of the parts.

2. The laser cleaning head is lightweight and can be operated by hand for a long time

2. Accurate cleaning can achieve selective cleaning with precise position and size.

3. No need for any chemical cleaning solution, no consumables, safe and environmentally friendly.

4. Easy to operate, can be powered on, and can be automated for cleaning by hand or in conjunction with a robotic arm.

5. Red light assisted focusing, and the focusing position can be adjusted according to different field mirrors

6. High cleaning efficiency and time-saving.

7. The laser cleaning system is stable and requires almost no maintenance.


The advantages of laser cleaning

Cleaning comparison

Chemical cleaning

Mechanical polishing

Dry ice cleaning

Ultrasonic cleaning

Laser cleaning

Cleaning method

Chemical cleaning agent cleaning

Mechanical/sandpaper contact type

Dry ice, non-contact

Cleaning agent, contact type

Laser, non-contact

Appearance of workpiece

Damaged

Damaged

No damage

No damage

No damage

Cleaning efficiency

Low

low

Middle

Middle

High

Cleaning effect

General, uneven

General, uneven

Excellent, uneven

Excellent, with a small scope

Excellent, high cleanliness

Cleaning accuracy

Uncontrollable, poor accuracy

Uncontrollable, poor accuracy

Uncontrollable, poor accuracy

Cleaning range cannot be specified

Accurate and controllable, with high precision

Cleaning consumables

Chemical cleaning agent

Sandpaper/grinding wheel/oilstone

dry ice

Special cleaning solution

Only requires power supply

Safety and environmental protection

Severe chemical pollution

Environmental pollution

Pollution-free

Pollution-free

Pollution-free

Technical Labor

High technical requirements, requiring protection

High strength, requiring protection

Simple, handheld or automated

Simple, but requires manual addition of consumables

Simple, handheld or integrated automation

Cost investment

Low initial investment and extremely high cost of consumables in the later stage

High initial investment and high labor costs for consumables in the later stage

Medium initial investment, high later consumables costs

Low initial investment, moderate later consumables costs

High initial investment, no consumables in the later stage, and extremely low maintenance costs

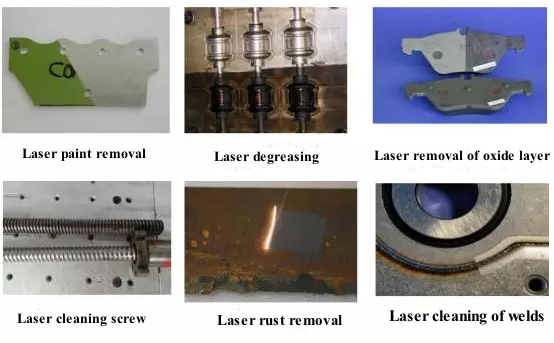

Industry applications of laser cleaning

1. Aerospace industry: Laser cleaning of aluminum alloy before and after welding; Laser cleaning of titanium alloy before and after welding; Laser cleaning for repairing aircraft radar layers.

2. Ship manufacturing industry: laser cleaning before and after welding in ship manufacturing; Laser cleaning of the surface before painting; Ship maintenance and cultivation

3. Rail transit industry: stainless steel train manufacturing, laser cleaning; Laser cleaning for aluminum alloy train manufacturing; Maintenance and cultivation of rail transit equipment, laser cleaning

4. Automotive manufacturing industry: Laser cleaning of galvanized sheet before welding; Laser cleaning of aluminum alloy before and after welding

5. Steel manufacturing industry: laser rust removal on steel surfaces; Laser rust removal on the surface of cold-rolled sheet.



Configuration

Configuration and model

TMAX-HY-L200-P

Remark

Fiber laser system

Pulse laser 200W (nanosecond)

TMAX

LASER

Handheld cleaning hair

TMAX

Laser head scanning system

High speed motor and drive

TMAX

Control card and software

Laser cleaning control card





TMAX

Wireless Controller

Remote wireless controller

TMAX

Control panel

Handheld

TMAX

Transformer

Voltage from 110V to 220V



Main technical parameters

Model

TMAX-HY-L200-P

Wavelength

1064nm

Maximum laser output power

> 200

Frequency adjustable range

1 - 4000 kHZ

Maximum pulse energy

5MJ

Pulse width

2 - 500 NS

Beam Diameter

4.0±0.57.5±0.5customizableMM

Supply Voltage

48V

Settable working range

100mm

Weight

48kg

Machine size

1080*900*1480mm

Power consumption of the entire machine

1000W


Detailed technical requirements:

Model

TMAX-HY-L200-P

Laser class

Class IV

Output power

200±3W

Wavelength

1064±3nm

Laser mode qualityM2

1.3

Laser power stability

±5 Max

Laser single pulse energy

5mj (max)

Laser power adjustment range

1100

Laser frequency adjustment range

14000khz

Pulse width adjustment range

1500ns

Cooling method

Forced air cooling

Cooling method

Spiral (10 levels adjustable)

Single cleaning size

Adjustable length of 1-150mm

Parameter adjustment method

Dual touch screen control system

Touch system size

7 inches+4 inches

Fiber Length

Standard configuration of 5 meters

Input power supply

AC220V±10 50/60Hz

Overall Power Consumption

800W

Equipment structure

Workbench

Work environment

0—40℃≤70 RH
