Model

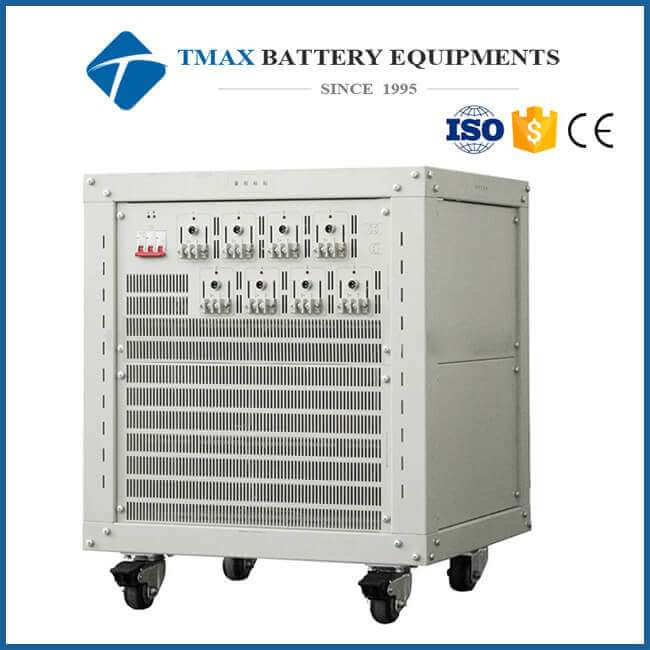

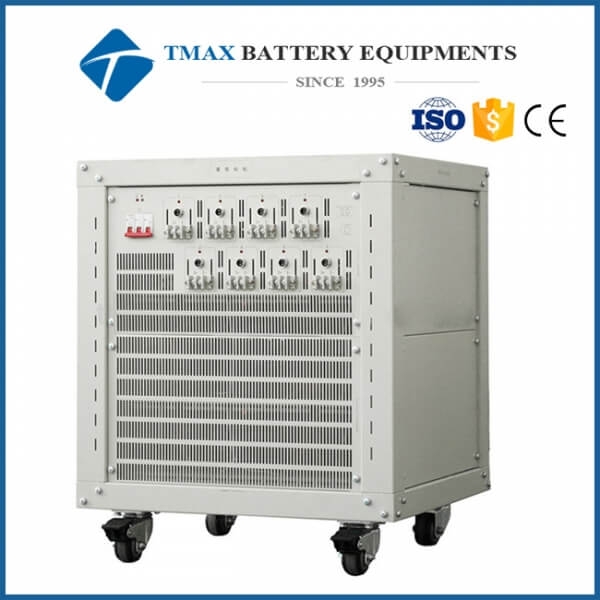

Battery pack tester TMAX-BTS-20V10A

Warranty

One Year limited warranty with lifetime support

Source voltage

AC110V-220V±10% Customized, 50HZ

Input impedance

≥1MΩ

Input power

2346.7W

Channel characteristics

Constant current source and voltage source adopt double closed loop independent structure

Channel control mode

Independent control

Voltage range per channel

Charge : 40mV-20V Discharge : 2.5V-20V

Accuracy : ±0.1%

Current range per channel

Charge : 20mA-10A Discharge : 20mA-10A

Accuracy : ±0.1%

Output power per channel

200W

Time

Current response time

0-10A : 20ms

Step time range

1s-365*24h,Time format : 00:00:00(H:Min:S)

Record condition

TimeΔt ：1-60000s VoltageΔU : 40mV-20V

CurrentΔI : 20mA-10A

Charging mode

Constant current charge,constant voltage charge,

constant current and voltage charge

Discharging mode

Constant current discharge,constant power discharge

Conditions of constraint

Time, voltage, current, capacity

Cycle

Cycle range

1-65535 times

Steps pur cycle

254

Protection

Power-down data protection,off-line test function and

Safety condition setting protection

Voice

≤85dB

Communication interface

Serial ports

Channel number per unit

8

Dimension(L*W*H)

600*600*740mm

Working temperature/humidity

-10-40℃ ≤70%RH
