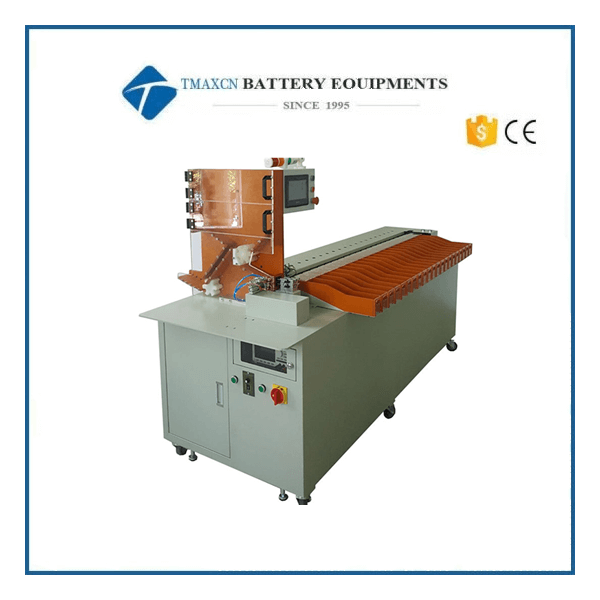

22 Channel 18650 26650 21700 32650 Cylindrical Battery Sorter for Battery Pack Assembly
Model Number:
TMAX-FN-22Input Power:
1.6KWNet Weight:
300kgCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPlace of Origin:
ChinaShipping Port:
XIAMENPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
12 Channels Automatic Battery Sorting Sorter Machine for 18650 or 26650 Cylindrical BatteryNext:
Automatic 13 Channel 18650 Cylindrical Battery Sorter/Selector for Battery Pack Assembly

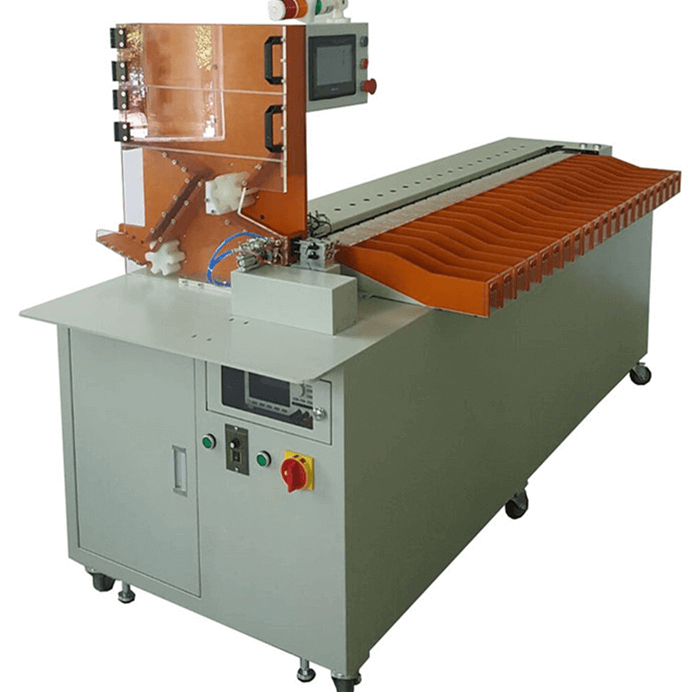

22 Channel 18650 26650 21700 32650 Cylindrical Battery Sorter for Battery Pack Assembly
Feature
1. Compact and reasonable equipment structure, beautiful appearance,small volume.
2. Simple equipment operation,workerscan easily learning.
3. The equipment is controlled by PLC and PC.The PLC is responsible for battery feeding, battery handling and battery sorting. The PC is responsible for battery testing data collection, voltage internal resistance rating, high work effienciency, saving manpower, good product perfermance.
4. Equipment materials are made of high quallity thick cold - rolled sheet metal, aluminum frame.
Specification
Channel No. |
22 |
Production Efficiency |
6000pcs/hour |
Scope of Adaptation |
Automated sorting voltage for 18650 or other cylindrical cores. Internal resistance can also be sorted separately or separately. |
Automatic Online Interface |
It can be customized to connect the outlet of the automatic surface cushion machine in the machine hopper to realize the automatic connection of the electric cores and save the labor cost. |
External Connection |
Customizable automatic connection automatic surface mattress machine (electric core poured into automatic surface mattress machine, pasted surface mattress automatically flowed into automatic sorter, sorting, saving manpower) |
Equipment Power |
1.6KW, 220V/110V AC input, 50Hz |
Air Pressure |
0.4-0.8Mpa |
Voltage Setting |
0.000V-6.000V |
Internal Resistance Setting |
000.0 milliohms - 999.9 milliohms |
Standard Tester |
HK3561 High Speed Tester Voltage Accuracy :±0.1% rdg Internal Resistance Accuracy: +/- 0.5% rdg |
