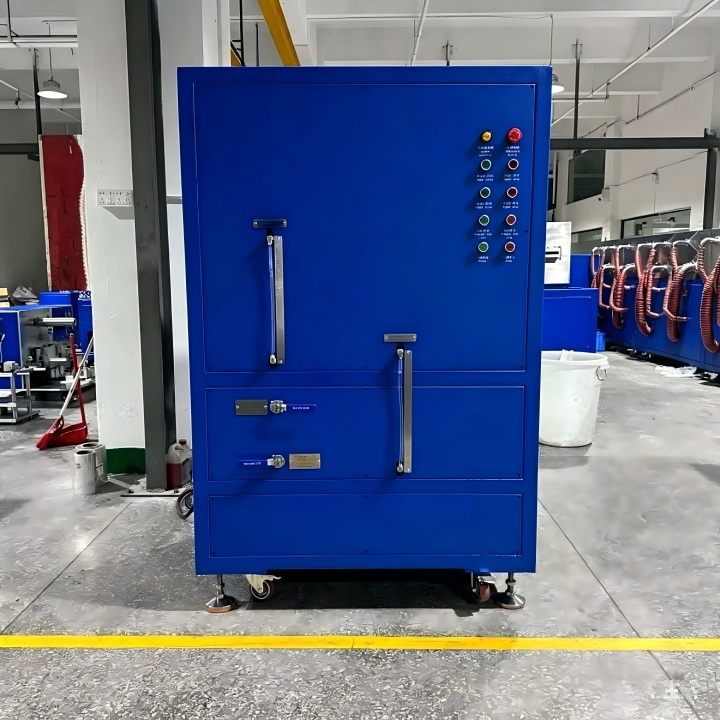

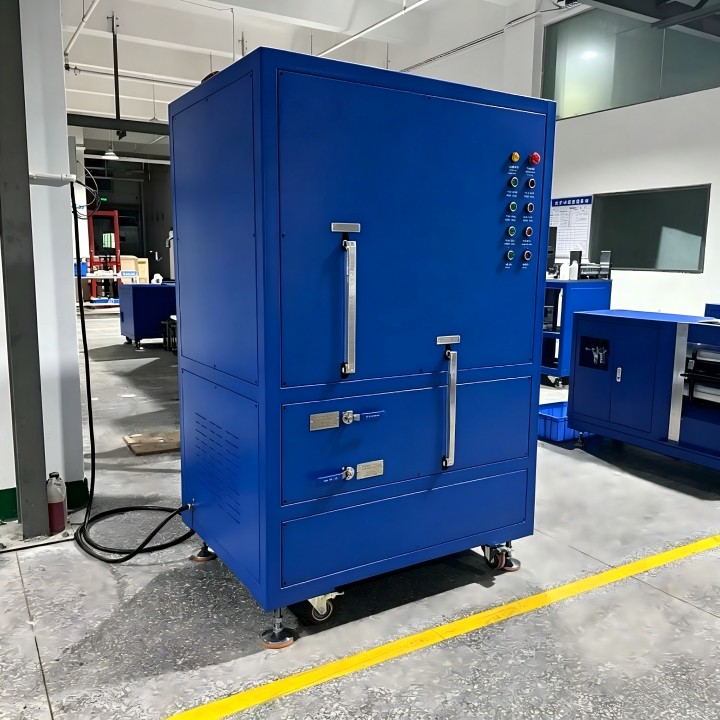

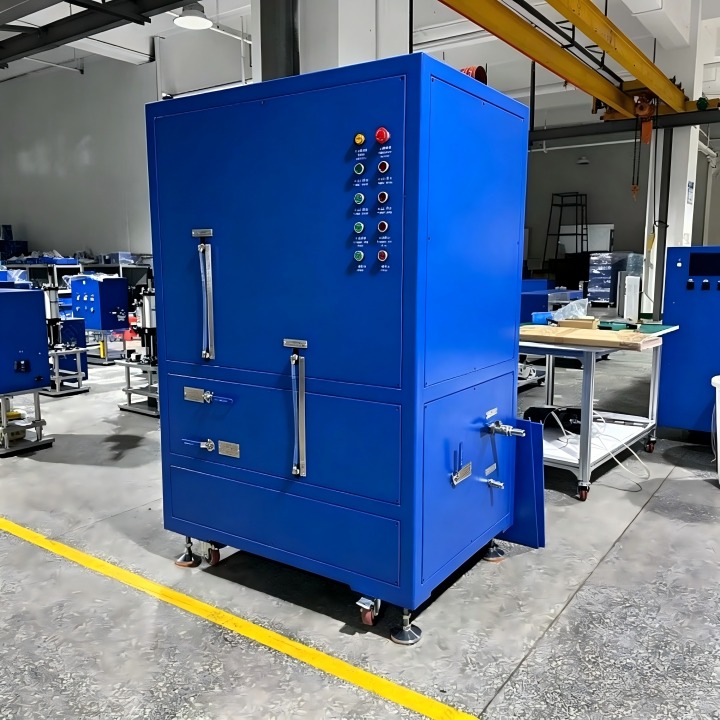

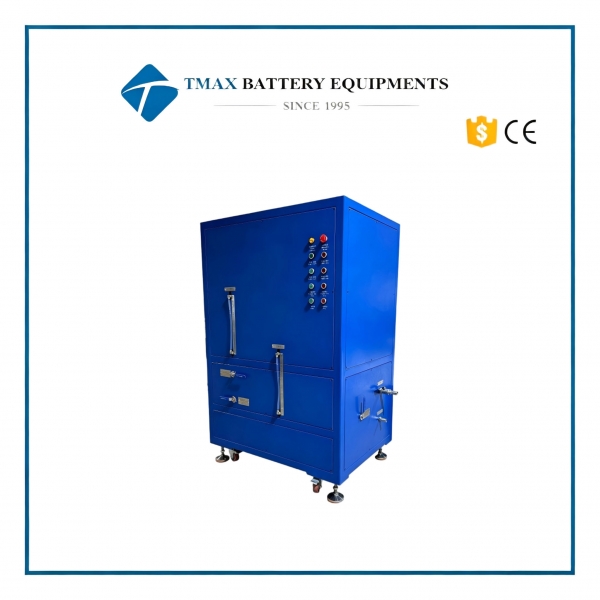

2200 m³/h NMP Recovery System for Battery Coating Process



Introduction

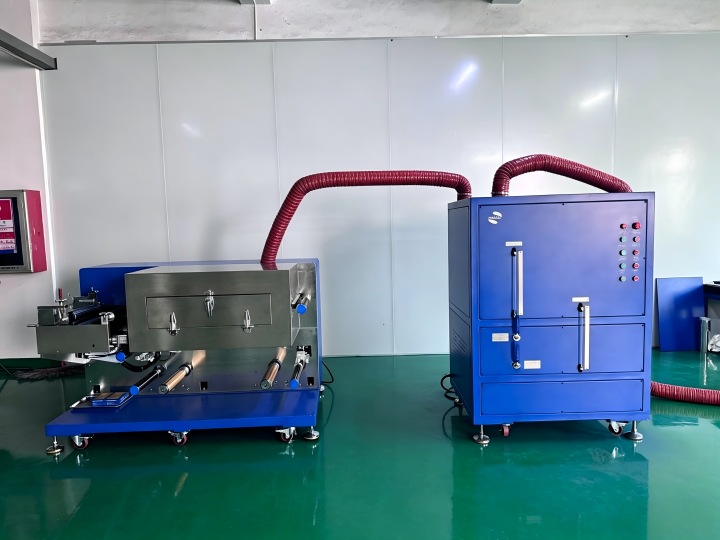

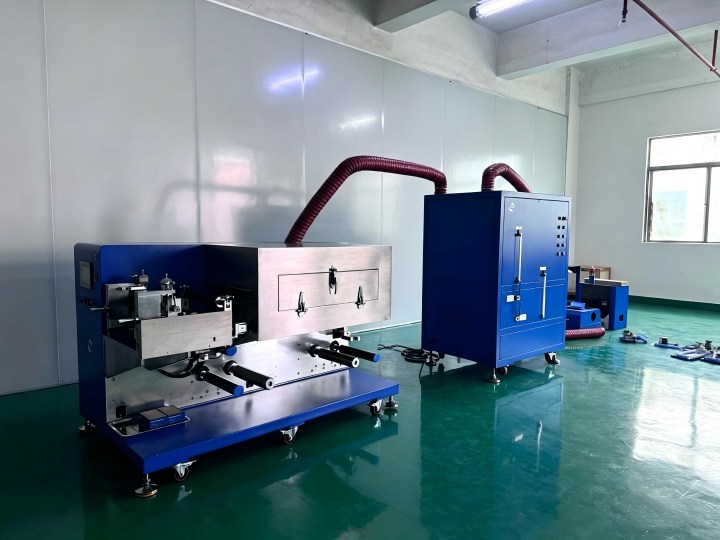

The solvent treatment system uses a water-bath absorption principle to recover NMP exhaust gas generated during the lithium battery coating process.



Features

1) Two-stage water-bath treatment unit with excellent NMP and dust recovery performance

2) Fully welded stainless steel inner tank with strong corrosion resistance

3) Powder-coated outer shell with clean and durable appearance

4) Water-bath recovery system for coating exhaust gas treatment

5) Self-priming air intake design, supports direct tap water supply



Parameters

Item	Specification
Power supply	3-phase AC380V ±10%, 50Hz, 1.5 kW
Treatment object	NMP-containing exhaust gas
Treatment method	Water-bath absorption treatment
Processing capacity	2200 m³/h
Inlet air temperature	≤150°C
Water tank capacity	Max. 100 L
Water-bath area	Single-stage ventilation area ≤1600 mm²
Water pump	Flow rate: 3 m³/h
Fan	Centrifugal fan, air volume 2200 m³/h, static pressure 2000 Pa, power 0.75 kW
Air inlet duct	Interface diameter: φ102 mm, connected to 4-inch aluminum foil duct
Exhaust duct	Interface diameter: φ102 mm, connected to 4-inch aluminum foil duct
Equipment dimensions	1100 × 800 × 1650 mm (actual size prevails)
Weight	Approx. 300 kg (without water)
