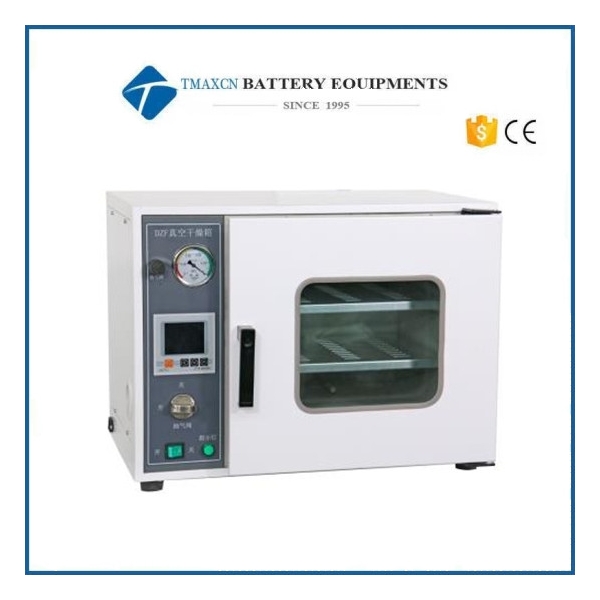

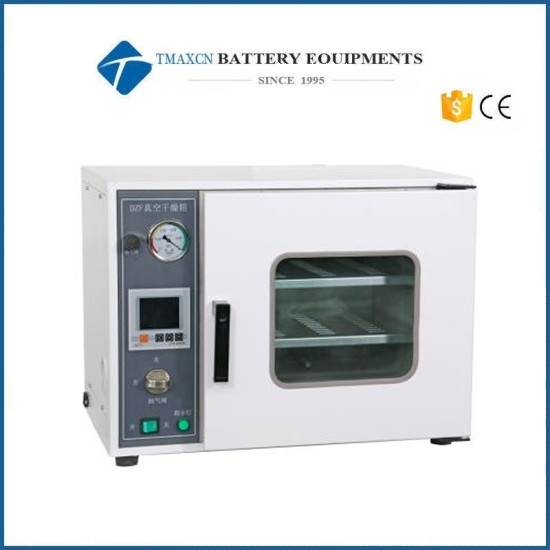

25L/50L/90L/215L Small Laboratory Battery Electric Vacuum Drying Oven

Introduction

Vacuum drying ovens are widely used in research applications such as biochemistry, chemical pharmacy, medical and health, agricultural scientific research, environmental protection, etc., and are suitable for powder drying, baking, and disinfection and sterilization of various glass containers. It is suitable for fast and efficient drying treatment of dry heat sensitive, easily decomposed, easily oxidized substances and complex components.

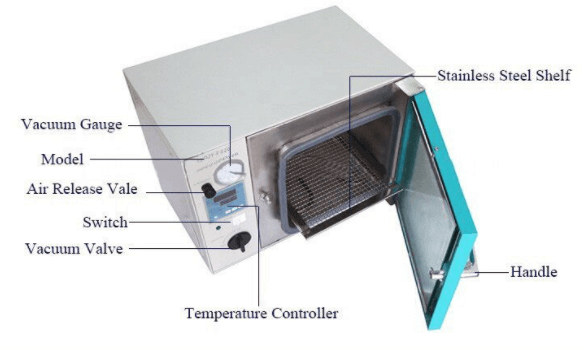

Features

1. The product shell is made of cold-rolled steel plate, the surface is electrostatic sprayed, and the inner tank is surrounded by arc transitions for easy cleaning.

2. A uniquely designed silicone sealing ring is used to seal the outer door and the box to ensure the vacuum of the box. The door of the machine can be opened easily in a non-vacuum environment.

3. The temperature control system adopts microcomputer PID design, intelligent color screen LCD display, with temperature control, timing, over-temperature alarm functions.

4. The studio has a rectangular structure with a large effective area.

5. The unique double-layer glass door design not only ensures the airtightness, but also allows you to observe the objects in the working room through the glass window.

6. A is an iron plate studio; AB is a 201 stainless steel studio; BE is a 304 stainless steel studio.

7. Program control instrument, printer, 485 interface, U disk storage, SMS alarm and other functions can be installed.

Technical parameters

Remarks: The above temperature and humidity parameters are measured at no-load temperature of 28℃ and humidity of 65%RH

Precautions for safe operation

1. For the safety of the experiment, please install an external grounding device, and choose a power supply that matches the equipment to install a leakage protection device.

2. The equipment is strictly prohibited to be used in the experiment of flammable, explosive, highly toxic, and highly corrosive items.

3. Place the equipment on a dry platform or on the ground and keep it >50cm with the wall.

4. Place the experimental items on the tray as needed, turn on the power, turn on the switch, and set the required temperature according to the operating instructions of the smart meter.

5. Turn off the power when the equipment is not in use and keep it dry and clean.

6. Please carefully read the instructions for use of this product before operation.
