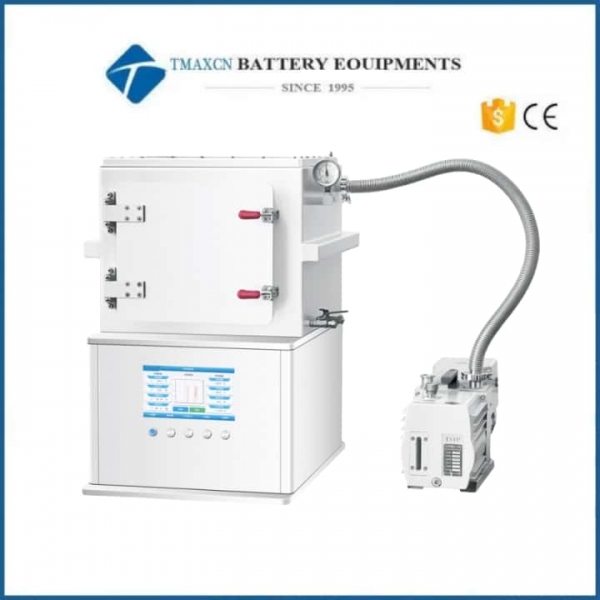

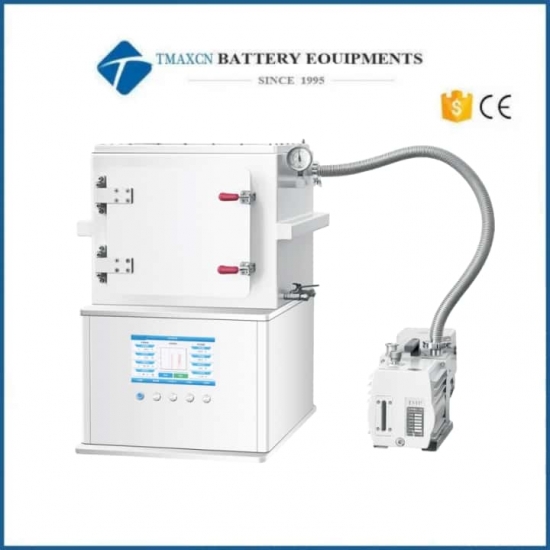

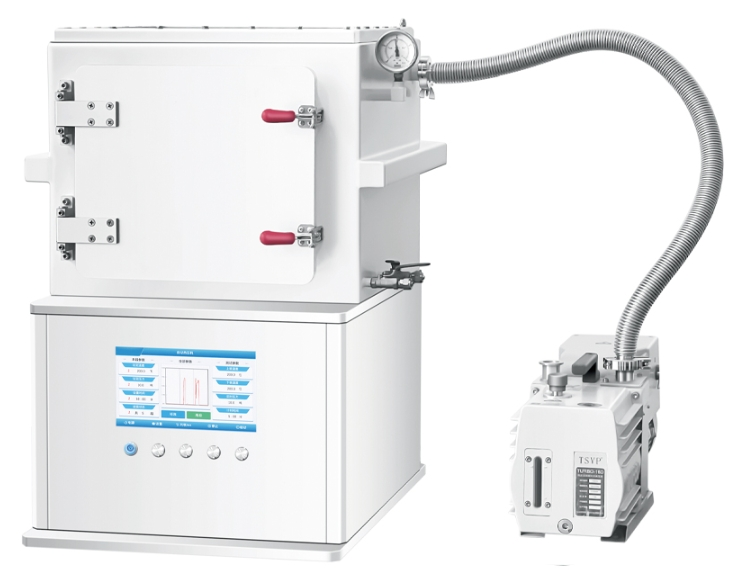

25T 500C High Temperature Multi-stage Programmable Vacuum Hot Press with Vacuum Pump

25T 500C High Temperature Multi-stage Programmable Vacuum Hot Press with Vacuum Pump

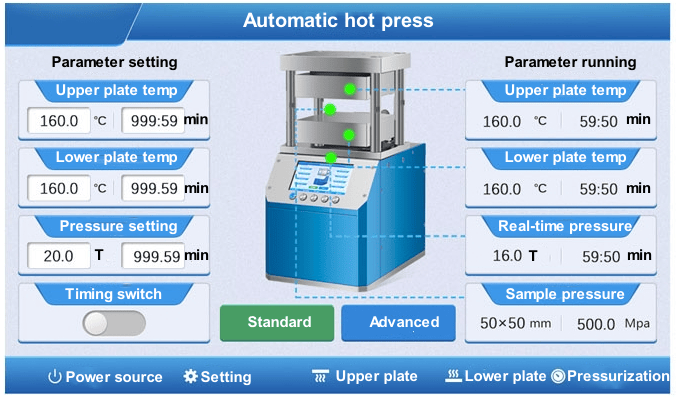

Operation interface (Standard mode)

Standard interface: The heating temperature and constant temperature time of the upper and lower plates can be set separately on the interface.

Pressurization button: Press according to the parameters set on the interface.

Upper plate button: Heat the upper heating plate.

Lower plate button: Heat the lower heating plate.

Timing switch: The timing function can be turned on and off.

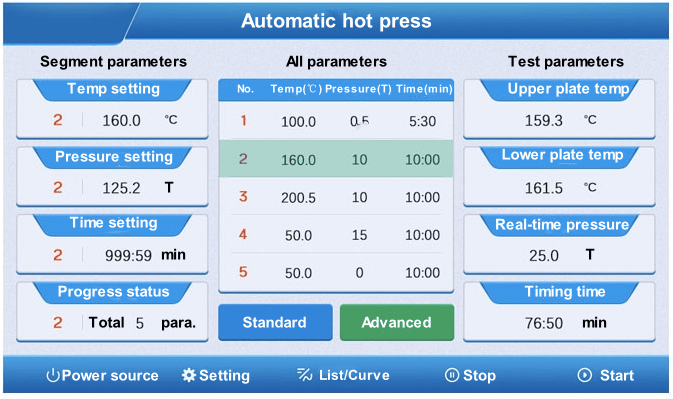

Operation interface (Advanced mode)

Start button: It can be pressurized according to the multi-stage pressurization program.

Stop button: During the heating process, pressing the stop button can stop the heating.

Settings button: Click the Settings button to enter the Settings menu.

Operation interface (Advanced mode)

List/Curve: The current display state can be switched between list and curve.

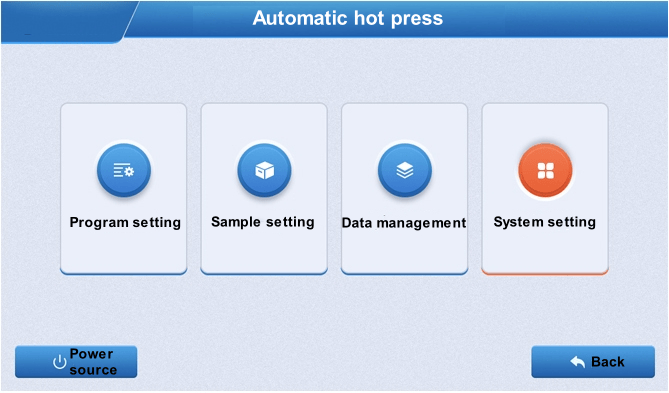

Setting interface

Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings:Multi-stage pressure procedures and pressure holding times can be set.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"

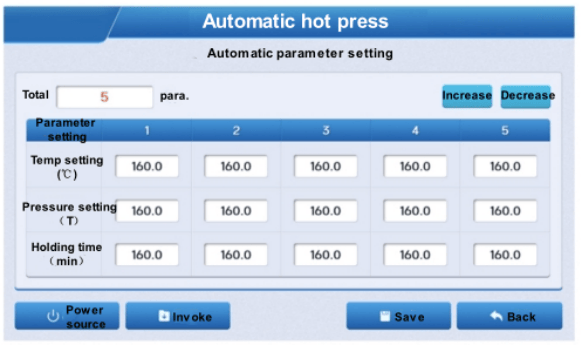

Setting interface

Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Invoke the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen

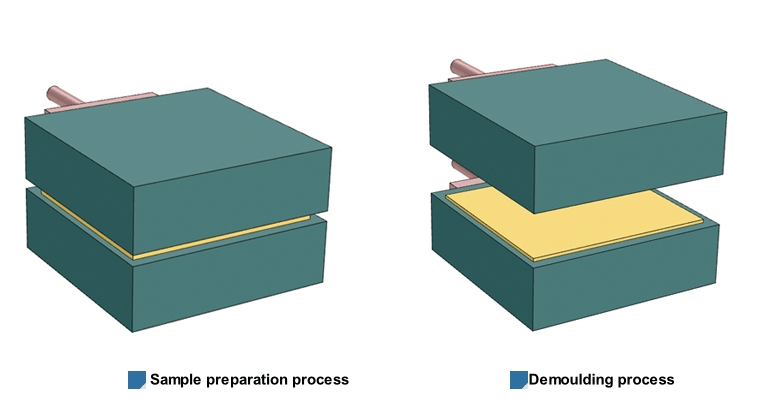

Mold operation diagram

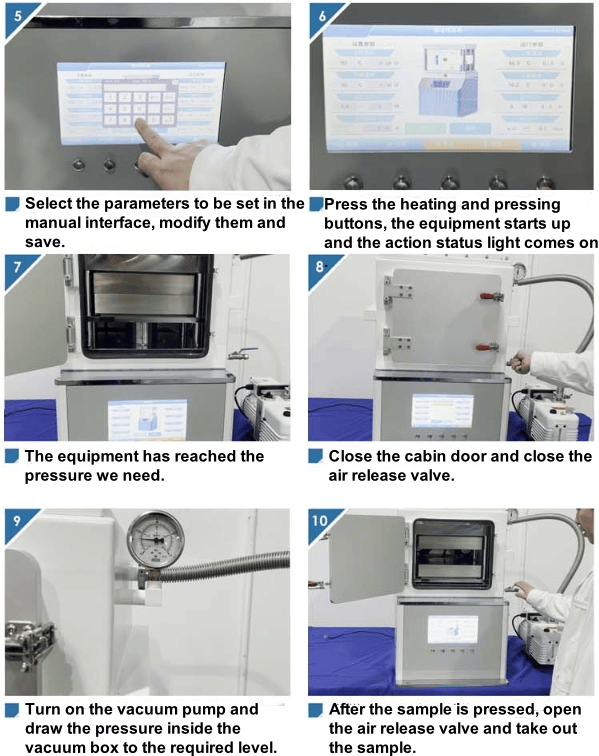

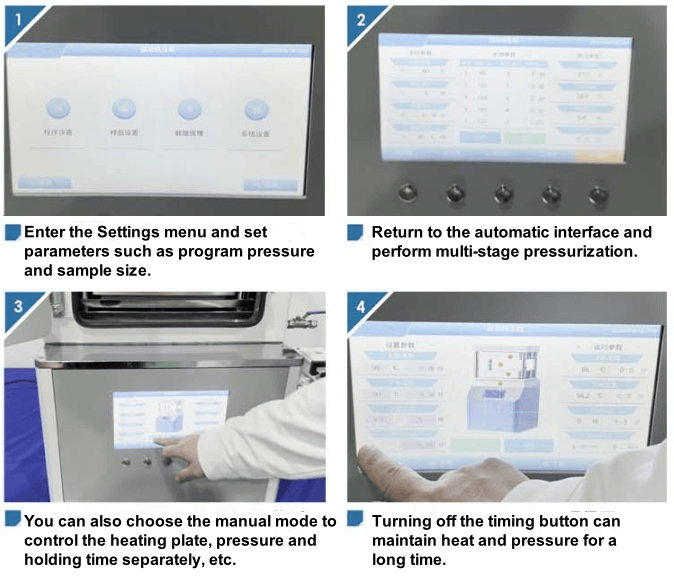

Operation procedure

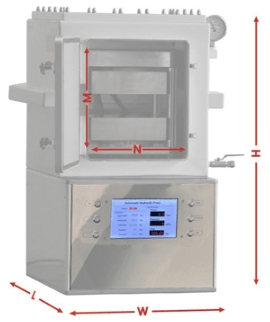

Technical parameter
