12T Press

300℃ 12T Manual Lamination Hot Press with Double Heating Plate

  • Model Number:

    TMAX-RYJ-600E
  • Compliance:

    CE Certified
  • Warranty:

    One year limited standard warranty
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

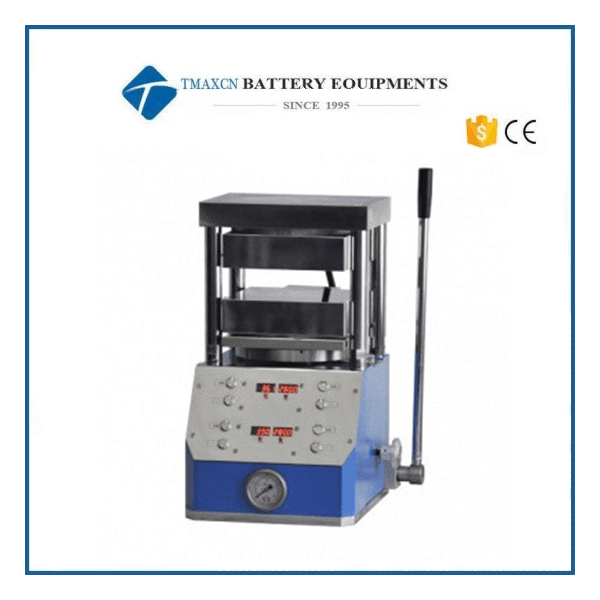

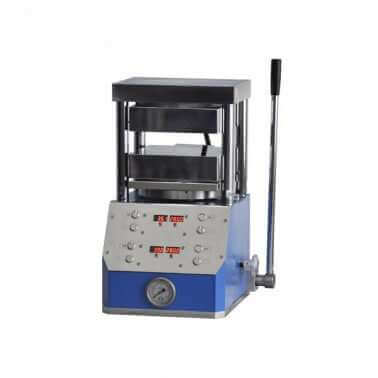

300℃ 12T Manual Lamination Hot Press with Double Heating Plate


Features

RYJ-600E series electric heating tablet press is a brand-new integrated, small tonnage, widened, double-plate hot tablet press developed by our company in accordance with market demand. This manual hot press is suitable for users who have strict pressure control accuracy and need wide-size mold compression test. It can perform high-temperature compression test on some solid samples such as powder, rubber, plastic film, and can also be used as a small vulcanizer It has been widely used in scientific research, teaching, persistence, pharmacy, catalysis, chemical industry and other industries, and can replace similar imported products


Technical Parameter

Model

RYJ-600E1

RYJ-600E2

RYJ-600EG1

RYJ-600EG2

Pressure range

0-12T(0-30MPa)

Piston diameter

Ф70mm chrome-plated cylinder

Pressure gauge type

Pointer type, 0-40Mpa, double scale display of pressure and pressure

Pressure method

Manual Pressure

Thermostat type

XNNETS PLC program temperature controller

Temperature control range of thermostat

RT --600.0℃/0.1℃

Mold heating type

Heating of upper and lower two plates (double plate/polished surface)

Mold heating temperature

RT-300.0℃

RT-500.0℃

Mold cooling method

Water cooling

Water cooling

Insulation method

Imported insulation board

Imported heat insulation board + stainless steel water-cooled heat insulation board

Heating mold size

80×180mm

200×200mm

180×180mm

200×200mm

Power

220V/1800W

220V/2500W

Dimension

280×320×520mm

Weight

95kg

standard configuration

1 hot press (water cooler optional)
