3000RPM Double Cups 160ML Planetary Centrifugal Mixer for Powerful Dispersion And Defoaming Suitable for Epoxy Resin

3000RPM Double Cups 160ML Planetary Centrifugal Mixer for Powerful Dispersion And Defoaming Suitable for Epoxy Resin

Model: ITT-160S

Application: Suitable for the dispersion, mixing and deaeration of multi-component materials (silicone gel, multi-component epoxy resin).

Standard container: 160ML(nylon φ60×60)

Maximum processing capacity: 75mL*2 175g*2

Revolution: Stepless speed regulation from 100 to 3000rpm. Input freely according to the actual needs of the user and adjust by 1rpm.

Rotation: Constant speed ratio 0.7

Time setting: 0-3000S x 5(a total of five steps), accuracy 1 second;

Parameter storage capacity: 5 groups

The vacuum degree of the whole machine: When equipped with SD-240, it can reach -100 kA (at an altitude of 0 meters).

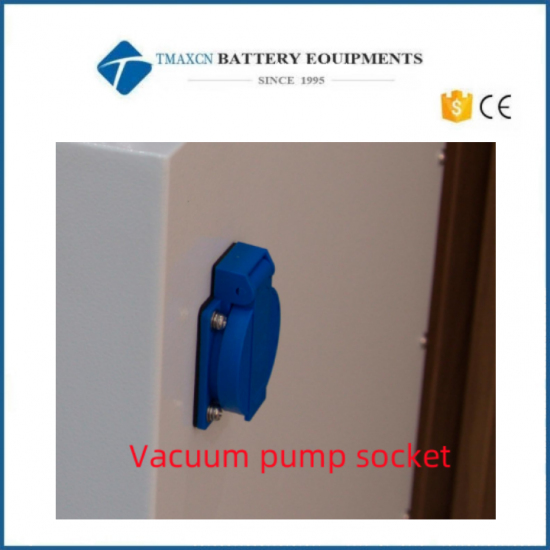

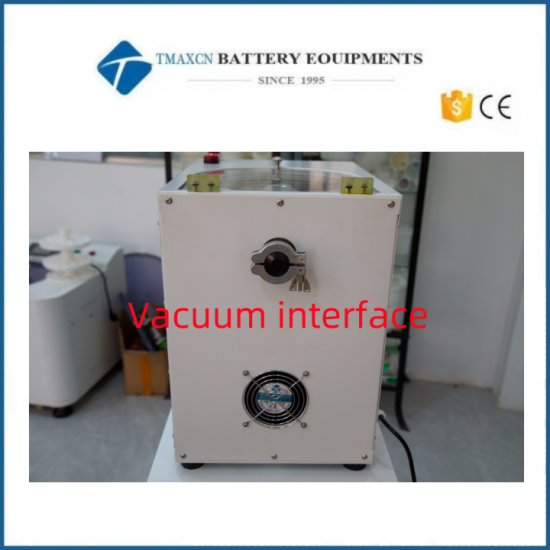

Vacuum source: Optional external two-stage advanced vacuum pump 240L/ minute (=4L/ second =14-16m ³ / hour);

Vacuum setting: Independent vacuum switch with vacuum delay function, vacuum degree can be adjusted arbitrarily;

Bearing: Japanese NSK bearing;

Control system: Human-machine dialogue, Chinese interface, touch screen operation;

Balance adjustment: Double-cup configuration balance;

Transmission mode: Gear transmission

Working principle: Public rotation wingless centrifugal gravity mode;

Alarm device: An alarm will be triggered when the upper cover is not covered during operation.

Safety protection: The upper cover is locked during operation and stops working when the upper cover is opened.

Applicable temperature and humidity: 10-40 ℃ 20 to 80%RH (no foggy moisture is acceptable);

Voltage: AC220V±5% "1-Phase;" 50-60Hz

Power: The rated power of the main unit is 500w, excluding the vacuum pump. Standby power is 15W

External dimensions: L320×W440×H460mm

Main unit weight: 30Kg.

Equipment features: The self-rotation and revolution movements generate a maximum centrifugal gravity of nearly 400G, providing strong dispersion and defoaming effects. There are no spiral blades to achieve stirring and dispersion within the container. No cleaning is required and it will not contaminate the materials. Do not damage the properties of the material (especially fibrous materials); Human-computer interaction and convenient operation; An optimized design that is ultra-small, ultra-light and ultra-quiet.

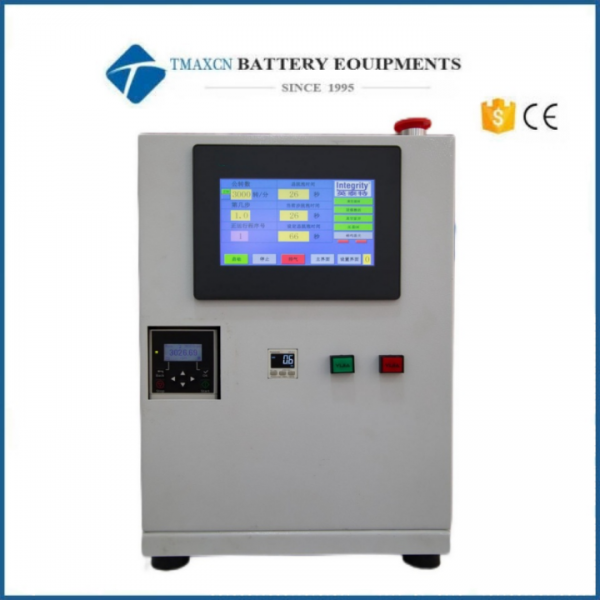

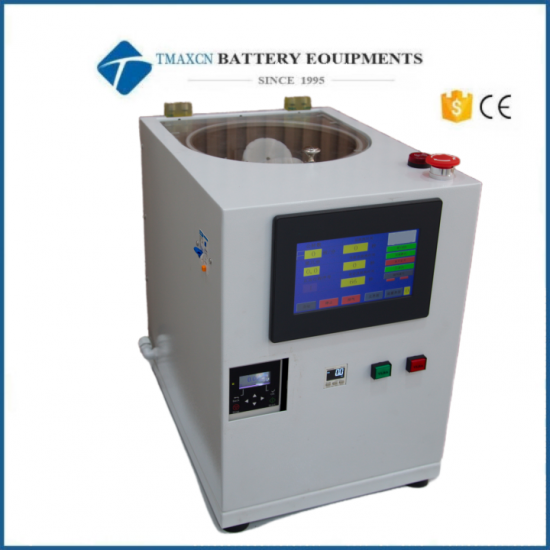

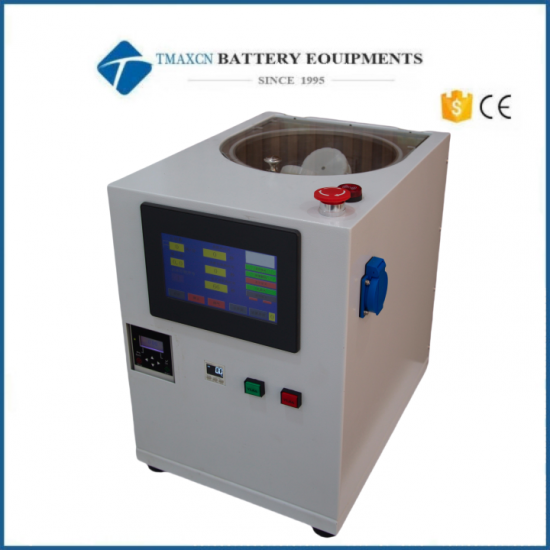

Equipment detail drawing:
