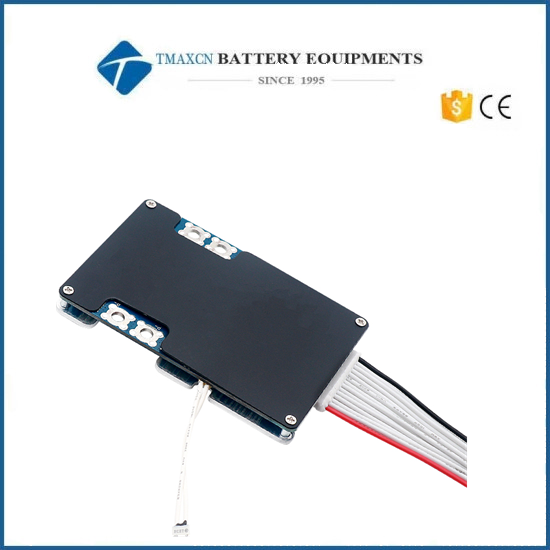

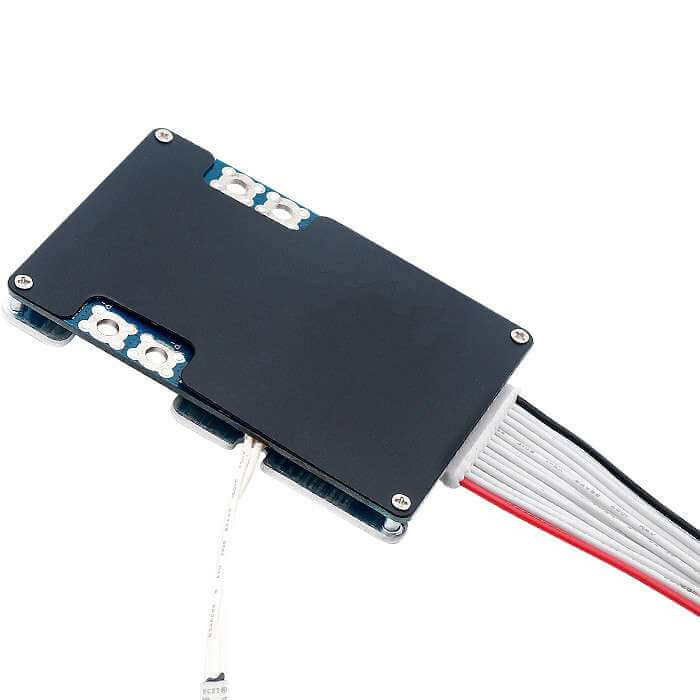

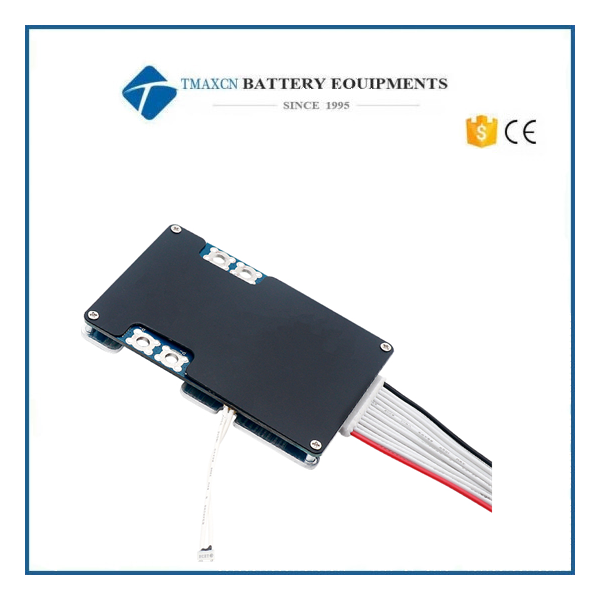

30A Li-ion 13S BMS 48V with Balance Common Port PCB Protection Board for Ebike Electric Bicycle

Product Description

1. TMAX-TDT-8253 BMS can be used for 3S-16S 12V-60V battery pack.
2. According to your requirements, it can be applied to Li-ion battery or LiFePO4 battery pack.
3. The main functions are: over-charging protection, over-discharging protection, over-current protection, short circuit protection, temperature protection, balance function etc.
4. According to your requirements, we can develop PCM of different sizes and structures.

Advantages:
1. It is "cascade" design, the same BMS can be used for any series of battery packs between 4S-16S, just need to cut off the redundant lines. (see the following picture for details)

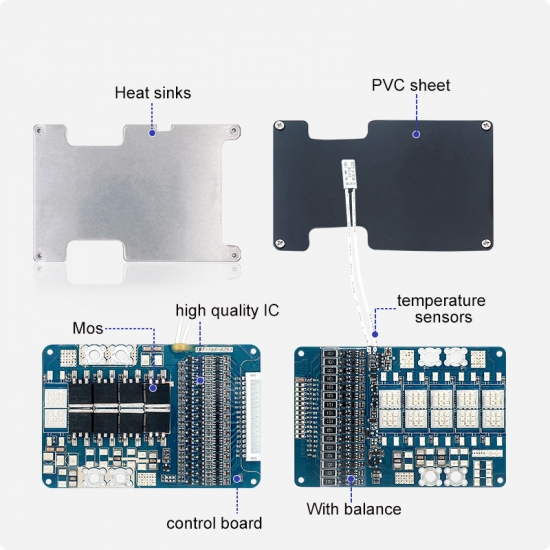

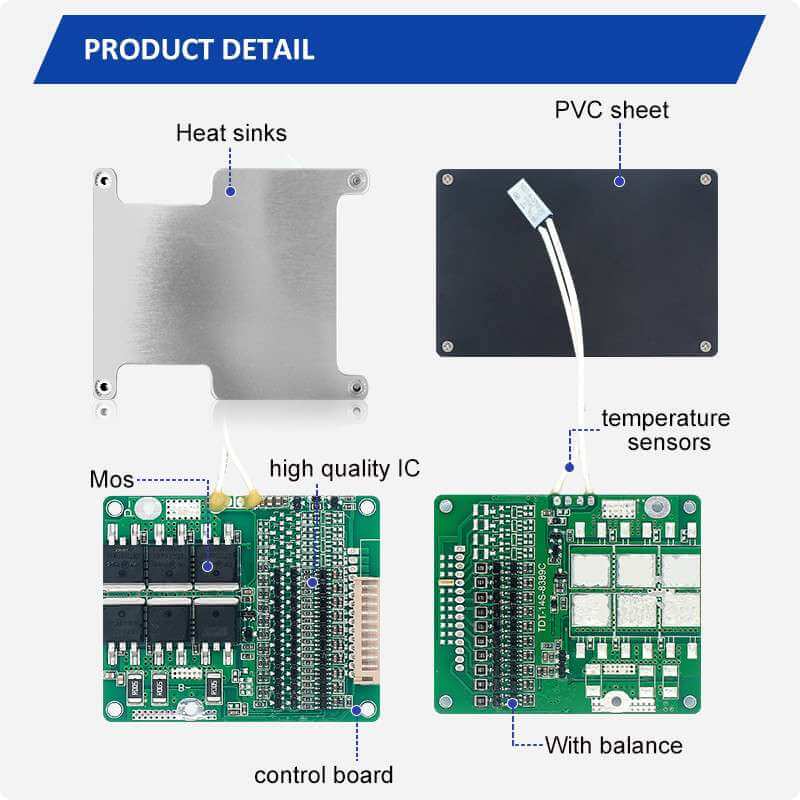

2. The protection board is made of high quality MOS (such as Infineon MOS) and imported IC (Mitsumi) to keep your battery for a longer cycle life.
3. when with a high working current, the high quality aluminum alloy heat sink has a good heat dissipation function.

 Specifications:

Package:
