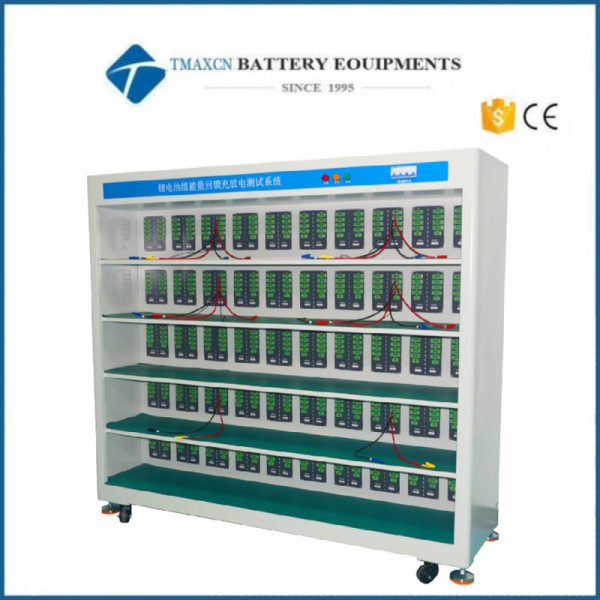

30V 10A Charge 10A Discharge 100 Channel Battery Pack Testing Equipment&Aging Cabinet with Energy-Saving Function

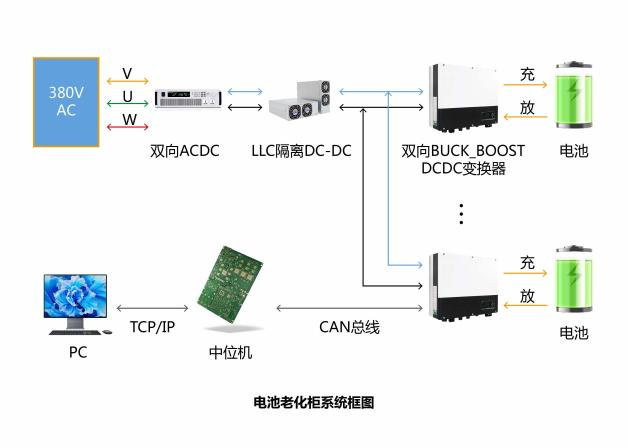

I. Equipment Principle and Composition

outputs the test results required by the client.

1.2 Central Control Unit (CCU): The CCU serves as the central control management software for the device, performing calculations on battery parameters such as capacity and charge level.

1.3 Bidirectional ACDC+LLC Isolated DCDC:  During  charging,  this  module  draws power from the grid, which is then regulated by the bidirectional DCDC to charge the battery. During discharging, it feeds back the energy transmitted by the bidirectional DCDC to the grid.

1.4 Bidirectional DCDC  (Buck/Boost): This non-isolated DCDC module provides all required current and voltage outputs for battery charging and discharging, including constant current charging, constant voltage charging, and constant current discharging.

II. Scope of Application

The system is designed for integrated cycle testing of lithium battery packs, including charging, discharging, functional testing, and data monitoring, and is applied to electric tools, solar energy storage, toy cars, scooters, electric bicycles, electric motorcycles, and home energy storage systems.

III. Equipment Environmental Requirements and Technical Parameters

3.1 Full-unit power supply: AC voltage 380V   ± 10%, frequency 50Hz   ± 10%.

3.2 Ambient temperature: -10 to 45°C;

3.3 The environment is free from strong vibrations, corrosive gases, and flammable or explosive gases.

IV. Feature Introduction

4.1 Charging and Discharging Functions: Features constant current and constant voltage charging, constant current discharging, and battery capacity recording during charging and discharging processes.

4.2 Voltage protection test: Verify the battery's charge and discharge protection functions by performing charge and discharge cycles.

4.3 Safety Protection: Features include anti-reverse connection protection, power failure data protection, support for continuous testing, voltage upper/lower limit setting protection, and safe discharge current protection.

4.4 The  system employs  high-frequency  isolation  technology  to  maintain   complete separation from the power grid, ensuring safe and stable operation.

4.5 The bidirectional AC/DC module employs space vector modulation technology with digital control, achieving high voltage utilization efficiency and reduced current harmonic diversion.

4.6 Enables internal conversion of dual-channel charge-discharge energy;

4.7 The DCDC module employs advanced PID control technology and multiple protection mechanisms to ensure stable operation of the equipment.

4.8 Energy Recycling  (DC  Busbar  Efficiency    ≥ 93%): This  system  enables  energy recycling, allowing battery discharge energy to be fed back into the grid.

4.9 Seamless switching between constant current and constant voltage modes without any voltage/current   surges,   effectively   preventing  battery  tab   debinding   caused  by  heat accumulation from peak currents.

4.10 The voltage and current are sampled using a four-wire system, which ensures high

sampling accuracy and excellent long-term stability.

4.11 Supports barcode input for batteries, with traceable historical test data.

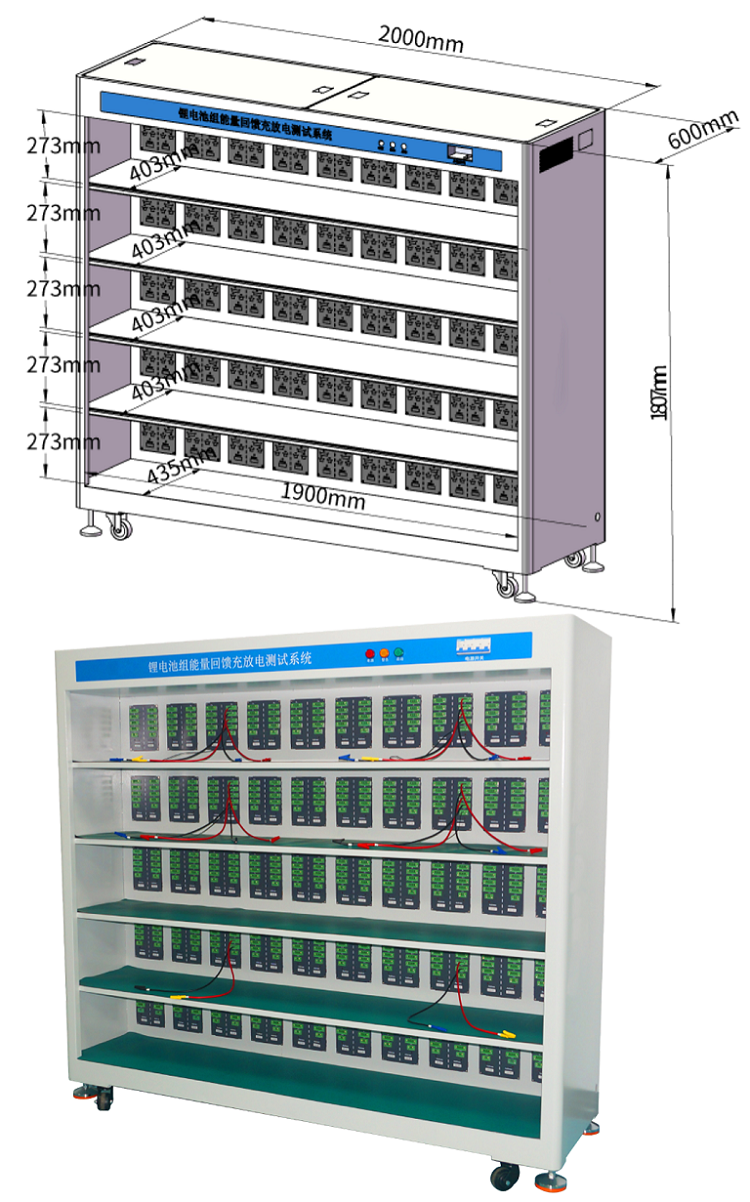

V. Equipment Parameter Description

The image above is for reference only. Please refer to the actual product.

VI. Software and Interface Introduction

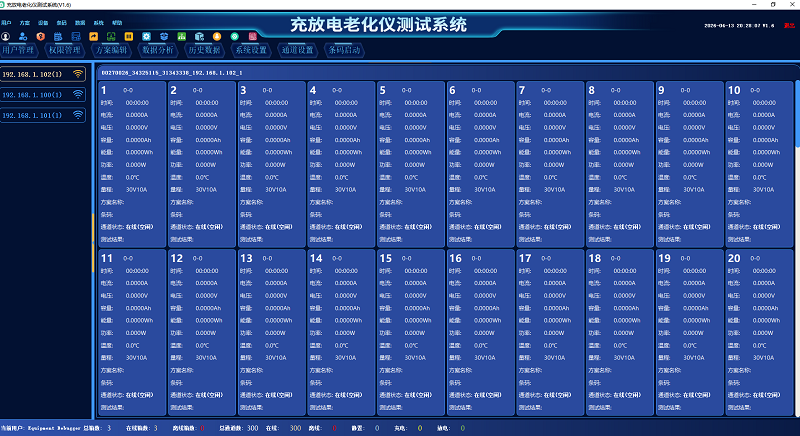

6.1 Main Interface

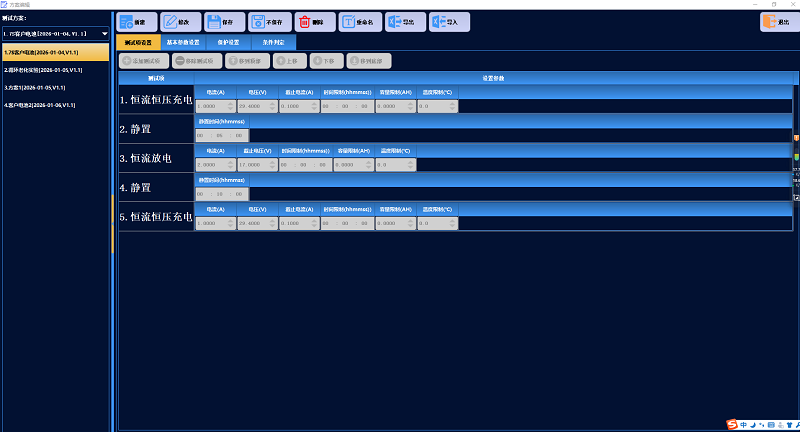

6.2 Plan Setup Interface

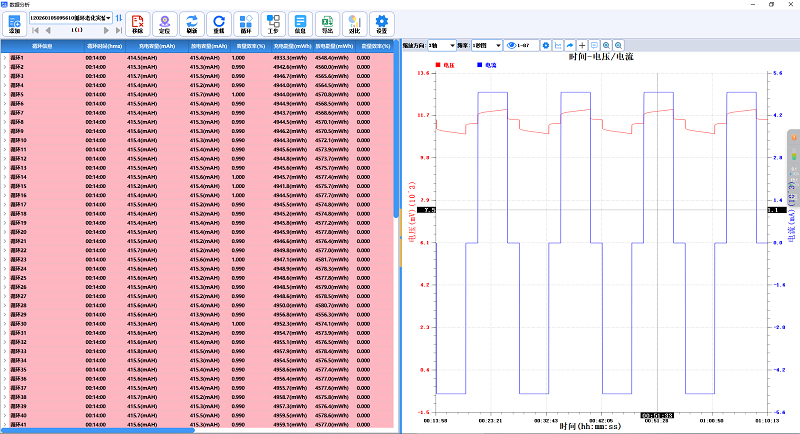

6.3 Test Curve Interface

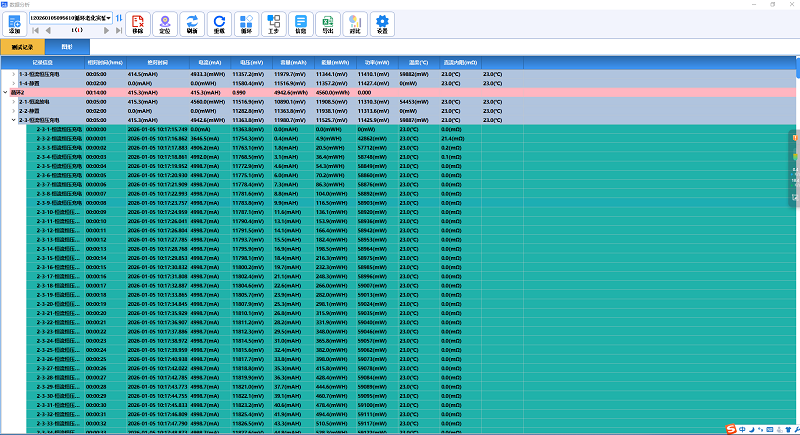

6.4 Detailed Data Interface

VII. Main Configuration List

VIII. Randomized List of Materials

Note: Customers must provide their own computers for testing software, and technical staff will guide the software installation and provide training.

There are some other aging cabinets for options: 30V 5A 100 channels /20V10A 100 channels/ 30V 10A 40 channels/ 30V 20A 40 channels/ 30V 20A 100 channels/ 100V 10A 50 channels/ 60V 20A 50 channels/ 100V 20A 30 channels/ 60V 30A 30 channels; The above is an aging machine with a battery rack.

60V 50A(100V 30A) 30 channels/ 20 channels/ 10 channels/

100V 50A 18 channels/ 12 channels/ 6 channels/

100V 60A（60V 100A) 18 channels/ 12 channels/ 6 channels/

100V 100A 12 channels/ 6 channels

100V 120A（120V 100A) 12 channels/ 8 channels/ 4 channels/

100V 150A 8 channels/ 4 channels
