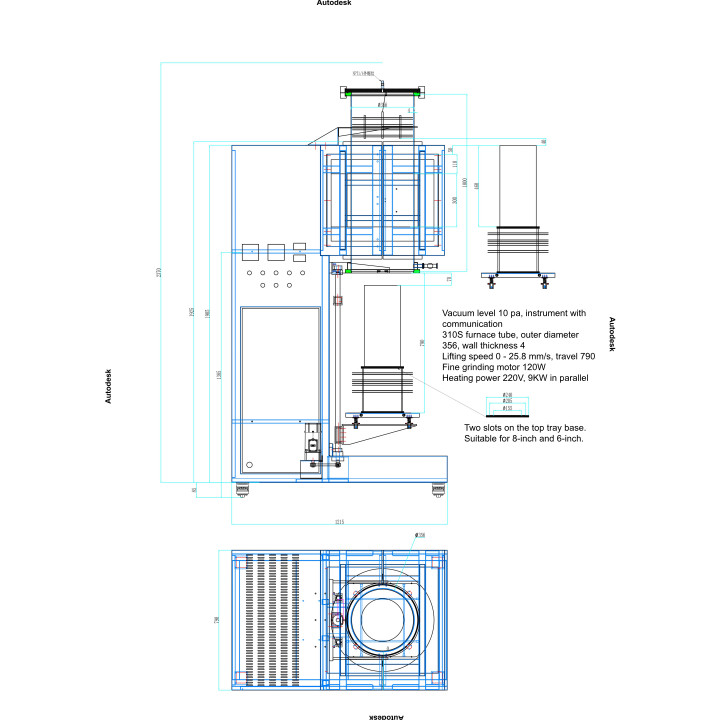

Main parameter	PN: SX2-V-12TP350   Max.design Temp: 1200C Working temperature:0-1100C Tube outer diameter:350mm The heating zone length:300mm Tube material:310S tube Voltage:220V,single phase 60HZ Power:9kw Heating rate:0~20 Degree/Min Max.vacuum: 10pa(cold state) Heating element:Resistance wire Thermocouple:K type Temperature accuracy: ±1℃
Sample loading	The top material tray is electrically adjustable, making it convenient to place and retrieve materials, The pallet is made of copper and features a lifting mechanism with an RS485 interface.
Special requirements	Top air intake, bottom air extraction; the bottom of the heated zone should be flush with the bottom of the workpiece; the workpiece height should be 5cm higher than the top insulation layer; the lifting stroke should be greater than the workpiece height.
Inlet gas/Atmosphere	It can be filled with various protective or destructive gases,Inert gases, mixed gases, nitrogen, oxygen, etc
Gas control	The air inlet can be set up 1 air intakes, each air inlet is provided with a ball valve, connected with a pressure gauge. The air outlet is connected with vacuum pump, and all holes are equipped with ball valves. The maximum positive pressure in the tube does not exceed 0.02Mpa
Furnace Chamber material	Adopt the advanced light alumina ceramic fiber, with excellent thermal insulation effect, light weight, high temperature resistance, The energy saving effect is 60-80% of the old electric furnace.
Furnace shell  structure	Electric furnace shell adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.
Sealing way	Adopt 304 stainless steel cooling flange, with easy loading and unloading, oxidation resistance, acid and alkali resistance, double seal, ensure the sealing
Temperature control	Adopt international advanced touch screen temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.With RS485 port
Vacuum system	Vacuum pump: Two-stage rotary vane pump Vacuum pump ultimate vacuum:10-1Pa Furnace vacuum:10Pa Single-channel vacuum gauge(with RS485) KF25 quick connect, vacuum bellows, vacuum gauge ect
Warranty	One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple and quartz tube damaged by user. Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Standard Package Accessories:
Electric Furnace		1 set
High temperature gloves		1 pair
Crucible tongs		1 pc
310S tube		1 pcs
Stainless steel flange		1 set
Sample Material Rack		1 set
10mm Air pipe		1piece
User manual		1 book
Vacuum pump		1 set
