products

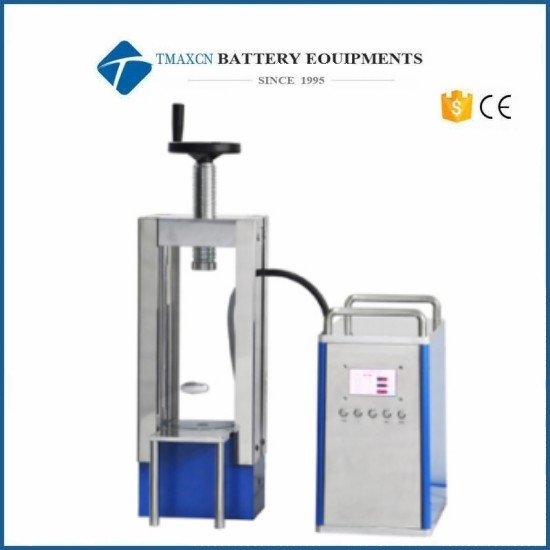

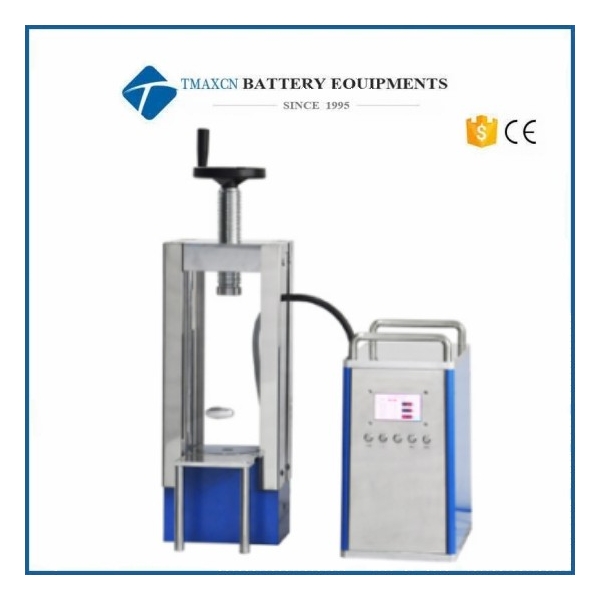

40T Lab Electric Powder Hydraulic Press Machine

Model Number:
TMAX-DYP-40TS
Compliance:
CE Certified
Warranty:
One year limited standard warranty
Payment:
L/C D/A D/P T/T Western Union
Delivery Time:
5 days

WhatsApp : +86 13003860308
Email : David@tmaxcn.com
Email : Davidtmaxcn@gmail.com
Wechat : 18659217588

Previous:
Laboratory 40T Automatic Isostatic Powder Tablet Press
Next:
40T Electric Isostatic Powder Tablet Press

Product Details

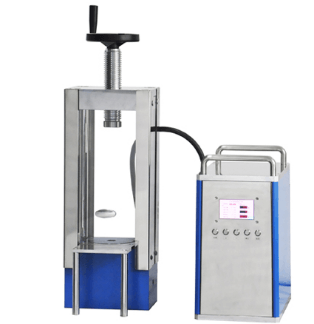

40T Lab Electric Powder Hydraulic Press Machine

A. Parameter

Model	DYP-40TS
Pressure range	0-40T
Piston diameter	Cylinder diameter 130mm(d)
Pressurization process	Program pressurization - program pressure maintenance - timed pressure relief
Compress time	0-999.59 minutes
Pressure conversion	The program automatically converts the pressure on the sample
LCD	4.3 inch LCD screen
Equipment protection	Steel protectionwith plexiglass door
Cylinder stroke	50mm (T)
Space size	160300mm(MN)
Dimensions	500700800mm(LWH)
Device power	220V(50Hz/60Hz)
Equipment weight	200kg

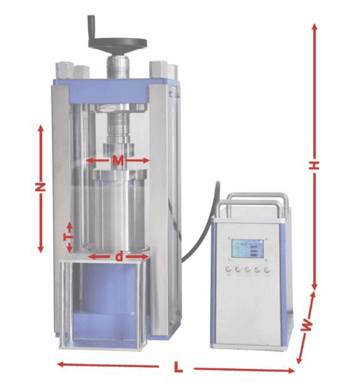

Tablet press size diagram

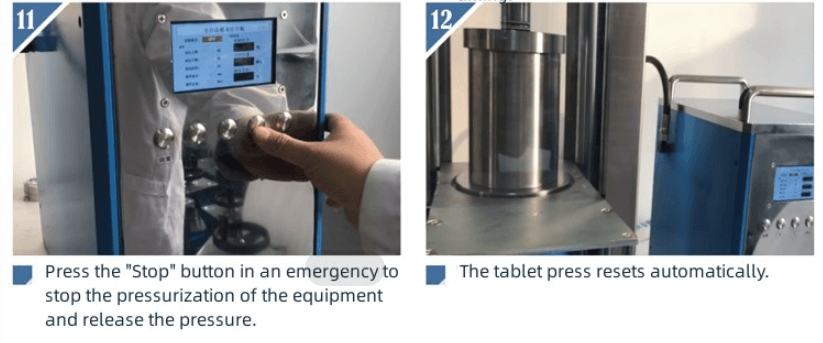

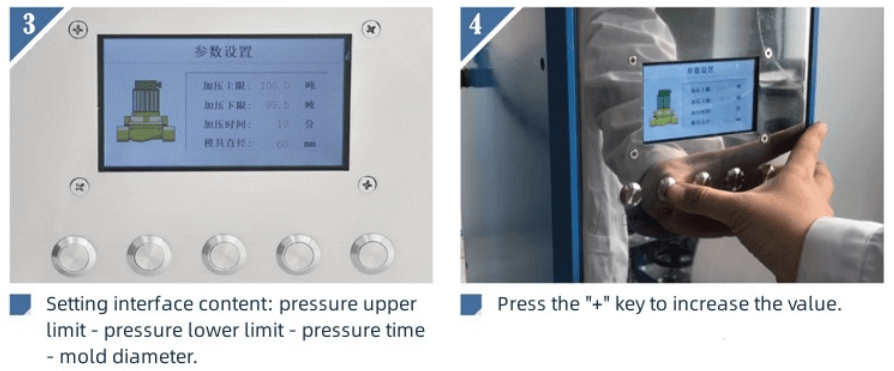

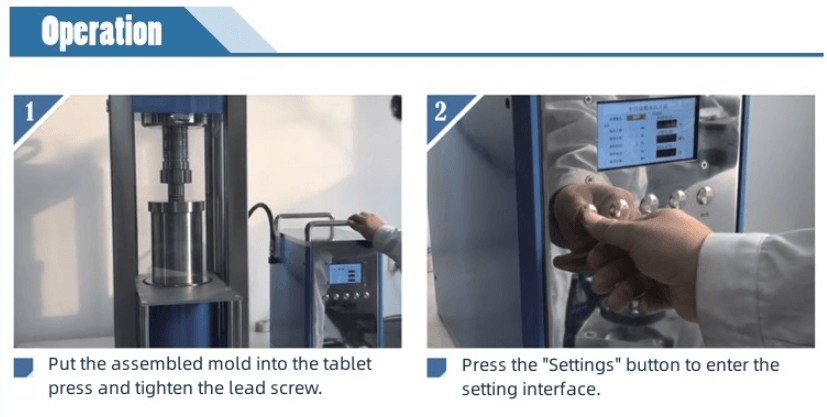

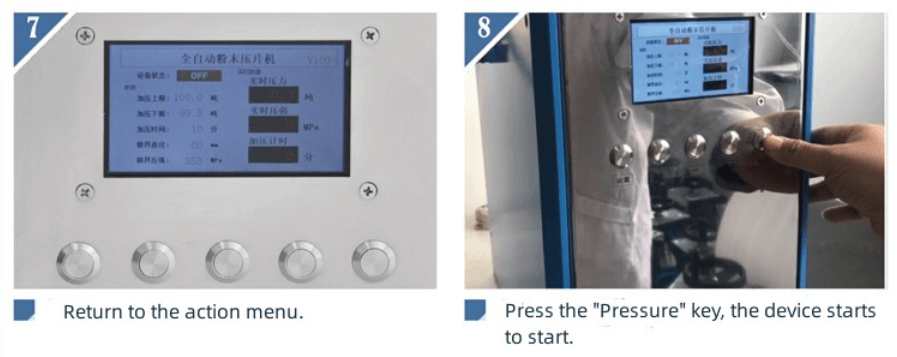

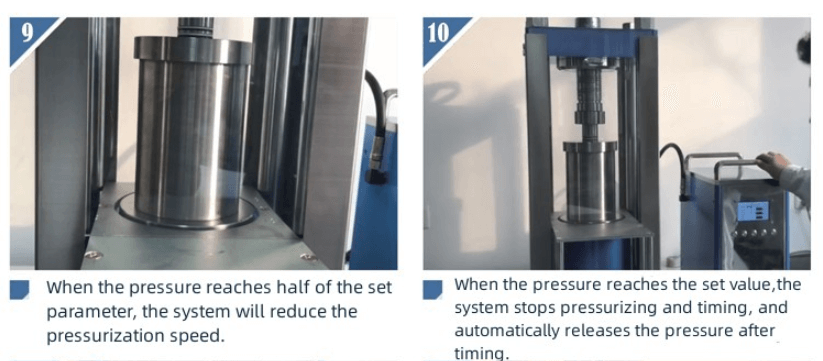

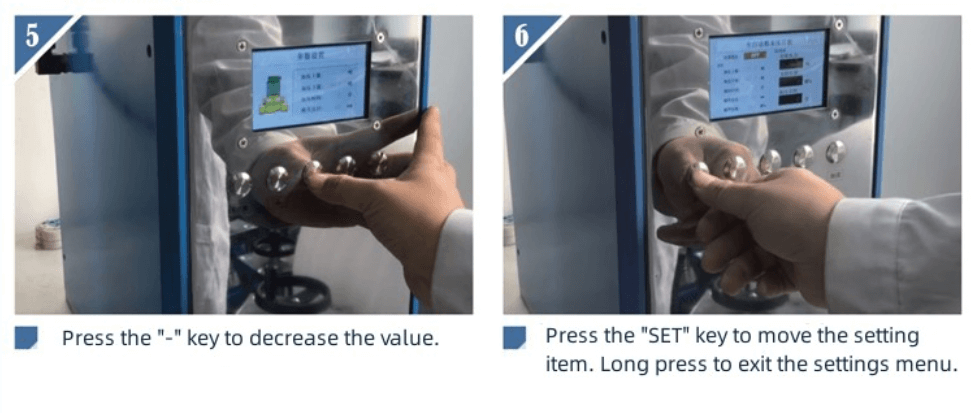

B. Operation
