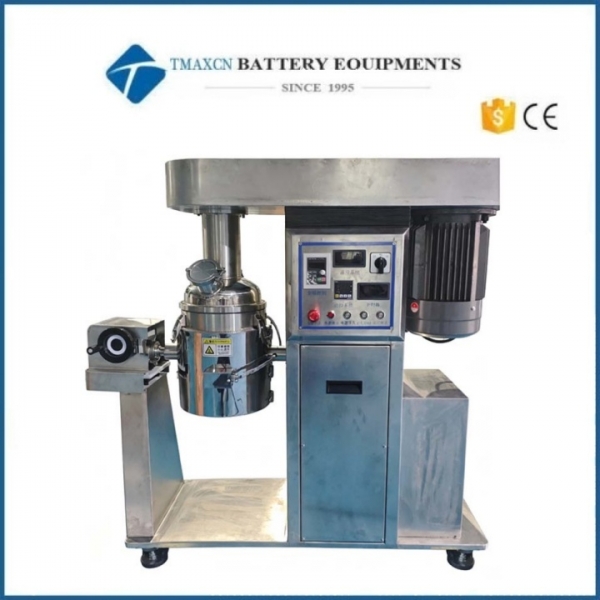

5-15L High Speed Disperser Optional Open and Sealed Designs for Premixing and Emulsifying

JT-GS-10

Equipment model

Model：JT-GS-10

Motor configuration

Drive: Single-phase 220V, 50Hz

Power: 0.75 KW

Motor speed: 0 - 6000 rpm (variable frequency speed control, power 0.75 KW)

Equipment connector

You can choose between open type and sealed type. The shell material can be either stainless steel or carbon steel with painted finish.

Dispersion form

Different types of mixing paddles can be selected according to the materials, such as dispersion discs, three-blade paddles, conical paddles, etc. Some models also come with emulsification heads.

Shaft bearing

NSK products feature bearing housings with upper and lower retaining covers for sealing, ensuring no oil leakage over an extended period.

Fixing method

The mixing bucket is securely locked in position, making it convenient, simple and safe.

Lifting form

Electric lifting. Internal guide rail type, no risk of dust accumulation. Equipped with up and down buttons, allowing manual adjustment of the equipment's ascent, stop, descent, etc. operations.

Container part

Capacity: 5L - 15L (optional), double-layer structure, optional with cold water jacket

Material: Imported stainless steel SUS304, inner and outer polished and ground treatment

Optional bottom valves and side wall flat valves, etc.
