Product Details

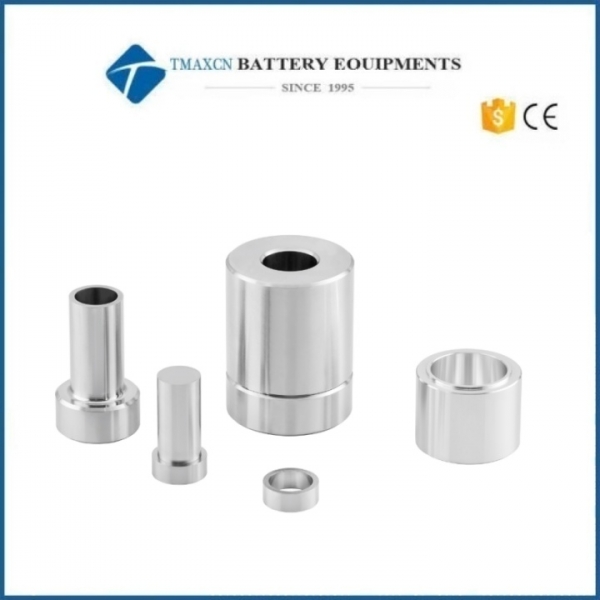

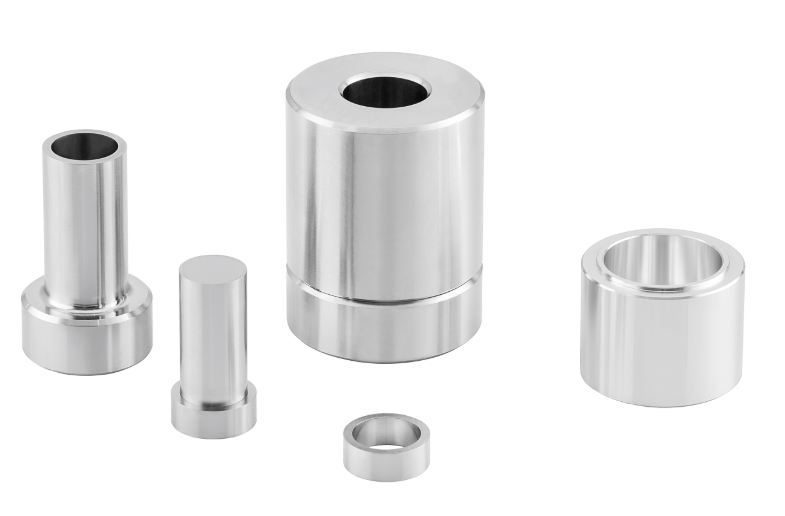

5 to 40mm Lab Ring Press Dies
Instrument Model |
PMO-A |
Pressed sample shape |
|
Mold material |
Alloy tool steel: Cr12MoV |
Indenter hardness |
HRC60 - HRC62 |
Sample size |
Φ5-40 mm (M) |
Cavity depth |
30~40 mm (N) |
Overall dimensions |
Φ43~73 mm × 120mm (L × H) |
Mold weight |
1.5kg |

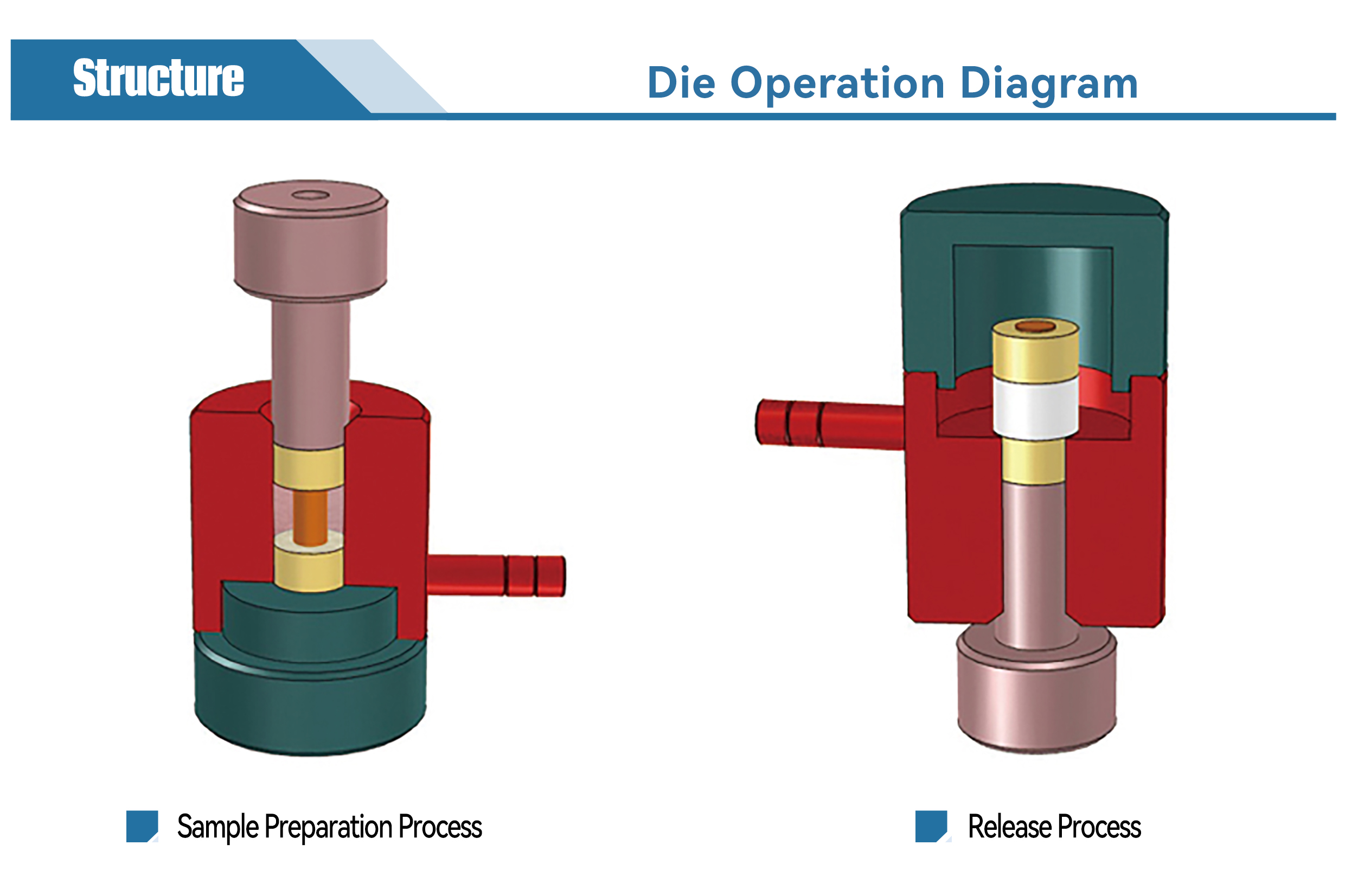

Dimension diagram |
|
