vacuum mixer machine

5L Planetary Vacuum Mixing Machine for Various Material Mixing

  • Model Number:

    TMAX-PVM-5L
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

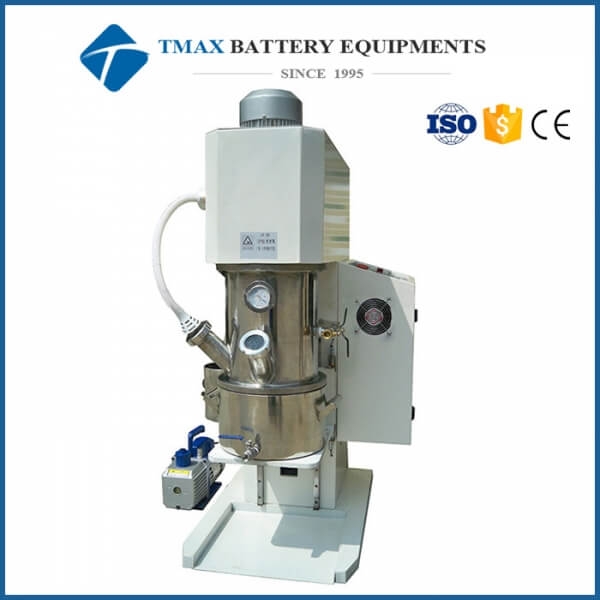

5L Planetary Vacuum Mixing Machine for Various Material Mixing


1. This TMAX-PVM-5L Planetary vacuum mixer machine is a set of vacuum mixing, dispersion equipment, suitable for lithium electricity experiment process is anode paste mixing process, solder paste, silica gel, chemical industry, etc

2. This lab planetary mixer Mixing motor adopts transmission frequency adjustment, can choose different rotational speed according to different process, different viscosity.

3. The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble.


Features

1. Adopt the industry leading soft sealing process, which can maintain the state of - 0.098mpa for more than 24 hours;

2. Adopt double precision guide pillar support, cylinder to push can body open and close, humanized design, precise and efficient;

3. The barrel body is made of 304 stainless steel with high quality. After finishing by large horizontal lathe, it is polished by precision automatic polishing machine to ensure high precision;

4. Double dispersing paddle design, make the material up and down and all around billow, make the slurry mix quickly and evenly;

5. The mixing motor adopts gearbox frequency conversion adjustment, and can select different speed and torque according to different process and viscosity;


Specifications

Model

 Planetary Vacuum Mixer  TMAX-PVM-5L

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

3500W

Dispersion speed

0-1400RPM, Through the inverter speed control

Mixing speed

0-70RPM

Effective volume

5L

Design volume

9L

Mixing barrel opening mode

The gearbox drives the barrel up

Mixing barrel size

Φ260mm*180mm H

Mixing time set

It has timing function, and can set time 0-99 (H) at will. It can stop running automatically and keep vacuum state

Weight

350kg

Dimension(H*L*W)

1.1m L×0.7m W×1.3m H

Warranty

One Year limited warranty with lifetime support
