5PPI-200PPI Copper Foam Aperture Can be Customized Cu Metal Foam
Model Number:
TMAX-Foam3Compliance:
CE CertifiedPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
2 days
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : Wechat 18659217588
Previous:
Porous Cu Metal Foam Copper Foam Sheet Porosity Can be CustomizedNext:
80um Ultra Thin Copper Foam Cu Metal Foam for Laboratory Research

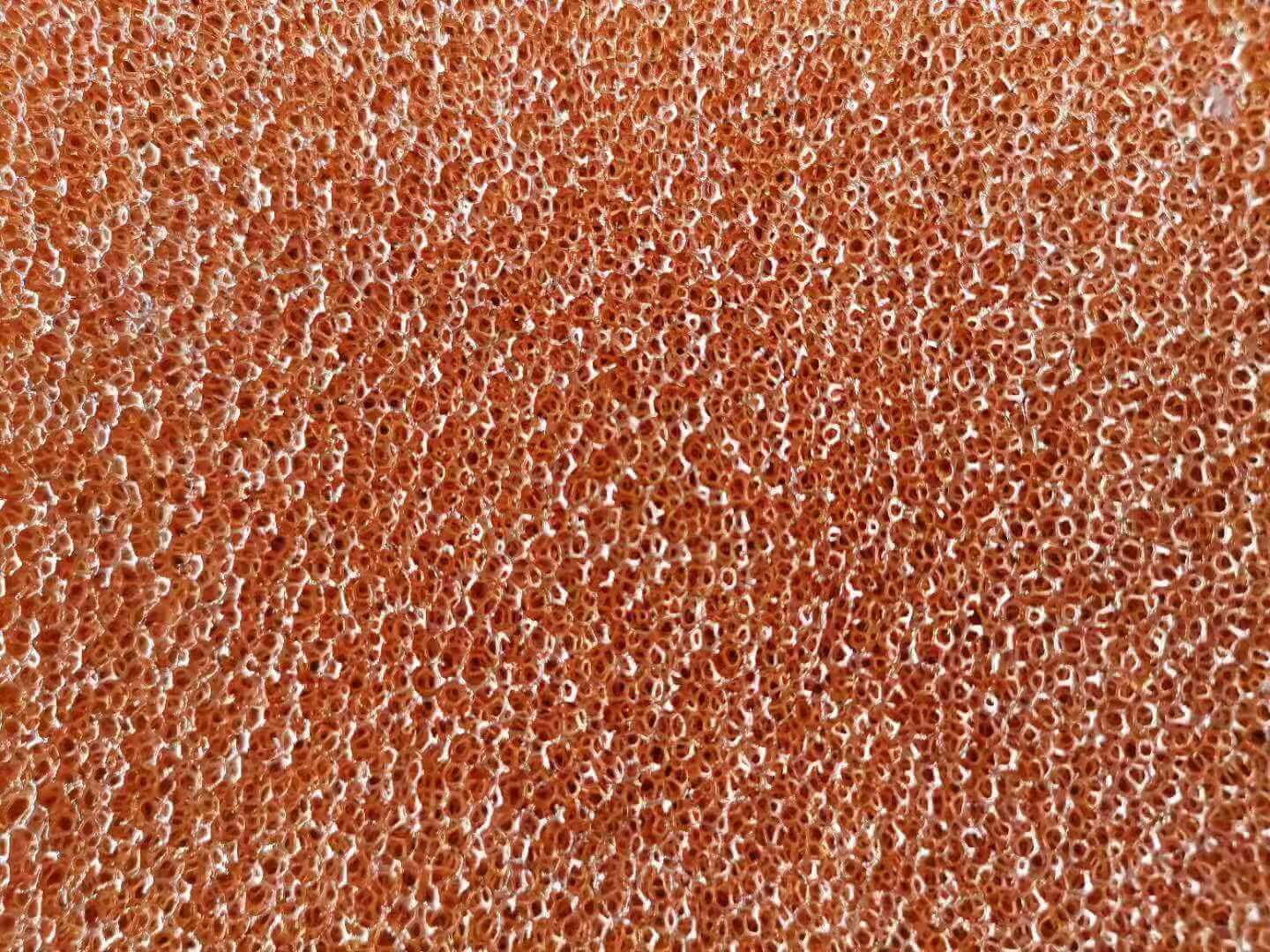

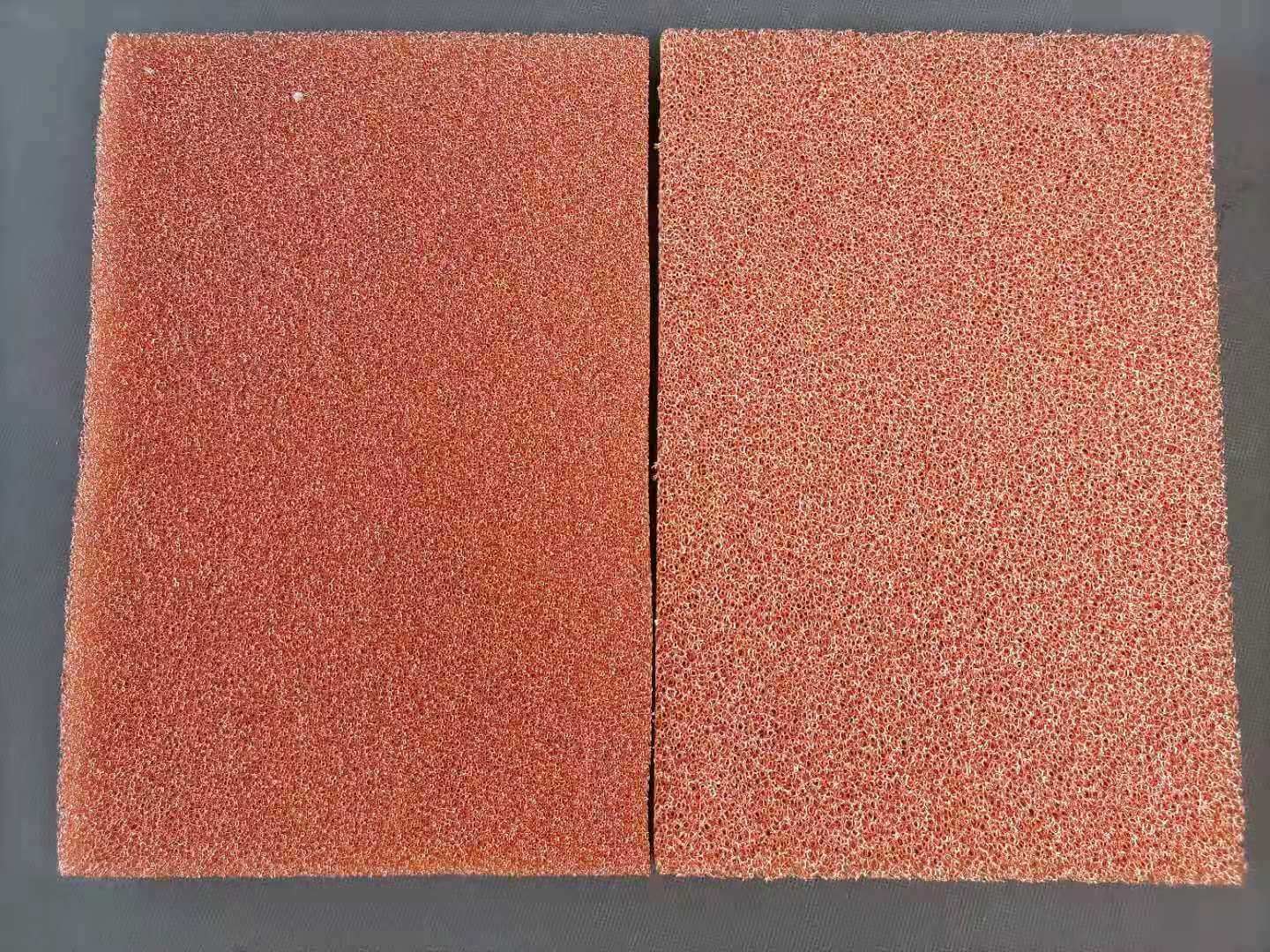

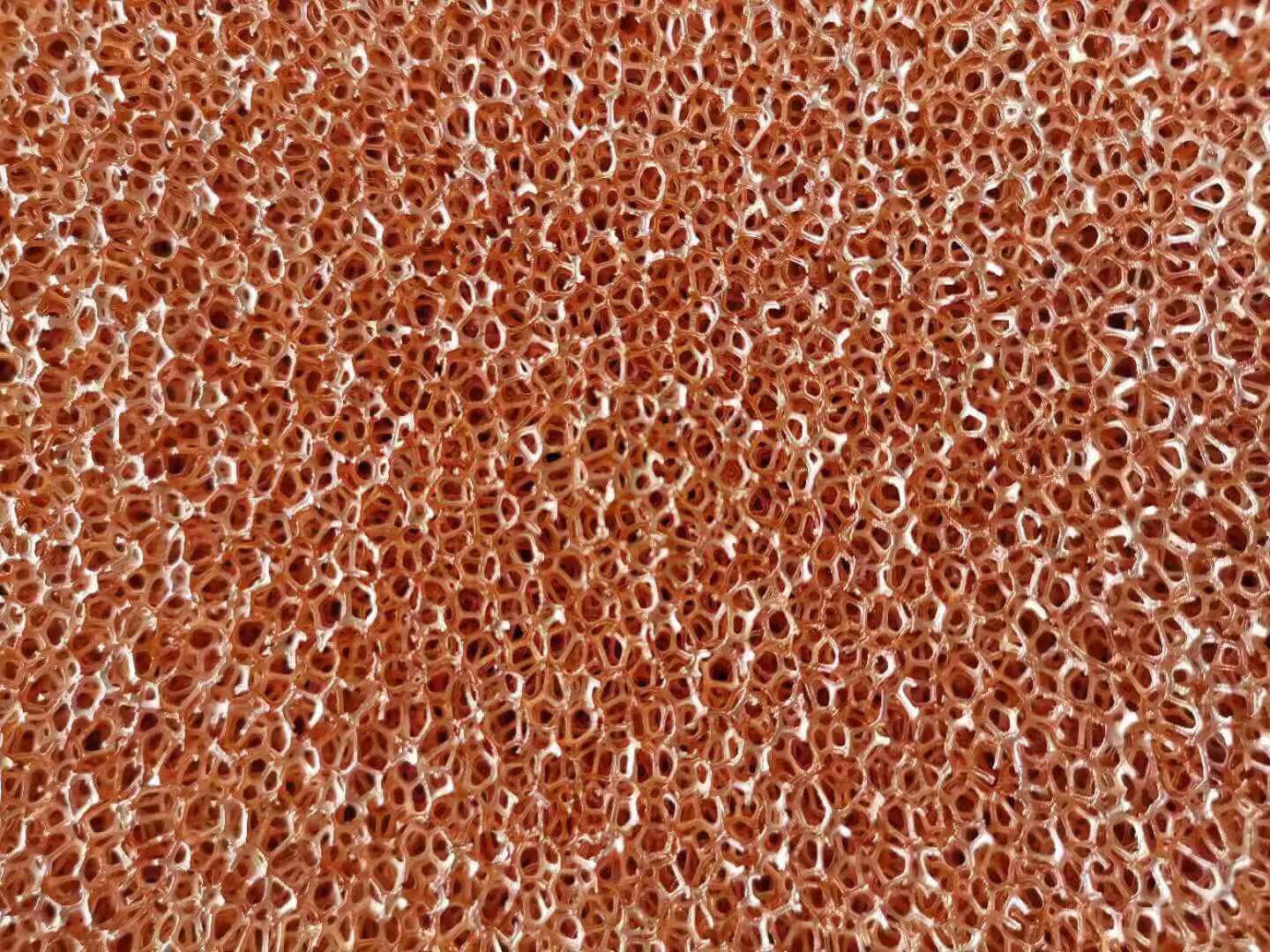

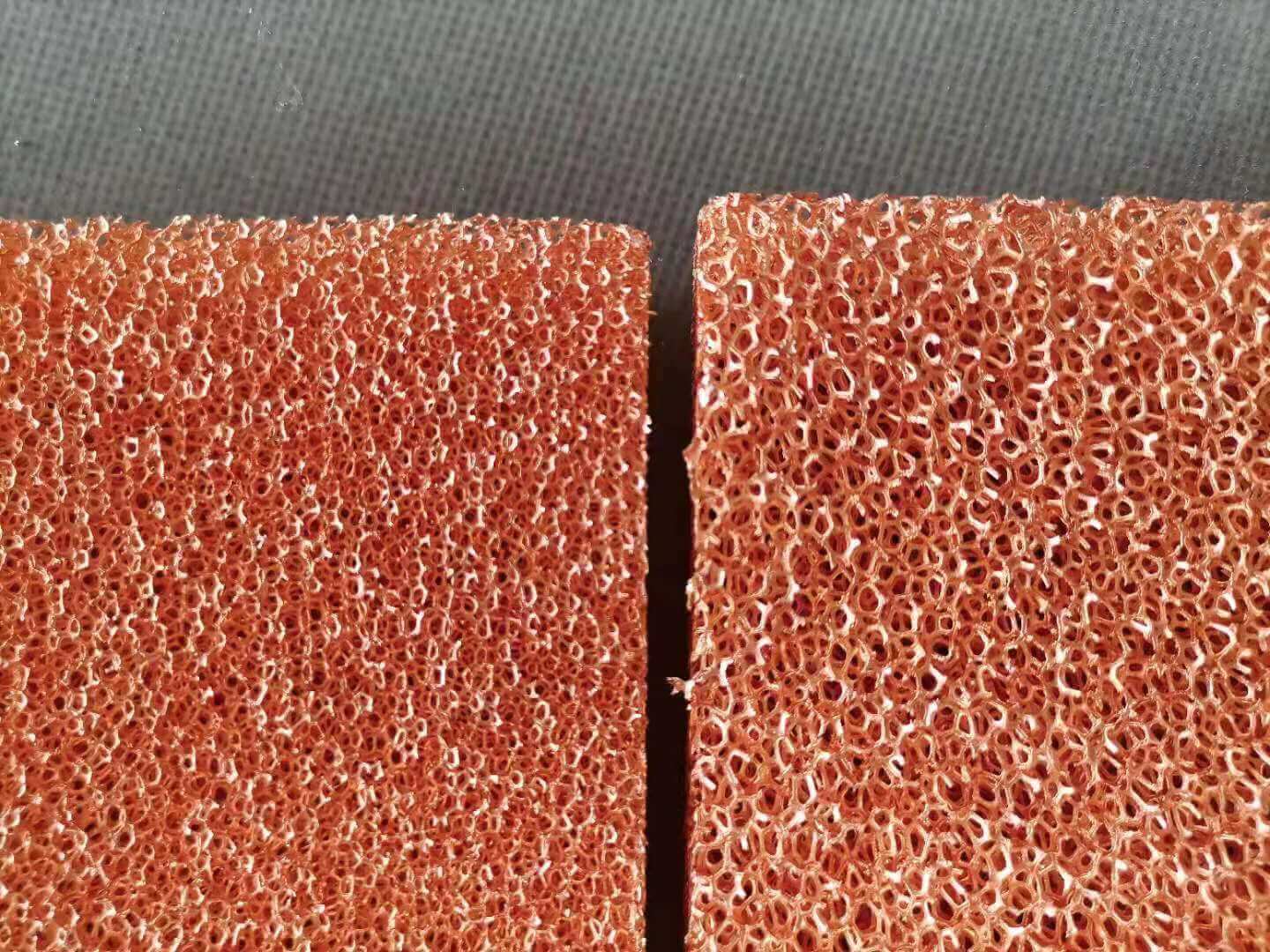

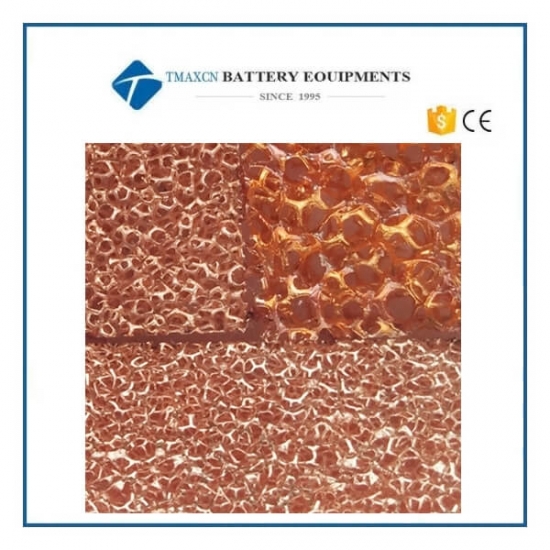

5PPI-200PPI Copper Foam Aperture Can be Customized Cu Metal Foam
Product Details
1. Copper foam has great function of conducting heat and electricity, which can
be used as the electrode substrate of lithium ion battery or fuel cell or
Nickel zinc battery and electric double layer capacitor electrode material.
2. The copper foam can be also used as Heat sink materials, heat absorption
materials, chemical catalyst carrier, electromagnetic shielding materials,
filtration materials, damping materials, battery electrode materials,
deadening, high-grade decorative materials.
Type
Open cell
Purity
> 99%
Form
Sheet or Roll, depending on size & thickness

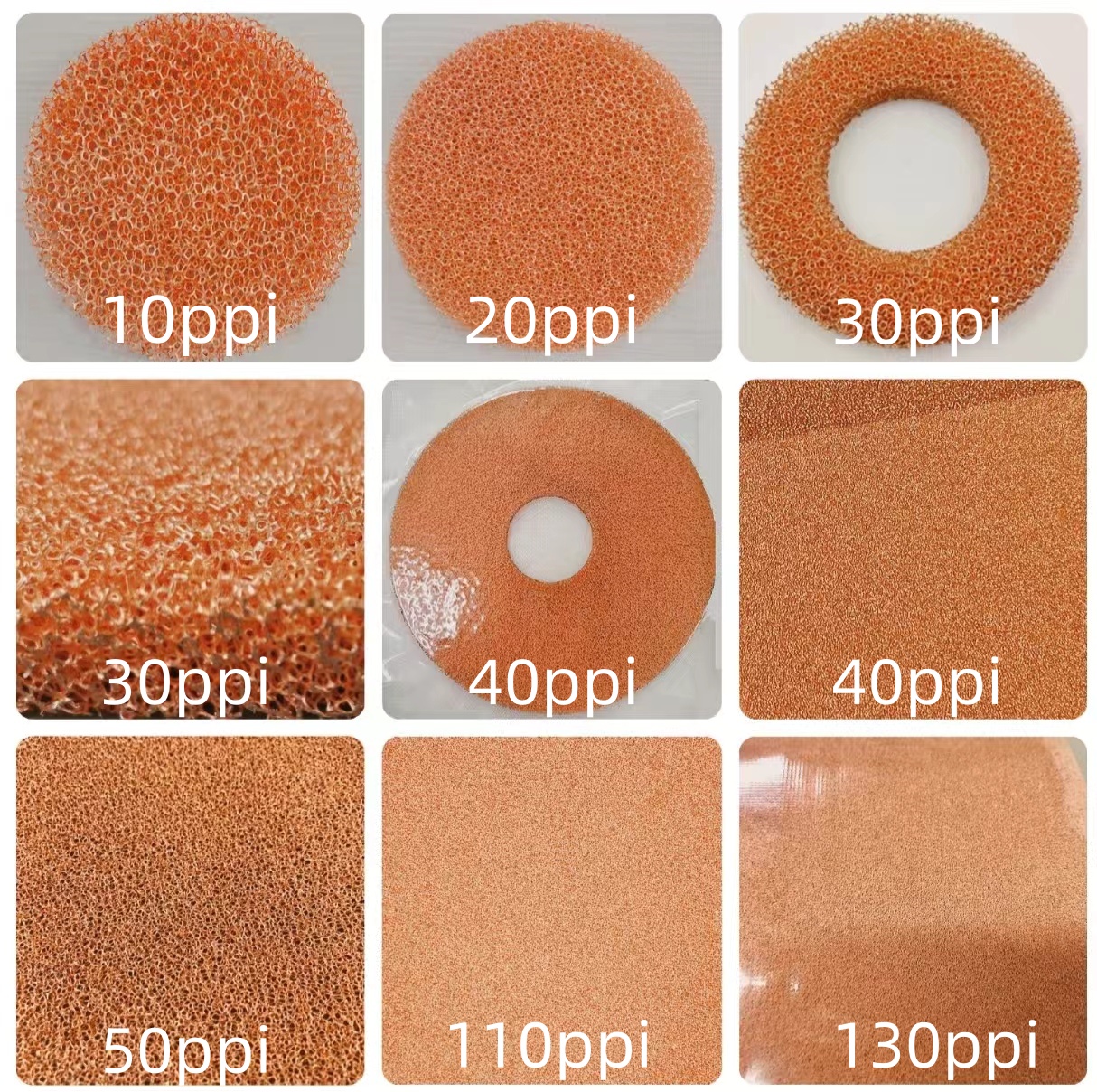

Cell Size (PPI)
10-150PPI, as per request
Thickness
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request
Size & Shape
Standard: 500*500mm/ 200*300mm; can be made in different shape as per request
Porosity
95%-98%
Open Cell Rate
≥98 %
Volume Density
>0.1g/cm3, as per request
Surface Density
200-2500 g/m ^2, as per request
Thermal Conductivity (Theoretical)
>6W/M.K
Mechanical Strength (Theoretical)
≥2.5MPa
Tensile Strength (Theoretical)
5-18MPa
Product Details
1. Copper foam has great function of conducting heat and electricity, which can be used as the electrode substrate of lithium ion battery or fuel cell or Nickel zinc battery and electric double layer capacitor electrode material.
2. The copper foam can be also used as Heat sink materials, heat absorption materials, chemical catalyst carrier, electromagnetic shielding materials, filtration materials, damping materials, battery electrode materials, deadening, high-grade decorative materials.
Type |
Open cell |
Purity |
> 99% |
Form |
Sheet or Roll, depending on size & thickness |
Cell Size (PPI) |
10-150PPI, as per request |
Thickness |
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request |
Size & Shape |
Standard: 500*500mm/ 200*300mm; can be made in different shape as per request |
Porosity |
95%-98% |
Open Cell Rate |
≥98 % |
Volume Density |
>0.1g/cm3, as per request |
Surface Density |
200-2500 g/m ^2, as per request |
Thermal Conductivity (Theoretical) |
>6W/M.K |
Mechanical Strength (Theoretical) |
≥2.5MPa |
Tensile Strength (Theoretical) |
5-18MPa |
Dimension (Thickness* Length*Width)
80um*200mm*300mm
0.1 to 0.2mm*200mm*300mm
0.3 to 0.5mm*200mm*300mm
1mm*200mm*300mm
2mm*200mm*300mm
3 to 5mm*200mm*300mm
6mm*200mm*300mm
8mm*200mm*300mm
10mm*200mm*300mm
20 to 35mm*200mm*300mm
35 to 55mm*200mm*300mm
The size can be customized
80um*200mm*300mm
0.1 to 0.2mm*200mm*300mm
0.3 to 0.5mm*200mm*300mm
1mm*200mm*300mm
2mm*200mm*300mm
3 to 5mm*200mm*300mm
6mm*200mm*300mm
8mm*200mm*300mm
10mm*200mm*300mm
20 to 35mm*200mm*300mm
35 to 55mm*200mm*300mm
The size can be customized
