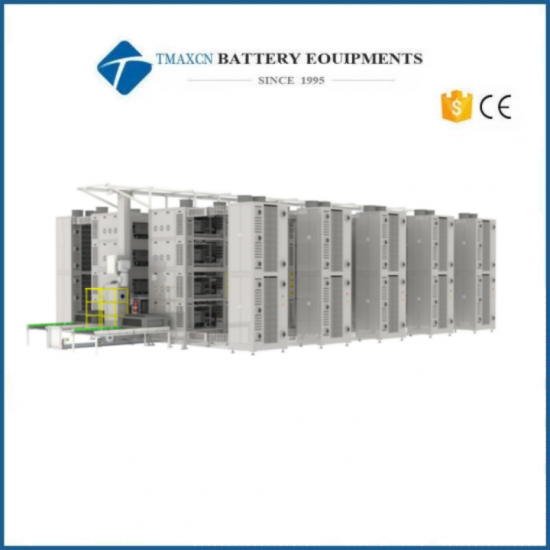

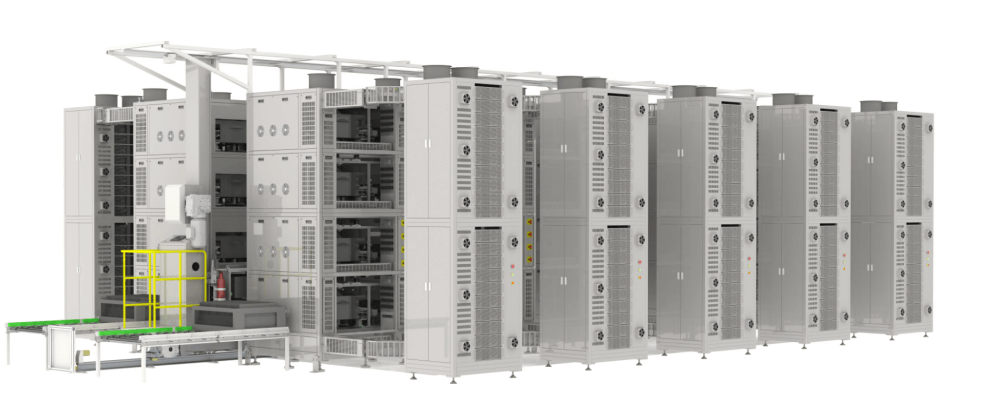

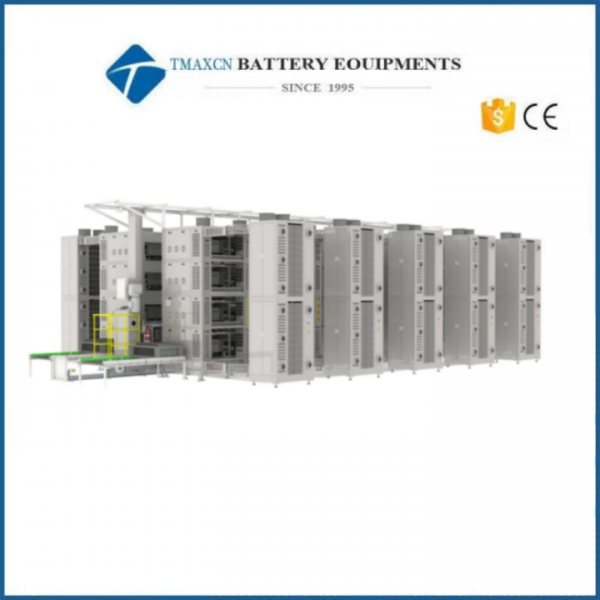

5V 30A/60A/80A/120A/200A/300A Prismatic Cell Automatic Negative Pressure Formation and Grading Machine

I. Advantages and Characteristics

1. Safety protection: quadruple protection (temperature, smoke sensing, sprinkler, fire water tank)

2. Structural design: Divided into a separate capacity cabinet and power cabinet design, with multiple protection and automatic fire door design

3. Automatic loading and unloading method of the stacker, efficient mass production

4. Data processing: Software independently developed, interacting with MES, WMS, WCS system data, with strong plasticity

II. Performance parameters

Capacity: ≥ 24PPM (customizable)

Battery size: 15-71mm thick, 148-175mm long, 100-207mm high

Negative pressure range: -90Kpa~0Kpa

Negative pressure control method: high and low double negative pressure control/proportional valve control method

Probe temperature rise: ≤ 15 ℃ (below 120A), ≤ 20 ℃ (below 200A)

Temperature uniformity of storage location: ± 3.0 ℃

Power parameters: 5V 30A/60A/80A/120A/200A/300A (customizable)

Current response time: ≤ 10ms

Power supply accuracy: ± 0.05% F.S

Energy feedback: ≥ 78%

III. Production Process
