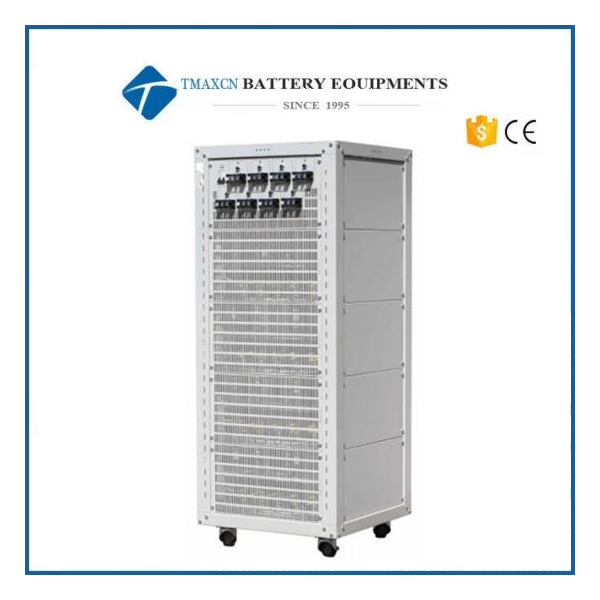

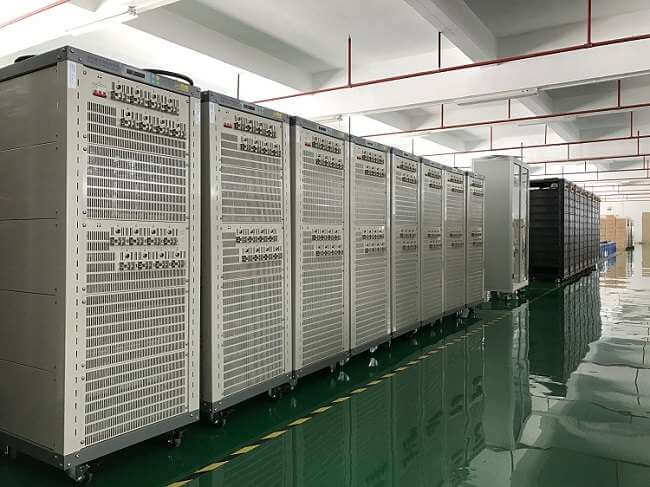

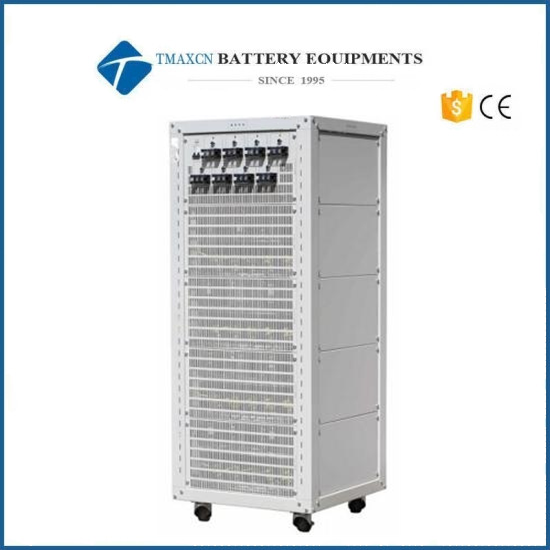

Project index

Parameter index

Input Power

AC 480V± 10% / 50Hz     Three Phase

resolution

AD：16bit；DA：16bit

Input Resistance

≥ 1MΩ

Input Power

14177W

Channel Features

Constant Current Source and Constant Voltage Source withIndependent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Per Channel Voltage Range

25mV~5V

Discharge Min Voltage

0V

Accuracy

± 0.1% ofFS

Stability

± 0.1% ofFS

Current

Per Channel Current Range

1A~200A

Stop Current

0.4A

Accuracy

± 0.1% ofFS

Stability

± 0.1% ofFS

Power

Per Channel Output Power

1000W

Stability

± 0.2% ofFS

Time

Current Response Time

20ms (0-FullRange)

Step Time Range

≤(365*24 )hour/step，

Time Form Support 00：00：00(h、min:s、ms)

Data

Recording

Record Condition

Time△T：100mS

Voltage△U：10mV

Current△I：400mA

Record Frequency

10Hz

Charge

Charge Mode

Constant Current Charge、Constant Voltage Charge、

Constant Current and Constant Voltage Charge、CPC

End Conditon

Voltage、Current、Relative Time、Capacity、-△V

Discharge

Discharge Mode

CCD、CPD、CRD

End Condition

Voltage、Current、Relative Time、Capacity

Pulse

charge

CCC、CPC

Discharge

CCD、CPD

Min Pulse Width

500ms

Automated Switch

Automated swith from chargeto discharge for each pulse

End Condition

Voltage, Test Time

AUX

Channel

Temperature Range

-25C~ 110C

Temperature accuracy

±1C

Temperature Resolution

0.1C

Cycle

Loop Measure Range

1~65535times

Max Steps Per Loop

254

Nested Loop

Nested loop Function，Max Support 3 Layers

Protection

Software Protection

    Power-down Data Protection

    Off-line Testing Function

    Setting Protection Condition，Setting Parameter：Low Voltage limit、Upper

Voltage limit、Low Current limit、Upper Current limit、Delay Time

Hardware Protection

Have Anti-reverse Protection Function

Voltage and Current Testing Sample

4-wire connecting

Noise

<85dB

Database

MySQL Database

A Means ofCommunication ofUpper Machine

TCP/IP Protocol

Data Output

EXCEL2003/2010、TXT

Communication Interface

Ethernet Port

Per UnitMain Channels No.

8

Dimensions

36U27"，860*600*1780(mm)

Working Temperature Range

0℃~40℃

Storage Temperature Range

-10℃~50℃

Working Environment Relative Humidity Range

30% ~ 80% RH

Storage Environment Relative Humidity Range

30% ~ 90% RH
