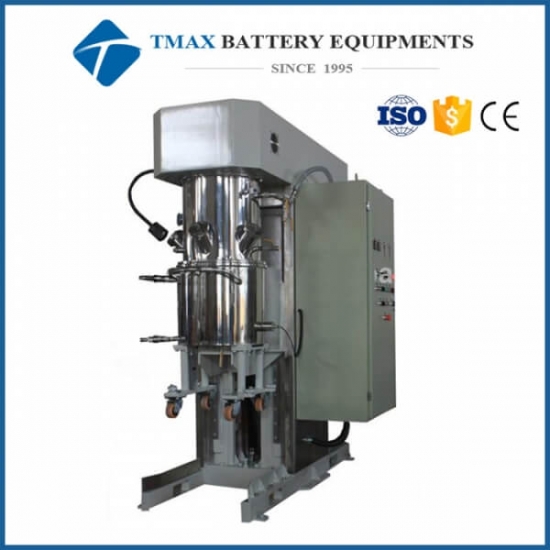

60L Planetary Vacuum Mixing Machine

I. Equipment Features

Application Scope

l This device is suitable for mixing and dispersing powders and liquid materials (including positive electrode active material powder, negative electrode material powder, binder solution, solvent, etc.) required for electrode slurry in the production process of various common batteries (such as lithium-ion batteries, nickel hydrogen batteries, etc.), ensuring that the materials are fully fused and ultimately obtaining battery slurry with uniform composition and stable texture. Especially when dealing with high viscosity systems (such as high solid content slurries, viscous slurries containing thickeners, etc.), it performs well and can effectively cope with the characteristics of poor flowability and difficult mixing of such materials, ensuring dispersion effect and mixing uniformity, and meeting the production needs of high viscosity process scenarios.

l Applicable viscosity range: ≤1,200,000 cP

II. Main Equipment Parameters

Lower Barrel Component

l Design Volume: 88L

l Effective Volume: 29–60L

l Inner Diameter: 500mm

l Inner Depth: 450mm

l Material: 304 stainless steel (contact parts)

l Jacket Type: Single-layer jacket on barrel wall and bottom, for cooling/heating

l Jacket Interface: G3/4", with quick-release couplings; pressure ≤0.4 MPa

l Circulation System: Supplied by customer; recommended inlet temperature ≤8°C, flow >30L/min

l Discharge: G1-1/2" three-piece ball valve at barrel bottom

l Ambient Temperature: -10 to +120°C

l Mobility: Caster-mounted

Stirring Component

l Working Frequency: 5–50 Hz

l Power: 7.5 kW

l Paddle Speed: 6–60 rpm

l Planetary Speed: 3–35 rpm

l Paddle Diameter: 286mm

l Paddle Type: Tapered spiral twist type with 90° helix

l Material: 304 stainless steel

l Linear Speed: 0.1–1.0 m/s

l Number of Paddles: 2

l Distance Between Paddles: 4.6±2.5mm

l Distance to Barrel Wall: 3±1.5mm

l Distance to Barrel Bottom: 4±1mm

Dispersing Component

l Working Frequency: 5–56 Hz

l Power: 11 kW

l Speed: 315–3530 rpm

l Disc Diameter: 110mm

l Disc Type: Serrated

l Material: 304 stainless steel

l Linear Speed: 2–20 m/s

l Number of Discs: 4

l Number of Shafts: 2

Scraper Component

l Scraper Frame Material: 304 stainless steel

l Scraper Blade Material: PTFE (Teflon)

l Scraping Speed: Same as planetary speed

l Removable: Yes (must be removed for high-viscosity processing)

Base & Lifting Component

l Material: High-rigidity structural carbon steel

l Lifting Method: Electric

l Guide System: High-precision linear rail

l Lifting Stroke: ≤570mm

Upper Barrel Component

l Material: 304 stainless steel

l Powder Inlet: Quick clamp DN100 with 90° sight glass – 1

l Liquid Inlet: ISO 1" quick coupling – 1

l Spotlight Port: DN75 tempered glass sight window – 1

l Vacuum Port: G3/4" – 1

l Exhaust Port: G3/4" – 1

l Spare Port: G3/4" – 1

l Vacuum Gauge Port: M14×1.5 internal metric thread – 1

Control System

l Electrical Cabinet: Houses inverter and low-voltage components

l Manual Panel: For mounting buttons, knobs, meters

l Power Supply: AC 3×380V±5%, 50Hz

l Control Mode: Electrical + Hydraulic

l Drive & Speed Control: Inverter-driven

l Cooling Method: Air and liquid cooled

l Operation Method: Button + knob on cabinet panel

l Digital Temp Display: Material temperature

l Emergency Stop Button: 1

l Alarm System: Over-temp alarm, shutdown, alarm mute

l Speed Display: Displayed on panel meter

l Power Indicator: 1

l Timer: 1 unit for both dispersing and stirring

l Note: If HMI is selected, control functions are integrated into the touchscreen

Safety Interlock System

l Emergency Stop: Shuts down equipment immediately; all operations disabled

l Low-Speed Stirring Startup: Barrel can rotate while lifting

l High-Speed Dispersion: Only enabled after barrel is fully lifted

l Operation Lock: Barrel cannot be lowered or opened while mixing

l Vacuum Backflow Protection: Special vacuum buffer tank prevents pump oil backflow

l Fault Protection: Inverter provides overload, overcurrent, overvoltage, leakage, and phase loss protection

l Lifting Control: Barrel can only rise after reaching designated position

l Vacuum Check: Cannot descend until vacuum is released

l Dispersion Start Interlock: Enabled only after full barrel lift

l Anti-Drop Lock: Lock system prevents barrel from dropping during operation

l Dry Mixing Mode: Stirring paddles rotate during barrel lift

Other Notes

l Temperature Probe: Pt100

l Measurement Method: Mounted on barrel wall

l Bearings: High-speed – imported; low-speed – domestic

l Seals: Static – O-rings; dynamic – mechanical seal (domestic)

l Lubricating Grease: Domestic brand

l Seal Oil: Imported

l Hydraulic Cylinder & Station: Domestic brand

l Valves: Domestic brand

l Vacuum Requirement: Customer to supply; evacuation rate 8L/S (2X-8)

l Vacuum Holding: -0.098 MPa, maintaining >-0.085 MPa over 24h without leakage

l Total Power: >18.5 kW

l Weight: Approx. 1450 kg

l Dimensions: L2050mm × W1120mm × H2090mm

l Color: Off-white

l Floor Load: 1500 kg/m²
