Equipment model

TMAX-60V100A-04H

Communication method

TCP/IP (Ethernet)

Energy feedback efficiency

The highest efficiency for energy-saving during charging is 85%, and the highest feedback efficiency during discharge is 92%.

Charging voltage

DC 0-60V: Voltage range available for detection and setting during charging, with a maximum voltage of 100V.

Discharge voltage

DC 60-10V: Voltage range available for detection and setting during discharge, with a minimum voltage of 10V.

Charging current

DC 1-100A: Current range available for detection and setting during charging, with a maximum current of 50A.

Discharge current

DC 1-100A: Current range available for detection and setting during discharge, with a maximum current of 50A.

Voltage accuracy

±（0.1%RD + 0.1%FS）

Current accuracy

±（0.1%RD + 0.1%FS）

Voltage resolution

10mV: The smallest unit used by the equipment for detecting or setting voltage.

Voltage stability

≤0.1%

Current resolution

10mA: The smallest unit used by the equipment for detecting or setting current.

Current stability

≤0.1%

Power output range

0.5～Pmax = Vmax * Imax

Input impedance

≧10 MΩ

Input power supply

AC 220V ±10%/50Hz (Power supply for cabinet: 380V three-phase five-wire)

Power accuracy

±（0.1%RD + 0.1%FS）

Current response time

Current hardware response time at 50A: ≤10ms

Time setting range

Any setting within 0-9999 minutes, resolution 1 minute

Time accuracy

≤±0.1%

Recording method

Charging record time, discharging record time, idle record time, global record time

Recording frequency

1S/H

Sampling frequency

Around 100ms

Charging mode

constant current limiting voltage, constant current constant voltage, constant power charging, constant current overcharge test (with protection board battery)

Charging termination condition

Voltage, current, time, capacity, temperature

Discharge mode

Constant current, constant power discharge, constant current overdischarge test (with protection board battery)

Discharge termination condition

Voltage, current, time, capacity, temperature

Protection function

Data abnormality recovery;

Battery reverse connection protection function;

Software overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, voltage and current protection value range can be set, and prompt and record after protection;

Single cycle number of working steps

≤250 steps, with nested loop of 10 layers

Continuous working time

The power of the equipment should meet the requirement that all channels can operate at full load for 365*24 hours continuously

Equipment noise

Less than 60dB

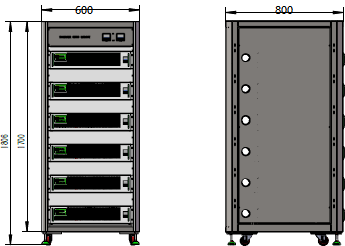

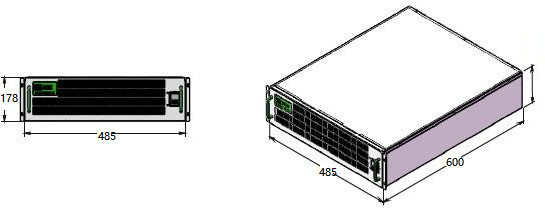

Circuit structure

Modular structure design, easy for replacement and maintenance

Software

1. The software supports continuous connection.

2. Data can be exported as EXCEL, TXT, and chart files, providing various data analysis curves and data lists such as charge-discharge curves, capacity decay rates, cycle life curves, charge-discharge voltage, current, capacity-time, etc.

3. Supports capacity sorting, allowing for battery grading.

4. Features data loss protection, automatic resumption of operation after power failure, overvoltage and overdischarge protection, overcurrent and undercurrent protection, capacity protection, overtemperature protection, abnormal voltage trend protection, abnormal current trend protection, abnormal current fluctuation protection, abnormal voltage fluctuation protection, abnormal charging voltage rise rate protection, abnormal discharge current drop rate protection.

5. Supports various step protections and global voltage, current, and temperature abnormal protection, with alarm for abnormalities, supports overcharge and overdischarge protection tests for battery packs.

6. The hardware has an emergency cutoff switch, automatic shutdown after power failure, and automatic load connection and disconnection functions.

7. Supports database server backend storage or MES integration.

8. Software offline protection.

9. Free software upgrades are provided.

Operating/storage temperature

0℃～40℃/-10℃～50℃

Operating/storage

environmental humidity

≤70% RH /≤80% RH(No condensation)

Maintenance

Non-professionals should not open the chassis. Regularly inspect the equipment connectors to prevent poor contact.

Transportation

The packaging is suitable for transportation by car, ship, airplane, train, etc. Rain protection and civilized loading and unloading should be observed during transportation.

No.

Name

Qty

1

Factory inspection report

1 set/device

2

Equipment user manual

1 set/device

3

Packing list and product certificate of conformity

1 set/device

4

Ethernet cable or 485 communication cable

1 set/device
