Battery Tester

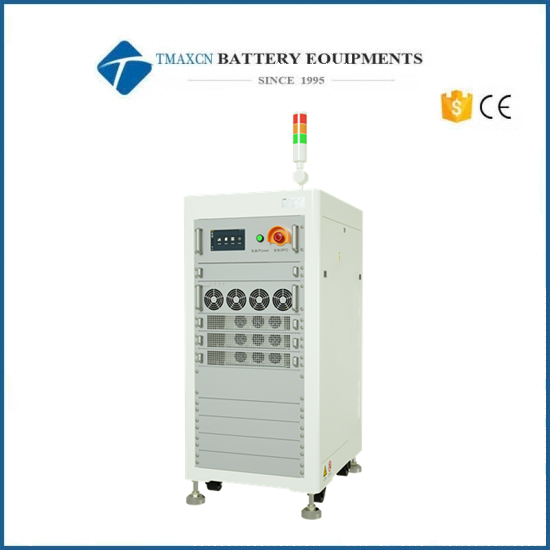

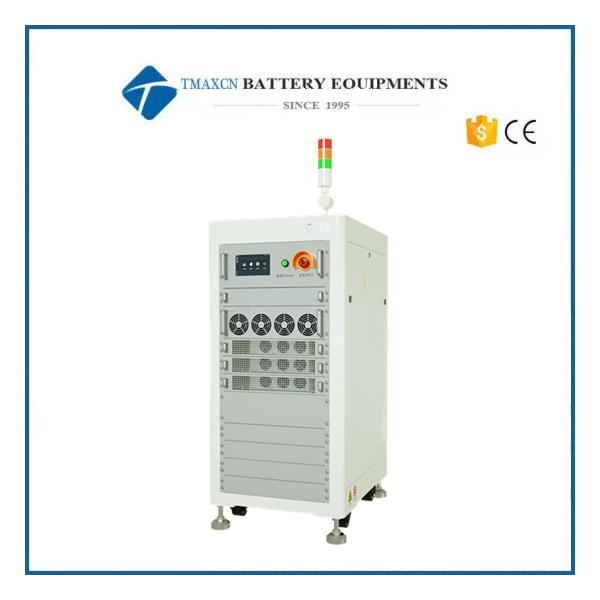

60V 100A Battery Testing System for Power/EV Battery Packs

  • Model Number:

    CE-6002n-60V100A-H
  • Input Power:

    12KW
  • Dimension(L*W*H):

    600*800*900(mm)
  • Net Weight:

    112KG
  • Compliance:

    CE Certified
  • Warranty:

    1 Year Limited Warranty With Lifetime Support
  • Place of Origin:

    China
  • Shipping Port:

    Xiamen
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    20 days
Product Details

60V 100A Battery Testing System for Power/EV Battery Packs


Introduction:

*Power battery simulation, C-rate test.

*Life cycle test.

*Power test, capacity test, energy density test.

*Power battery virtual distribution: charge/discharge curve fitting, battery consistency test and evaluation.

*High rate charge/discharge test.

*Power battery, serial energy-storage battery module test: single cell voltage, Single cell temperature monitoring(high-voltage equipment).



Features(some features required a customization):

*High-performance charge/discharge test platform developed for high-power battery modules(or packages).

*Adopting AC/DCDC/DC Dual-level high frequency module design, combined with low temperature drift, high-performance multi-channel 24-bit analog-to-digital conversion chip(ADC) to achieve higher stabilize accuracy.

*High-level power density system with multi-channel integration and capable for energy recovering.

HMI operation, smart calibration.

*Multiple adaption for BMS, supports the same/different charge and discharge ports, relay/MOSBMS solution, independent CAN and RS485 communication expansion, and DBC configuration.

*Remote control available for host computer through Ethernet, channels parallel, pulse and driving simulation available.

*Man-computer integration interface design, minimized system for easy-understand operating, customized setting available, automatic reminder for termly calibration.


CE-6000 Specification

1Model

1. Material code

CE-6002n-60V100A-H

2Channels information

1. Channels quantity

Channels quantity in one unit

2

2. Main channel

Channel feature

Constant current source and constant voltage source dual closed loop control



Channel control mode

Independent control



Channel parallel connection

Support max 4 channels parallel mode. Pulse and SIM tests will be disabled in channels parallel mode.



3Power grid side parameters

1.Input power



AC380V±15%  50/60±5Hz

2.Power factor



≥99%(Full load)

3.THDi



≤5%(Full load)

4.Input resistance



≥1MΩ

5.Input power



14.1KW

6.Input current



21.5A/single

7.Overall system efficiency(Max)



90%

8.Noise



65dB

9.Voltage and current sampling



Four-wire connection(same port for charging and discharging)

10.Power control module type



MOSFET

11.Input power wiring method



Three-phase-five wire system

12.Power input protection



Anti-surge, anti-silos, anti over or under frequency, anti over or under voltage, anti phase absence, etc.

4Functions and performances

1. Voltage

Output range

Charge:0V60V





Discharge:3V60V



Min discharge voltage

3V



Accuracy

±0.02% of FS



Resolution

24bit

2. Current

Output range

0.5A100A



Accuracy(independent range)

±0.05% of FS



CV cut-off current

100mA



Resolution

24bit

3. Power

Single channel output power

6KW



Whole machine output power

12KW

4. Time

Current response time

3ms



Current conversion time

6ms



Min. step time

0.1s

5. Charge/Discharge modes

Charge/Discharge modes

CCC, CVC, CC-CVC, CPC





CCD, CVD, CPD, CRD



Cut-off condition

Voltage, Current, ΔTime, Capacity, -ΔV

6. Simulation

Charge

Current, Power



Discharge

Current, Power



Switch

Support continuous switching between charge and discharge



Cut-off condition

Time, step line



Steps file lines

1,000,000

7. Pulse Mode

Charge

Current ,power



Discharge

Current, Power



Min pulse

100ms



Pulse counts

Up to 32



Charge and discharge switch

supported



Cut-off condition

Voltage, ΔTime

8. DCIR



DCIR by calculation

9. Safely protection

Software protection

Power off data protection





Offline mode function





Safety protection conditions can be set, including:voltage lower limit ,voltage upper limit ,current lower limit ,current upper limit ,delay time, etc.



Hardware protection

Anti-reverse connection, over-voltage, over-current, over-temperature, etc.

5Data management and analysis

1. Step setting method



Form editing

2. Data report

Recording conditions

Minimum time interval: 10ms(connected with AUX channel:100ms





Minimum voltage interval: 0.12V





Minimum current interval: 0.2A



Recording frequency

100Hz(connected with AUX channel:10Hz)

3. Database



MySQL database

4. Data output



Excel, Txt

5. Curve type



Templates available, customization supported

6. Bar code scanning



Support bar-code scanning function





Management and traceability of historical data

6Communication

1. Host computer communication



TCP/IP protocol

2. Communication port



Ethernet

3. Communication baud rate of the testers



1M

4. Host computer communication baud rate



10M~100M adaptive

5. Communication setup



Set up a LAN(local area network) through switches and routers

6. Communication expansion(optional)



Support CAN, RS485 communication and BMS communication, with DBC configuration function

7Environmental requirements, dimension and weight

1. Operation environment temperature



-10℃~40℃(When the temperature is 25±10℃, the accuracy error caused by temperature change is less than 0.005% of FS per degree)

2. Storage environment temperature



-20℃~50℃

3. Operation environment humidity



≤70% RH(no moisture condensation)

4. Storage environment humidity



≤80% RH(no moisture condensation)

5. Dimension W*D*H



600*800*900(mm)

6. Weight



about 111.1KG
