Battery Tester

8 Channel Battery Analyzer (10A 30V per Channel) with Software for All Types of Batteries & Packs

  • Model Number:

    TMAX-TB1

  • Compliance:

    CE Certified

  • Warranty:

    2 Year limited warranty with lifetime support

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    5 days
Product Details

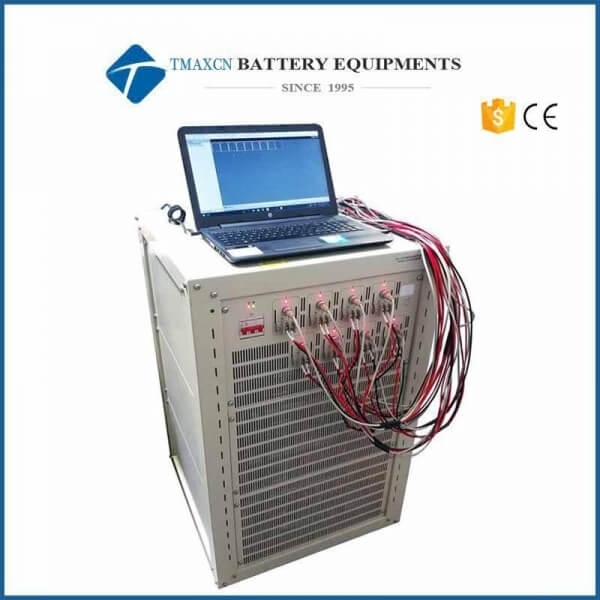

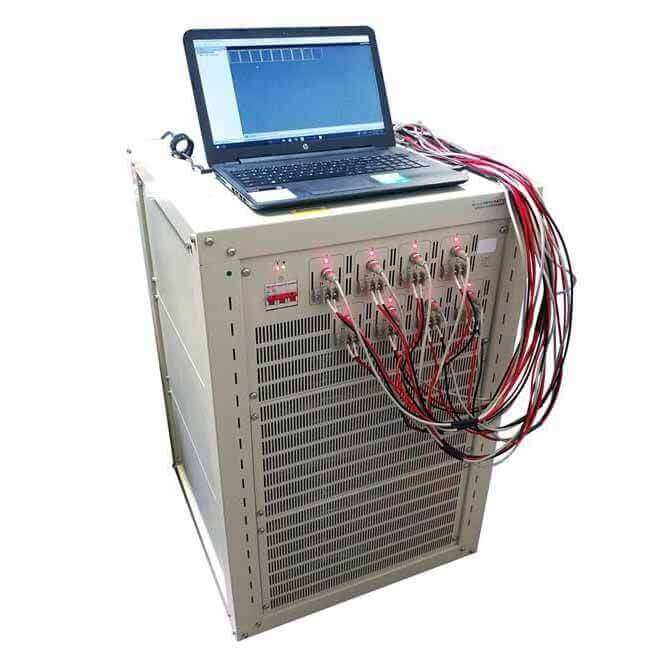

8 Channel Battery Analyzer (10A 30V per Channel) with  Software for All Types of Batteries & Packs



 TMAX-TB1 is a CE certified 8 channel battery analyzing the system for Li-ion, LiFePO4, Ni-MH, Ni-Cd, and Lead acid battery packs with up to 30V and 10A per channel. This battery analyzer is designed according to the international standard: each channel has an independent constant-current source and a hardware constant-voltage source. Constant-current source and constant-voltage source can be programmed and controlled by the user. With plug-and-play module design, the user can freely remove and add module units without interrupting other units. A brand new Laptop computer with Windows 10 and operation software is included for immediate use.


SPECIFICATIONS:

Working Voltage 220 - 240V AC, 50/60Hz, Single phase
Max. Power Consumption 3.5KW
Voltage measurement
  • Range: 0.03 - 30 V
  • Accuracy: +/- (0.1% of reading + 0.05% of range)
Current measurement
  • Range: 0.01 - 10 A
  • Accuracy: +/- (0.2% of reading + 0.1% of range)
Time Range 0 - 999 seconds
Cycle Measurement Range 1 - 9999 times
Input Impedance ≥ 10 m-ohm
Port Network
Channels
  • Eight independent programmable channels
  • Each channel can set different working modes and works independently
Software
  • Windows-based software interfaces for easy operation
  • Uses standard SQL database management
  • Real-time monitoring windows and integrated graph/data windows
  • Can set various working modes for measuring capacity and cycle life of all types of rechargeable batteries, such as:
  • The user can define the curve by different types such as voltage-time curve, current-time curve, capacity-voltage curve, loop times charge/discharge capacity curve, loop times charge/ discharge efficiency curve, etc. to make curves be compared both by visually and statistically
  • Provide timely instructions, warnings, and intelligent support
Record
  • Complete test process record (log function)
  • Intelligent power failure protection:
    • If power fails during the testing, the system will shutdown all running channels. Once power recovers, it will automatically resume those stopped channels and ensure that the test is normally conducted and the data will never lose any cases.
Laptop Computer
  • Brand new laptop with MS Window 10 is included and latest version testing software are installed and calibrated for immediate use
  • Up to 20 sets of analyzers can be simultaneously controlled by one PC
  • MS Excel 2013 30 days free trial is pre-installed for you to output the Excel data file
Product Dimensions 26"(L) x 20"(W) x 20"(H)
Compliance
  • CE Certified
Warranty One Year limited warranty with lifetime support for the battery analyzer.
