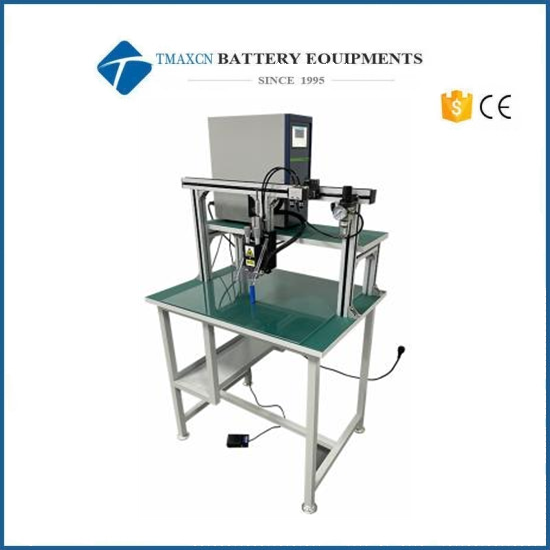

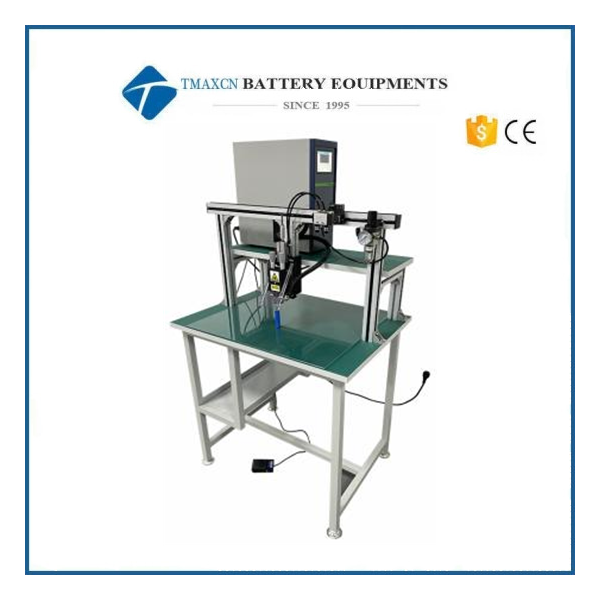

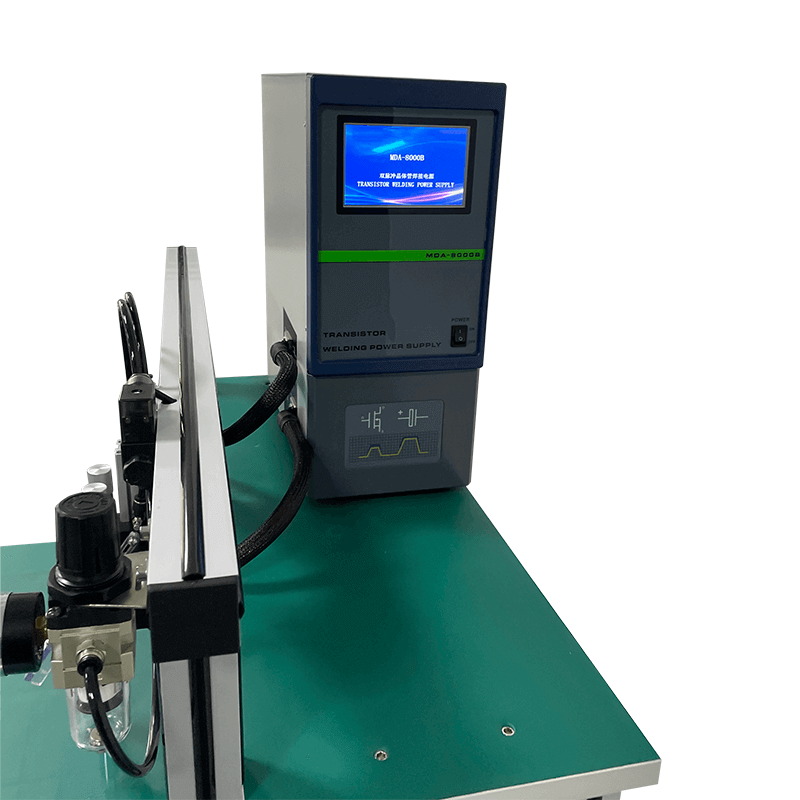

8000A Transistor Welding Power Supply Manual Spot Welder

Introduction:

Transistor welding power supply is a high-precision, high-speed and high current transistor welding power supply that performs high-speed switching through the power switch tube and performs closed-loop feedback control on the voltage and current between welding electrodes collected in real time.

Main Function:

Cylindrical battery, Prismatic battery, Polymer battery Pneumatic spot welding with nickel sheet .

Product description:

1.The welding power supply adopts transistor switching mode, which can realize small and high-efficiency and high output precision welding.

2.The machine adopts three welding methods:

Constant voltage welding:Control the voltage between electrodes, the current is small, and spark will be reduced during welding;

3.Constant current welding:Through a certain amount of current, it has nothing to do with the resistance of the workpiece and can be welded stably;

4. Constant voltage and current welding:Welding is controlled by setting current and voltage at the same time.

5.Output current direction:

6.MDA-8000B current flows from the positive to the negative (unipolar welding), which is mainly suitable for power batteries;

Specification:

Detail Show:
