Environmental Constant Temperature Humidity Box

80L-1000L Environmental Constant Temperature Humidity Box

  • Model Number:

  • Compliance:

    CE Certified
  • Warranty:

    One year limited with lifetime support
  • MOQ:

  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    30 day
Product Details

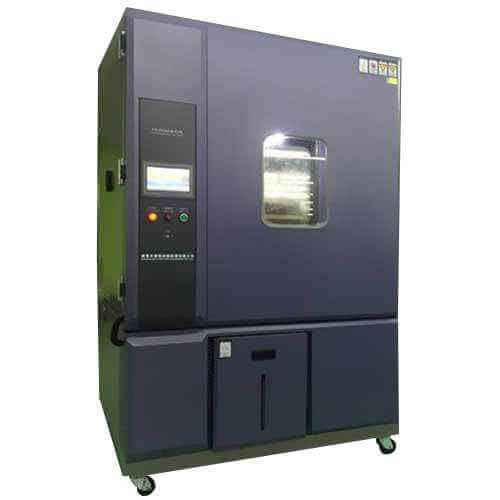

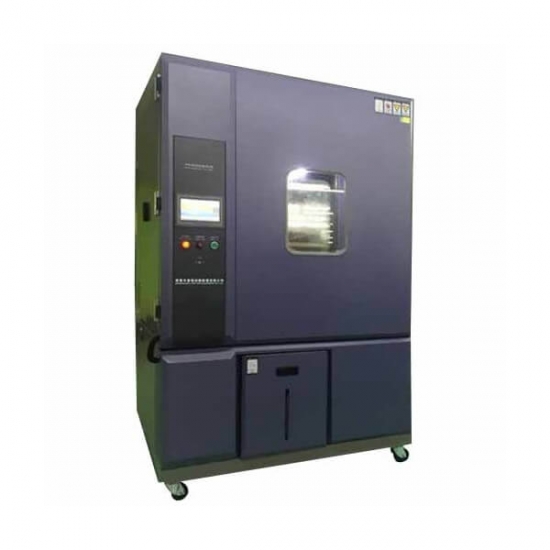

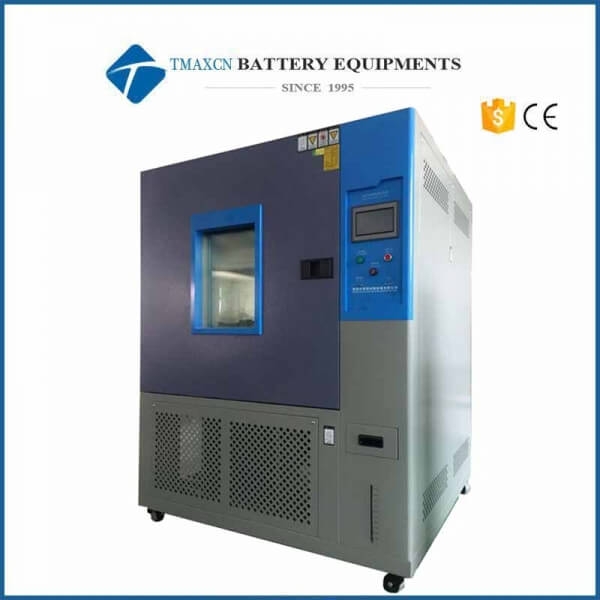

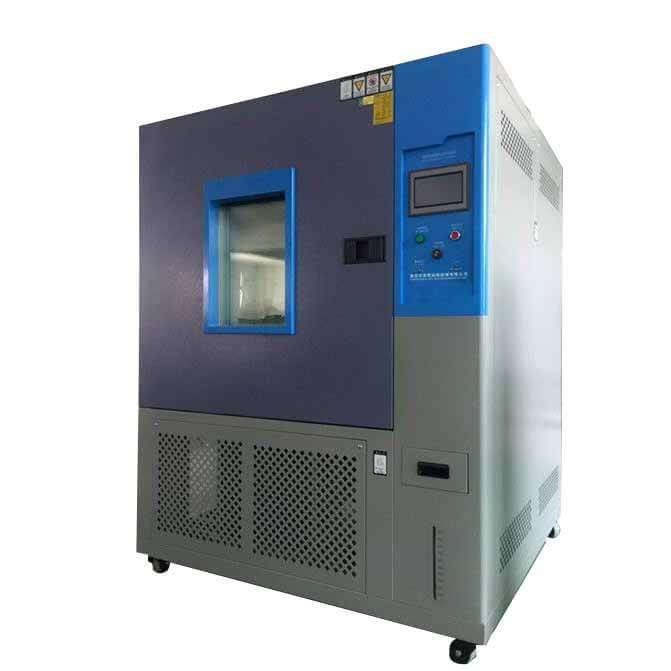

80L-1000L Environmental Constant Temperature Humidity Box

Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

 Model  TMAX-80(A~F)  TMAX-150(A~F)  TMAX-225(A~F)  TMAX-408(A~F)  TMAX-800(A~F)  TMAX-1000(A~F)
 Internal Dimension
WxHxD (mm)
 400x500x400  500x600x500  600x750x500  600x850x800  1000x1000x800  1000x1000x1000
 Internal Dimension WxHxD (mm)  950x1650x950  1050x1750x1050  1200x1900x1150  1200x1950x1350  1600x2000x1450  1600x2100x1450
 TemperatureRange  Low Temperature(A:25°C  B:0°C  C:-20°C  D:-40°C  E:-60°C  F:-70°C)
 High Temperature 150°C
 HumidityRange  20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier)
 Analytic Accuracy/
Distribution uniformity of
temperature and humidity
 0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
 Control Accuracy of
Temperature and Humidity
 ±0.5°C; ±2.5% R.H.
Cooling System Wind cooling or water cooling/single segment compressor(-40°C, double segment compressor -70°C)
 Temperature Rising/Falling
Speed Rate
 Temperature rising approx.  0.1~3.0°C/min
temperature falling approx.  0.1~1.5°C/min;
( The Falling Speed Rate Min.1.5°Cper minute is a special optional condition)
 Power  AC220V  1ph 3 lines, 50/60HZ ,  AC380V   3ph  5 lines , 50/60HZ
 Approx. Weight (Kg)  150  180  250  320  400  450

Environmental Constant Temperature Humidity Box

Environmental Constant Temperature Humidity Box

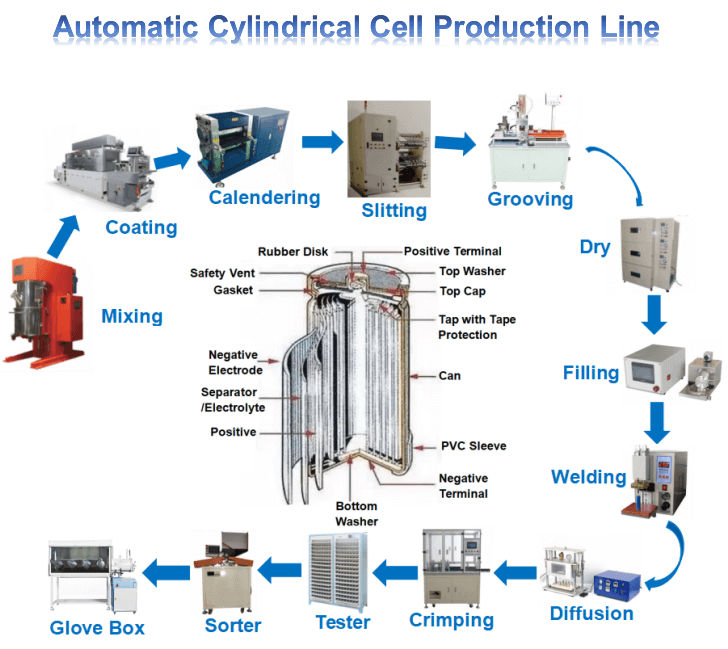

cylindrical cell production equipment

Our Certifications


Cooperative Brand


Hot Sale Products

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.

Compact Vacuum Mixer

Packing & Delivery

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
