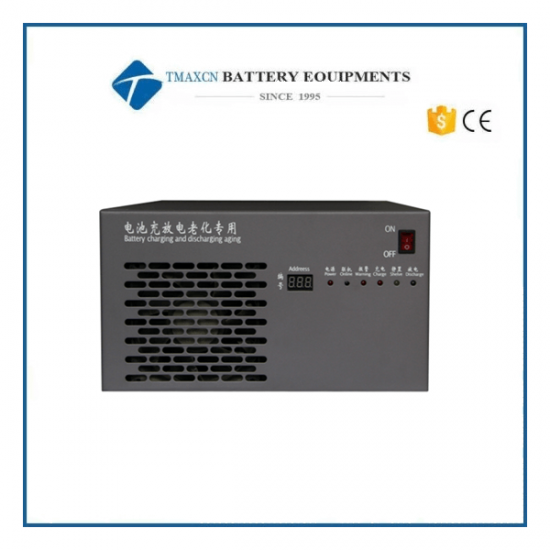

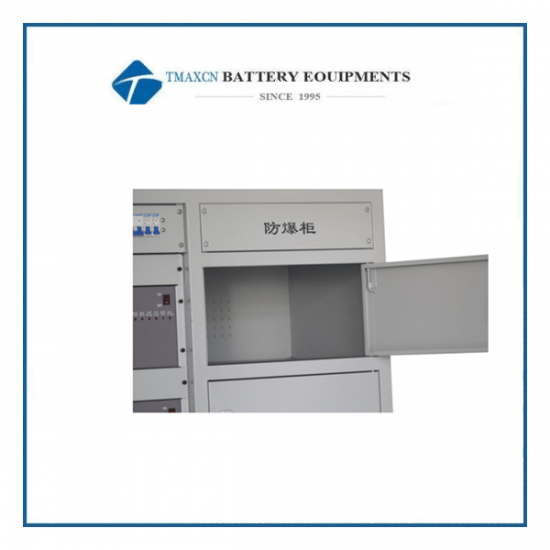

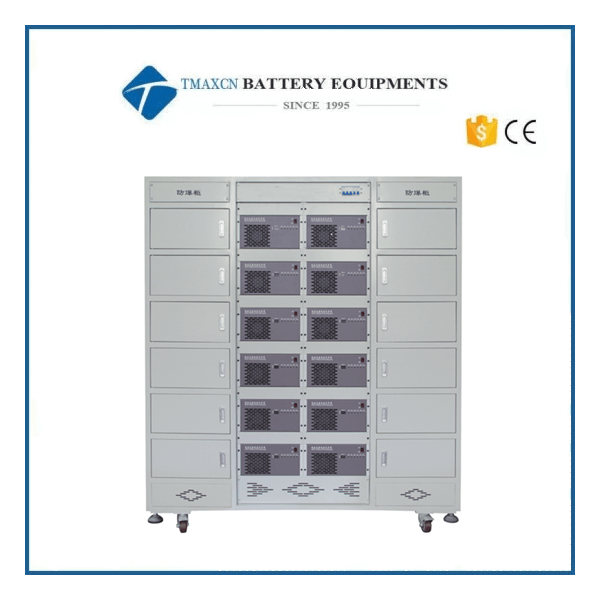

84V 5A Charging 10A Discharging Battery Pack Testing Cabinet

  • Model Number:

    TMAX-BCD-S84V
  • Input Power:

    840W
  • Dimension(L*W*H):

    1600x600x1800mm
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Place of Origin:

    China
  • Update:

    Optional
  • Shipping Port:

    Xiamen Port
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

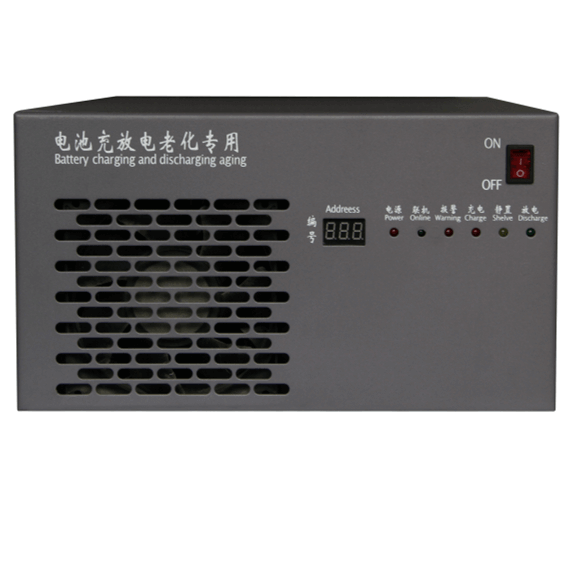

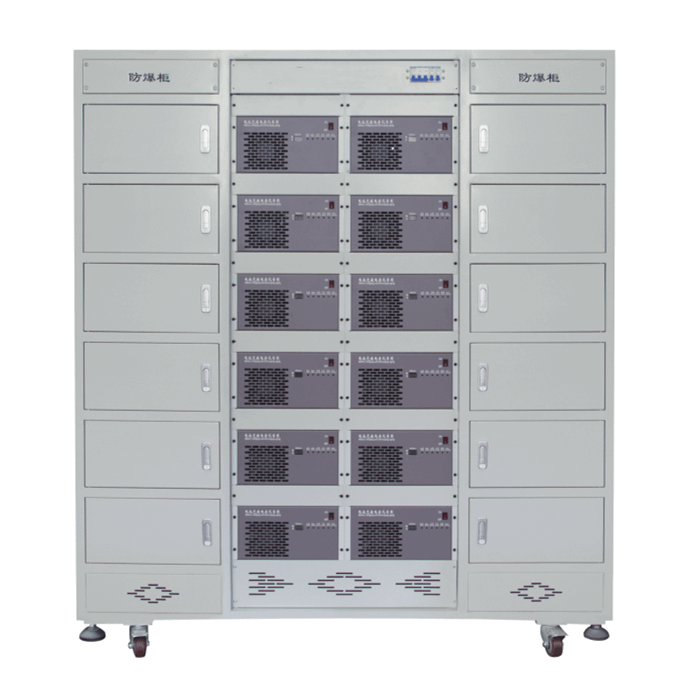

84V 5A Charging 10A Discharging Battery Pack Testing Cabinet


1.Introduction:

TMAX-BCD-S84V aging cabinet is mainly used for charging and discharging cycle test of finished lithium battery. The test items include: battery charging protection voltage, discharge protection voltage, capacity, etc.; the equipment has four test steps of charging, discharging, shelving and cycling. By editing the corresponding steps, the battery can be tested according to the set process.



2.Specification:

Technical Parameter

Input power

AC220V±10%/50Hz



Voltage

Measuring Range

36-84V



Accuracy

±(0.2% of reading +0.2% of range)





Current













Charging Range

50-5000mA

Charging Accuracy

±(0.2% of reading +0.2% of range)

Discharge Range

50-10000mA

Discharge Accuracy

±(0.2% of reading +0.2% of range)

Charge

Constant Voltage Cut-off Current

Minimum 50mA

Capacity

Accuracy

±1%

Power

Discharge Power

840W

Time

Inspection Time

Real-time Collection<2S



Timing Range

0-999h/step

Data Recording Interval

≥5S

Middle Machine Version

1:1 series

Number of Passages Per Cabinet

12 channels, six rows and two column



Charge



Charging Mode

Constant Current and Constant Voltage Charging

Cut-off condition

Voltage, Current, Relative Time, Overcharge Protection

Discharge

Discharge mode

Constant current discharge



Cut-off condition

Voltage, Relative Time and Over-discharge Protection

Loop

Cyclic measurement range

1-999 times



Single cycle step number

100

Voltage and Current Detection Sampling

Four-wire sampling

Data Base

Using SQL database to manage test data

Upper computer communication mode

Based on TCP/IP Protocol/Serial Port

Data Output Mode

EXCEL/TXT/Chart

Communication Interface

Mesh port

Chassis dimensions

300x450x170mm

Cabinet size

1600x600x1800mm

Spatial Dimension of Discharge Battery

400x460x200mm


3.Range of Application:

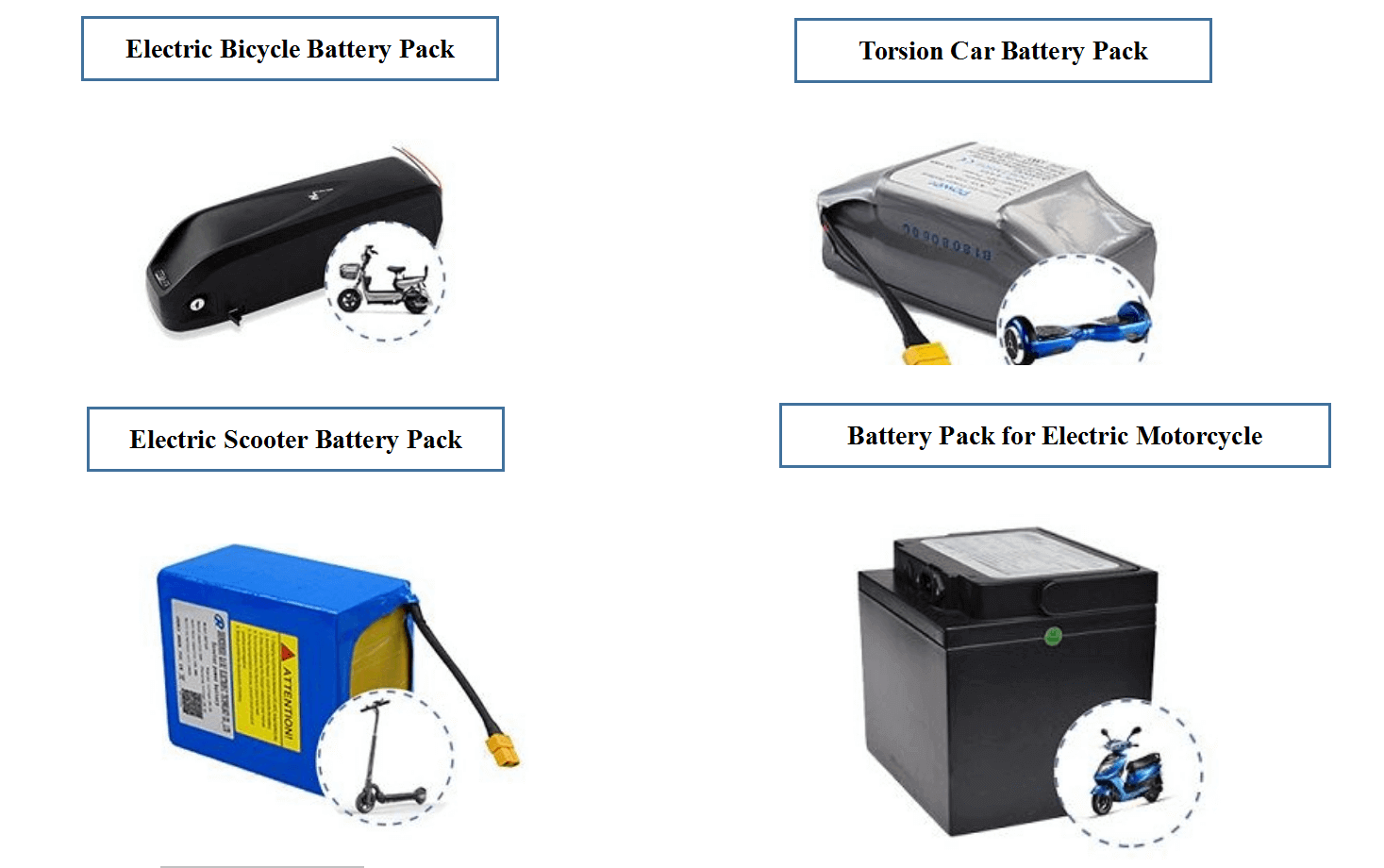

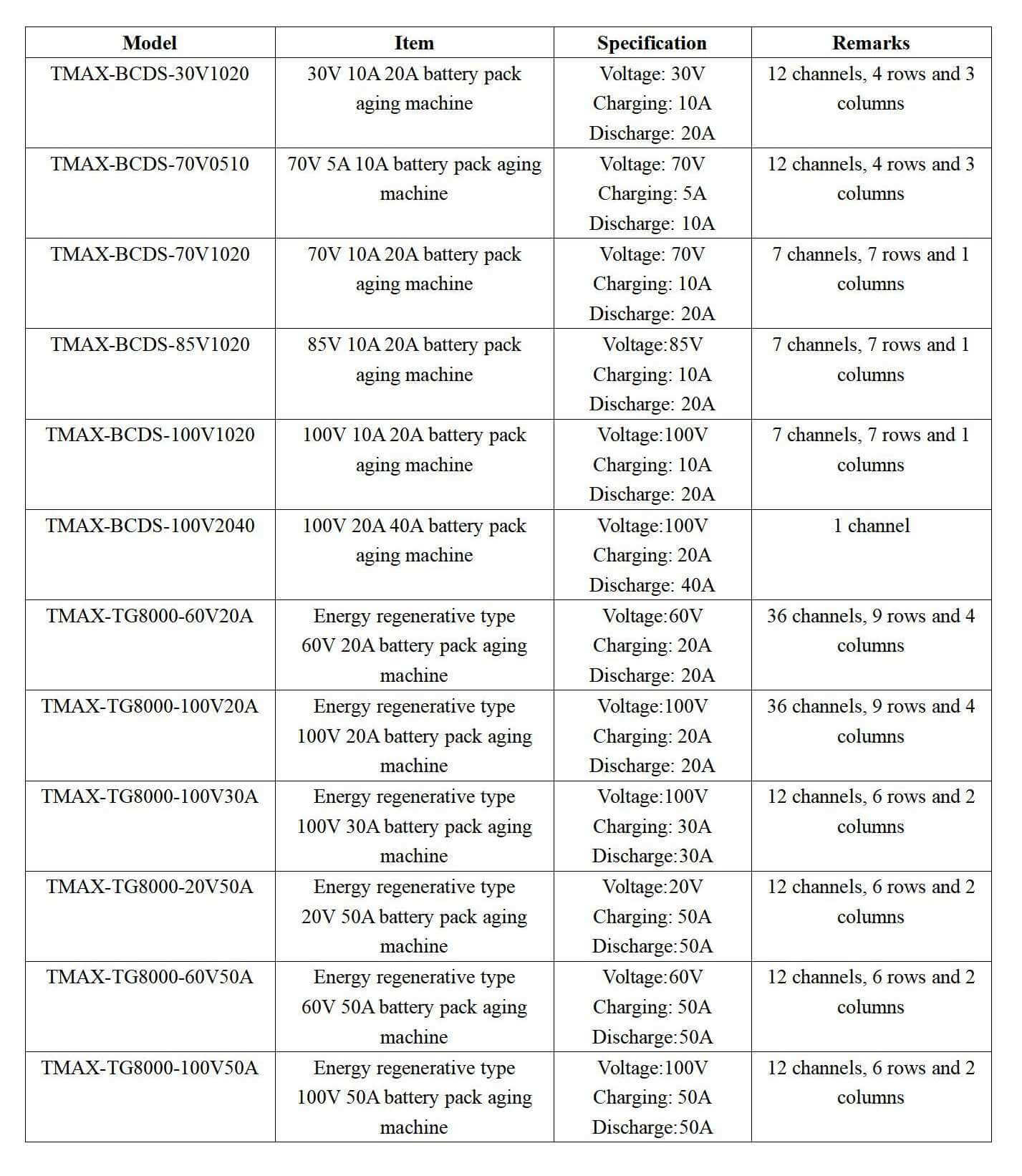

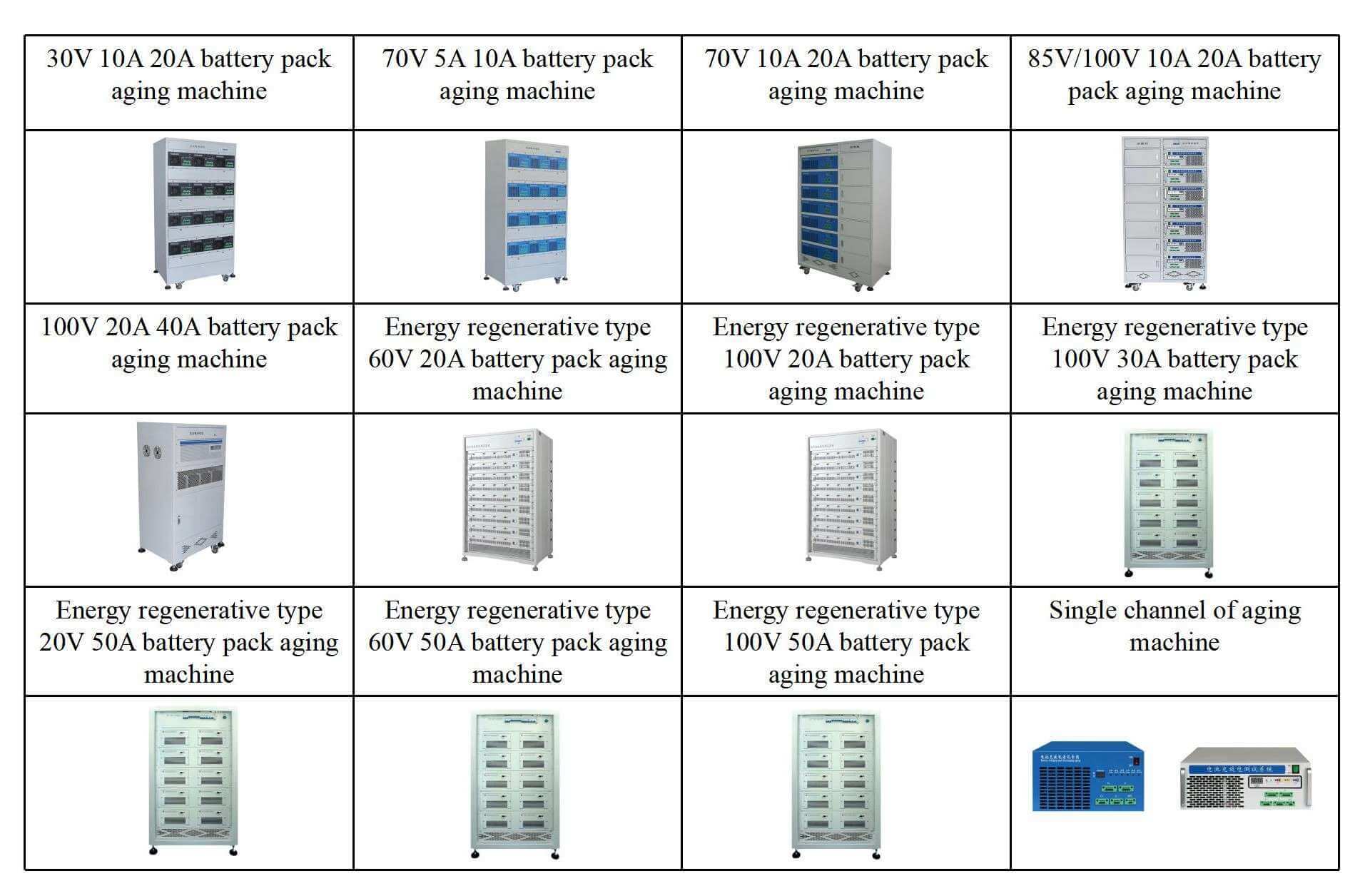

4.Selection of battery pack charge and discharge aging machine:


                      Battery Pack Testing Cabinet
Battery Pack Aging Machine
