Ag Foam

Ag (Silver) Foam for Conductive Electrode Substrate

  • Model Number:

    TMAX-AgFoam
  • Dimension(L*W*H):

    Can be customized
  • Compliance:

    CE Certified
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    3-5 day
Product Details

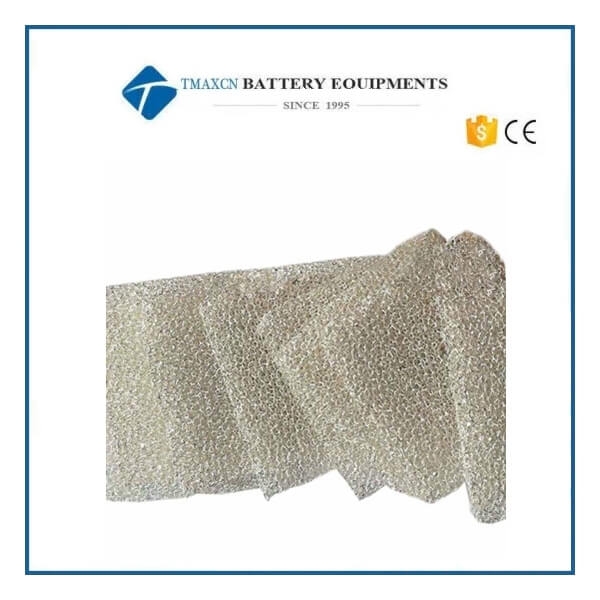

Ag (Silver) Foam for Conductive Electrode Substrate

Specifications

  • Material: Ag(Silver) Foam, Purity> 99.99% (excellent anti-corrosive)
  • Length:                           100 mm
  • Width:                             100mm
  • Thickness:                      1.0 mm
  • Net weight:                     21g
  • Porosity:                        ≥85%
  • Specific Surface area:   ≥10㎡/g
  • Tensile Strength:          Lengthwise≥1.25N/mm^2; Widthwise≥1.00N/mm^2



Dimension (Thickness* Length*Width)

0.3mm*100mm*100mm

0.5mm*100mm*100mm

0.8mm*100mm*100mm

1mm*100mm*100mm

1.5mm*100mm*100mm

1.7mm*100mm*100mm

0.5mm*300mm*200mm

0.8mm*500mm*500mm

The size can be customized
