Ultrasonic Welding Machine

Al Tab Ni Tag Ultrasonic Welding Machine

  • Model Number:

    TMAX-VS-39B
  • Input Power:

    2000W
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    20day
  • contact now
Product Details

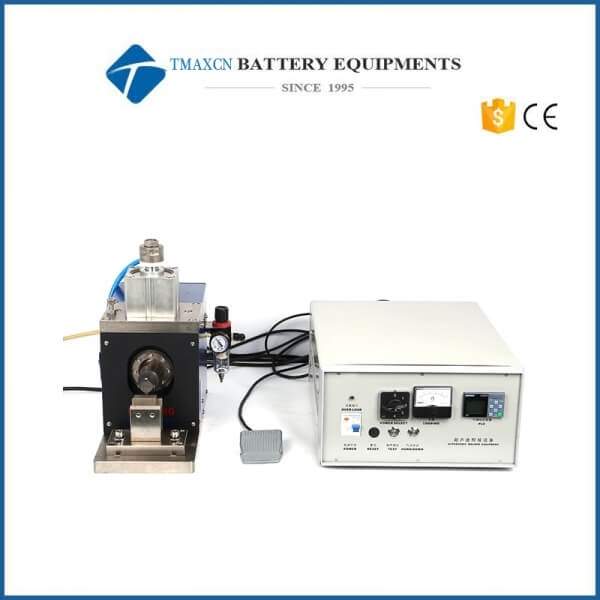

Al Tab Ni Tag Ultrasonic Welding Machine

TMAX-VS-39B is a CE Certified ultrasonic metal welder. It is designed for welding stacked electrode sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells in R&D laboratories.

SPECIFICATIONS:

Features

Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...).

Input Voltage

AC 110V  or 220V +/-10%, 50/60Hz

Max. Power Consumption

2200W

Welding Area

4mm(L) x 4mm(W)

Welding Head

The welding heads and welding bases are included for welding both aluminum & copper current collectors from 2 to 40 layers

Ultrasonic Frequency

40K Hz

Product Dimensions

1.     Controller: 360mm(L) x 480mm(W) x 200mm(H)

2.     Welder: 200mm(L) x 460mm(W) x 270mm(H)

Net Weight

70kg

Compliance

CE Certificate

Warranty

One Year limited warranty with lifetime support

Application Notes

Nickel and Aluminum Tabs can be welded onto different types current collecting substrates (Aluminum or Copper) when making battery electrodes.



                   Ultrasonic Welding Machine

Ultrasonic Welding Machine

Ultrasonic Welding Machine
















1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Spot Welding Machine


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
