Factory Price Coin Cell Machine,Pouch Cell Machine,Cylindrical Cell Machine

Auto Roll to Roll Tab Welding Machine

  • Model Number:

    TMAX-roll-TW

  • Input Power:

    2000W

  • Compliance:

    CE Certified

  • Warranty:

    One year limited with life time support

  • Place of Origin:

    China

  • Shipping Port:

    Xiamen

  • Delivery Time:

    7 days
Product Details

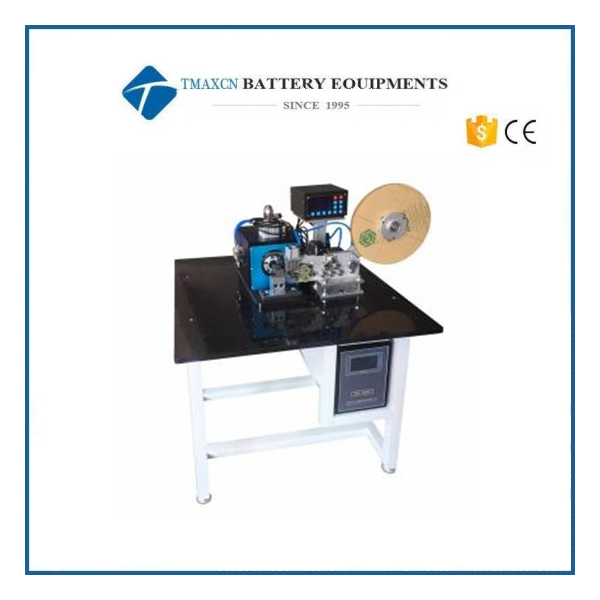

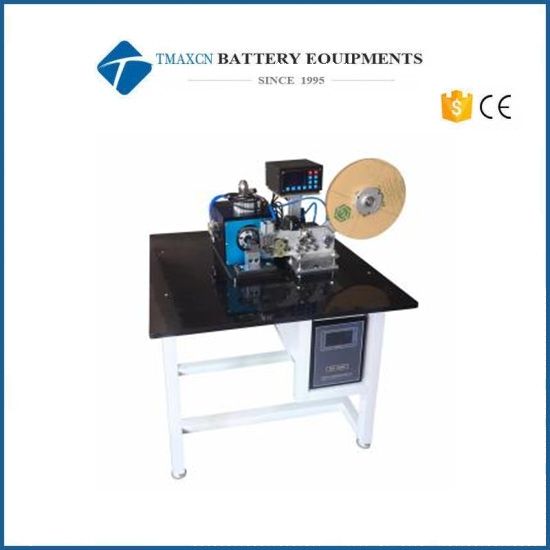

Auto Roll to Roll Tab Welding Machine

1.Introduction：

The machine adopts PLC automatic control to realize the functions of fixed length belt feeding, belt cutting, gluing, cover plate feeding and welding instructions；

2. Specification：

Item

Specification

1 ．Al Ni Sheet



1. 1 Thickness

0. 1-0.2mm

1.2 Width

3-4mm(can be customized)





2. Belt feeding



2. 1 Length

1-60mm  (can be customized)

2.2 Length error

±0.5mm

2.3 Efficiency

25-40 PCS/min(It is related to the speed of manual pole feeding)





3. Electrical parameters



3. 1 Power Supply

1P 220V

3.2 Input Power

2000W

3.3 Input air pressure

0.4-0.7Mpa, flow20L/min ，Utilization rate:50%



3. Composition:：

The machine is composed of unwinding, buffering, shaping, gluing, tape feeding, tape cutting, electrical control and other mechanisms.

 4 .Environment:

1.Ambient temperature: -5～35℃

2. Relative humidity:5-75%HR

3 .Power Supply:AC220V 1P Voltage fluctuation is less than ± 10%; Power supply >1KVA

        roll to roll tab welder
