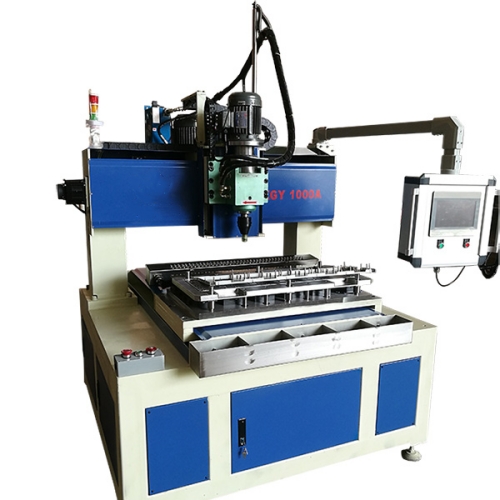

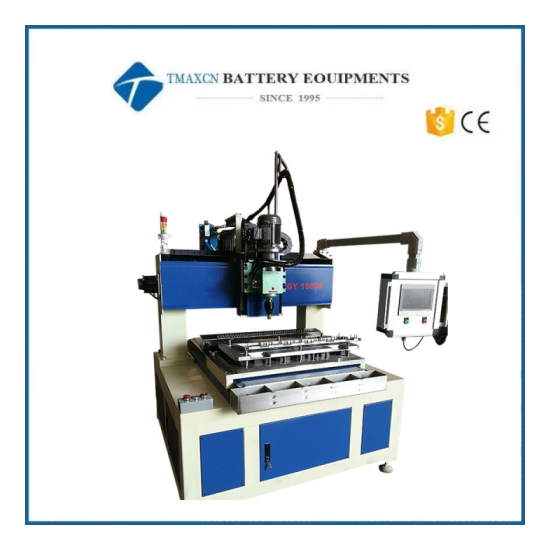

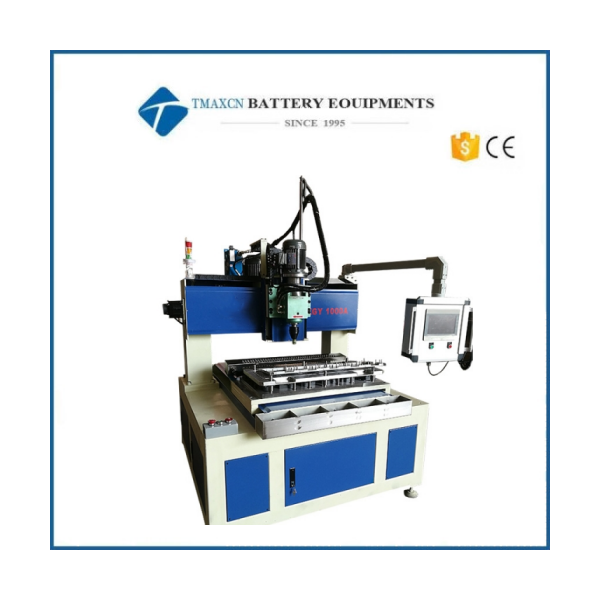

Automatic CNC Riveting Machine With Rotary Table

Automatic CNC Riveting Machine With Rotary Table

Feature

The workbench is used to place workpieces (the width of the workbench surface can be customized according to customer requirements), which is more efficient.

Precise positioning of the XY working platform

Teaching programming is simple to operate

It is equipped with an electronic handwheel for convenient machine adjustment

One-time training, storage and invocation, convenient and fast

Three different specifications of rivets can be automatically inserted at one time

Teach the preset riveting points and automatically rivet them one by one.

The height of the riveting head is automatically adjusted for riveting points of different planar heights.

For rivets of different sizes, different riveting times are set separately to achieve the maximum riveting quality and the best riveting efficiency.

A specially designed forced pneumatic material ejection device is provided to easily complete the product discharge.

For the riveted workpieces, it has a code storage function. When used for the second time, only the data needs to be directly called up.

For the riveted workpieces, it has a code storage function. When used for the second time, only the data needs to be directly called up.

The positioning is driven by imported Japanese servo motors, which are precise, stable and durable.

The 10-inch color human-machine interface display makes operation more intuitive and easy.

Workflow

1. Start up the machine, return the system to zero, and move the worktable to the clamping position.

2. At the clamping position of the equipment, the operator places the cylinder head cover part on the positioning fixture and quickly clamps the workpiece manually.

3. Start the equipment, and it will automatically feed the positioning fixture and workpiece to the first riveting position and lock them (achieved by motor phase locking).

4. The riveting head descends for riveting (the descent distance can be set);

5. Single-point riveting is completed when the riveting head descends to the set riveting position.

6. Control the action of the riveting cylinder and retract (the retract distance can be set);

7. Move the workpiece and fixture longitudinally and laterally to the next riveting point.

8. Repeat steps 4 to 7.

After riveting is completed, the equipment automatically moves the positioning fixture and the workpiece to the manual operation position.

10. Complete one riveting operation
