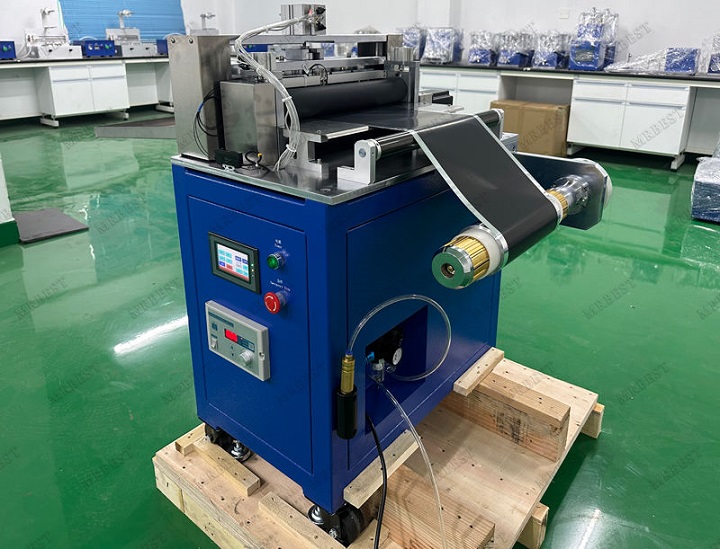

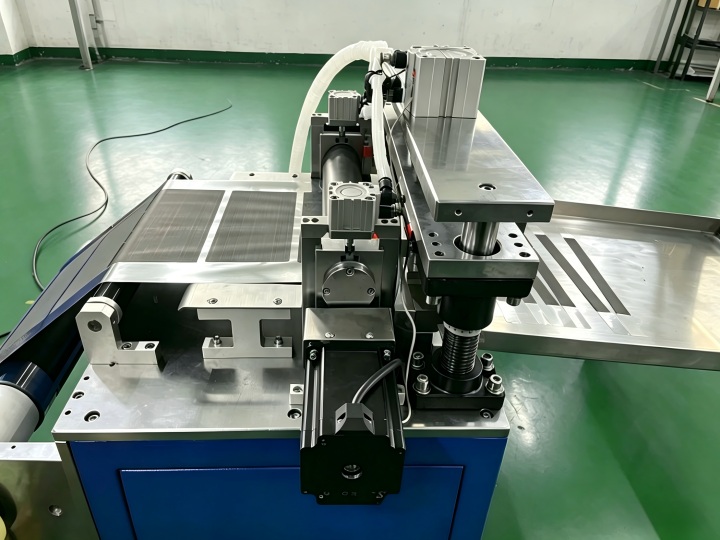

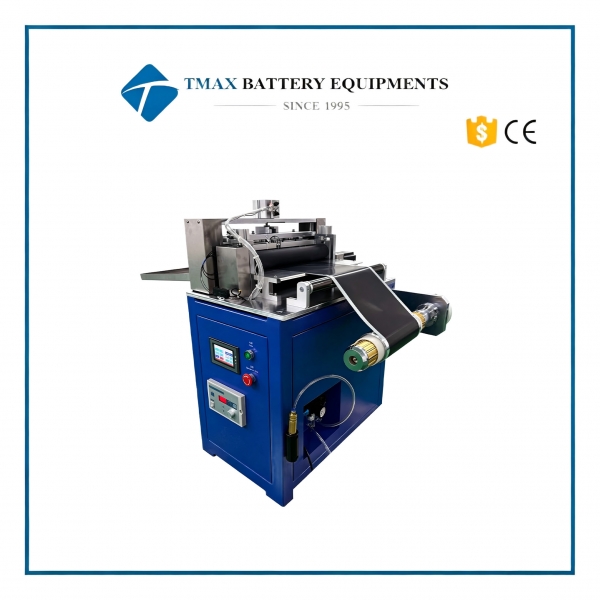

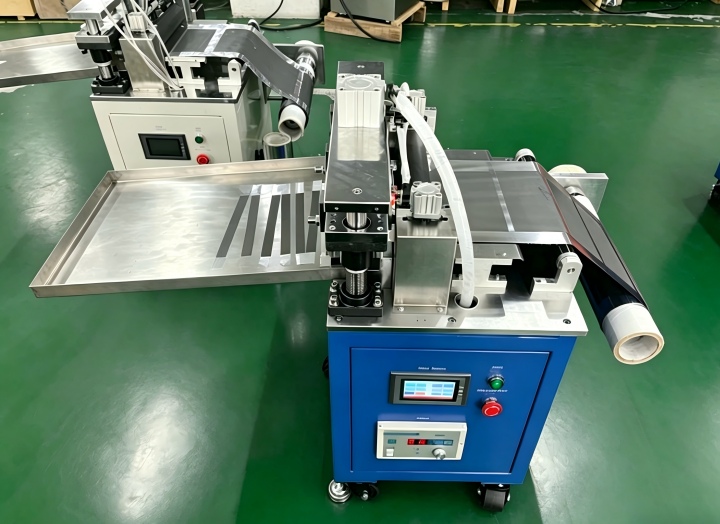

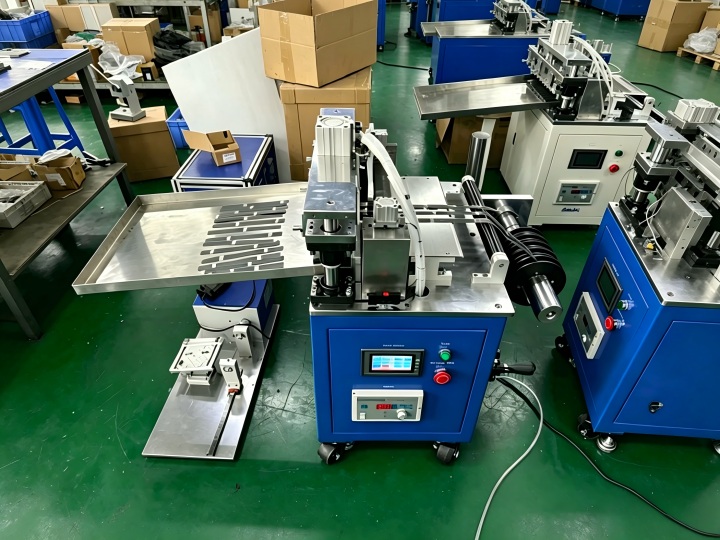

Automatic Electrode Sheet Cross Cutting Machine for Lithium Battery

Introduction

This machine is mainly used for single-sheet cutting of lithium battery cathode and anode electrodes. Cutting length, quantity, and speed can be freely set. It supports independent cutting operation and features automatic unwinding with tension control for automatic feeding and stopping. The pneumatic shaft design allows convenient loading and unloading.

Features

1) Adjustable cutting length, quantity, and speed

2) Automatic unwinding tension control

3) Continuous cutting with fixed-length mode and mark tracking mode

4) Front/rear cutting compensation adjustable for multi-section cutting

5) PLC + HMI control system for easy operation

6) Compact structure with elegant sheet metal design

7) Safe, reliable, and user-friendly operation

Parameters
