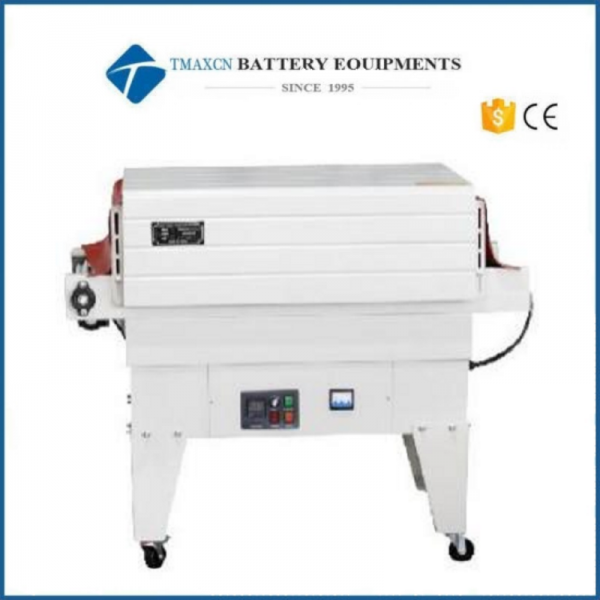

Heat Shrinkable Packaging Machine

Automatic Internal Circulation Heat Shrinkable Film Packaging Machine for PVC POF PP

  • Model Number:

    TMAX-PVC
  • Type:

    Automatic
  • Dimension(L*W*H):

    1600*650*830mm
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days

products categories

contact us

Product Details

Automatic Internal Circulation Heat Shrinkable Film Packaging Machine for PVC POF PP


Introduction

PVC Heat Shrinking Machine using imported motor makes it more stable during pushing and sealing;

Aspecially designed sealing knife makes sure solid sealing line, no cracking and anti-stick;

Usage of imported electrical components reduces failure during the using process;

It is an economical shrink packaging machine.

The operation is simple. Just pressing the pusher button, the machine automatically seal then the products enter into shrink packaging machine. The machine mainly uses PE shrink film;

The machine is widely used in drinks, daily chemical, building materials, food with paper tray or without paper tray etc. And it also can be used for electrical appliances, auto parts, furniture, flooring and other individual or group shrink wrap.


Features:

1. Advanced design, stable and reliable performance, efficient power saving, good shrinkage effect, novel and beautiful structure,convenient operation and maintenance, etc.

2. The casing is thickened and the motor is enlarged.

3. Internal circulation of hot air, better energy and power saving effect.



Specifications:

Model

TMAX-BS4525

TMAX-BS4535

TMAX-BS6535

Power supply

380V 50/60HZ

380V 50/60HZ

380V 50/60HZ

Power

7KW

9KW

12KW

Shrinkage furnace size

900*450*250mm

1200*450*350mm

1200*650*350mm

Conveying speed

0-10m/min

0-10m/min

0-10m/min

Conveying              load capacity

10KG

10KG

10KG

temperature control

0-300

0-300

0-300

Applicable shrink film

PVC/POF

PVC/POF

PVC/POF

Overall dimensions

1200*650*830mm

1600*650*830mm

1600*850*830mm

Note: The height of the shrinkage furnace can be adjusted
