Working Voltage

• AC220V 50/60Hz

Power

• 1KW

Stackable Size

• 200x150mm

Stackable Layers

• Upto 500 layers

Max. Electrode Thickness

• Piled up thickness < 30 mm

Aligning Accuracy

• ±0.5 mm for stacked electrodes

Acceptable Separator Roll Size

• I.D>3'' (76mm)
• O.D<9.8'' (250mm)

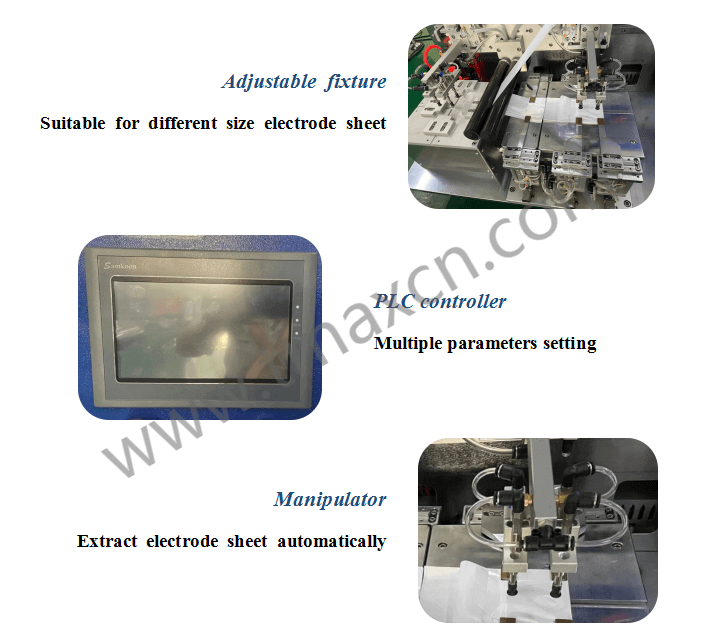

Stacking Fixture

• One set of 200 x 150mm stacking die fixture is included for immediate use.
• If you need different size electrode stacking, please inform us before order.  We will make for your at extra cost. Allowable customization size: Max.  200mm x 200mm; Min.  80 mm x 50 mm

Vacuum Pump

• An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.

Suggested Air Pressure

• 0.5 - 0.8 MPa (Air compressor is not included in the standard package.

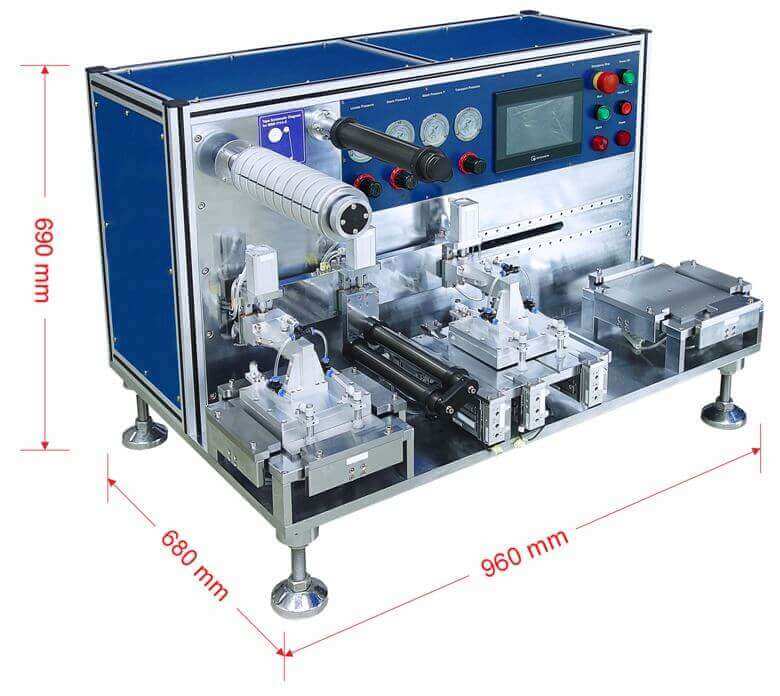

Product Dimensions

•     960 mm L x 680 mm W  x 690 mm H

Weight

• 500 kg

Compliance

• CE Certified

Warranty

• One year limited warranty with lifetime support
• Rusting and damage due to improper storage condition or maintenance is not covered by warranty
