Layer Stacking Machine

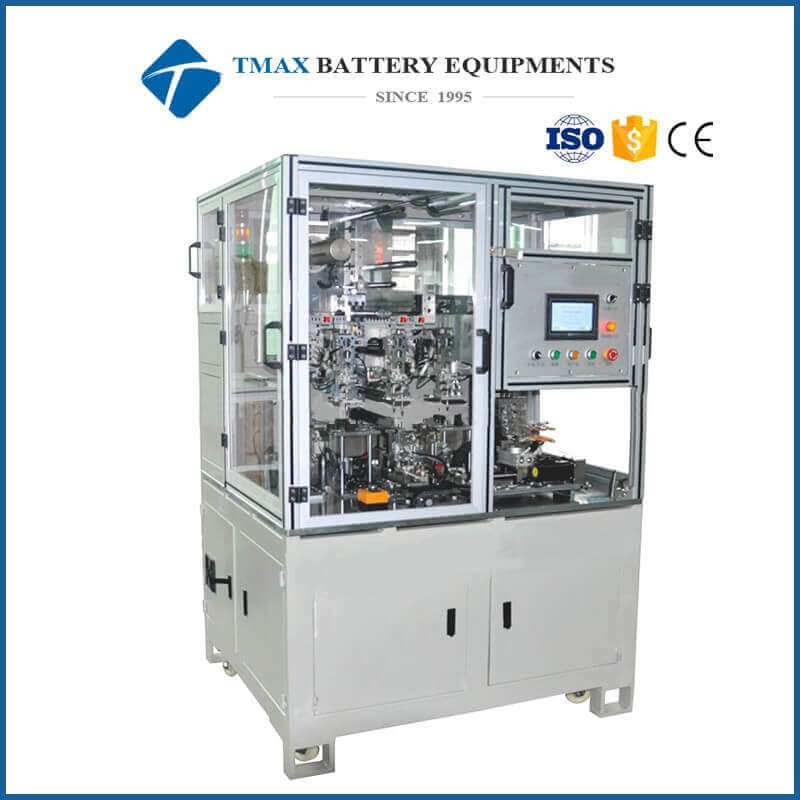

Automatic Layer by Layer Stacking Machine for Pouch Cell Electrode

  • Model Number:

    TMAX-YS-BZP180
  • Input Power:

    2.5KW
  • Net Weight:

    500kg
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details



Automatic Layer by Layer Stacking Machine for Pouch Cell Electrode


TMAX-YS-BZP180 is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.


Advanced Features:

·        PLC Touch Screen Control allows easy condition setting

·        Continuous "Z" fashion stacking with a separator

·        Auto electrode pick-up & stacking via vacuum suction manipulator

·        Adjustable mechanical fixture for accurate electrodes positioning

·        Unreeling rotors for separator film feeding

·        Auto-tension control for separator film delivery


SPECIFICATIONS:

Working Voltage

AC220V 50/60Hz

Power

2.5KW

Stackable Size

180x80mm

Stackable Layers

Upto 500 layers

Max. Electrode Thickness

Piled up thickness < 25mm

Aligning Accuracy

±0.3mm for stacked electrodes

Acceptable Separator Roll Size

1. I.D>3'' (76mm)

2. O.D<9.8'' (250mm)

Stacking Fixture

1. One set of 180 x 80mm stacking die fixture is included for immediate use.

2.  If you need different size electrode stacking, please inform us before order.  We will make for your at extra cost. Allowable customization size: Max.  200mm x 200mm; Min.  40 mm x 25 mm

3. Chang fixture requires professional training

Vacuum Pump

An Oilless Vacuum pump (28L/min, 140W) is built-in to enable the vacuum suction function of the electrode pick-up/stacking manipulator.

Suggested Air Pressure

0.7 MPa (Air compressor is not included in the standard package.)

Product Dimensions

L1100mm x W1100mm  x H1800mm

Weight

500Kg

Compliance

CE Certified

Warranty

One year limited warranty with lifetime support

Application Notes

 Note: please confirm electrode sheet size before order ( each mold only fit with one zie electrode )

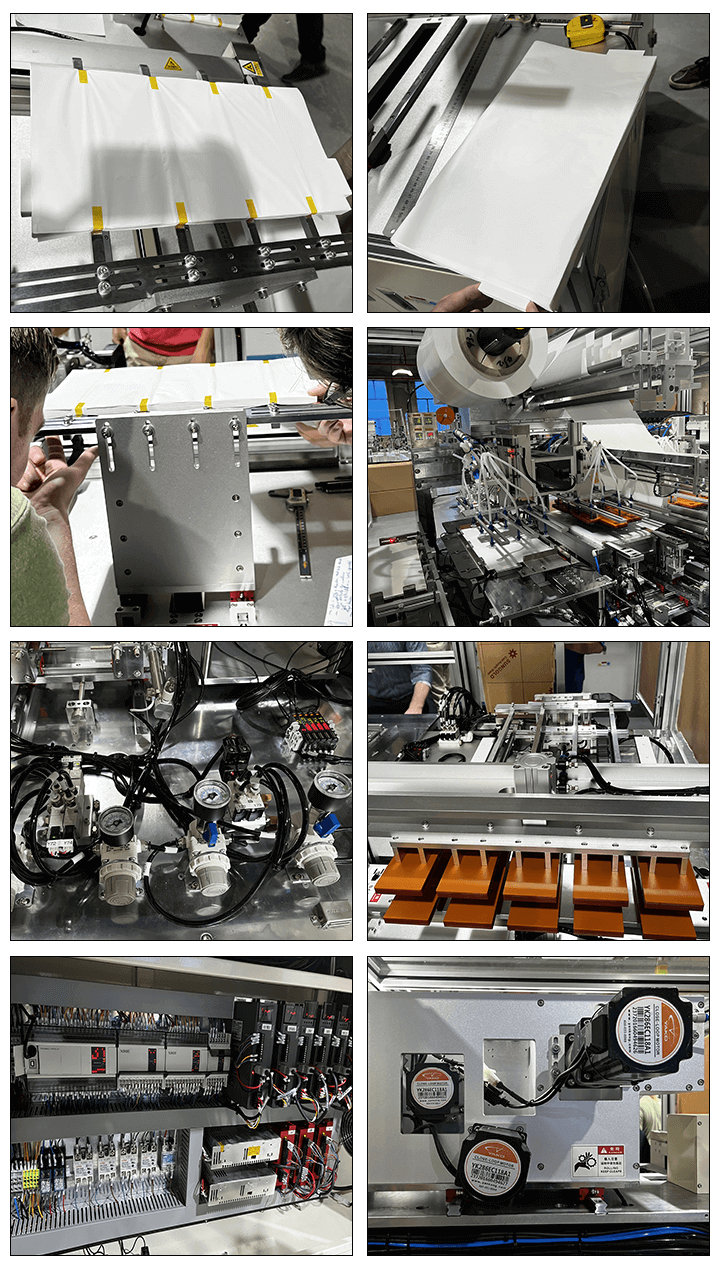

Detailed Images


Layer Stacking Machine



Pouch Cell Machine
