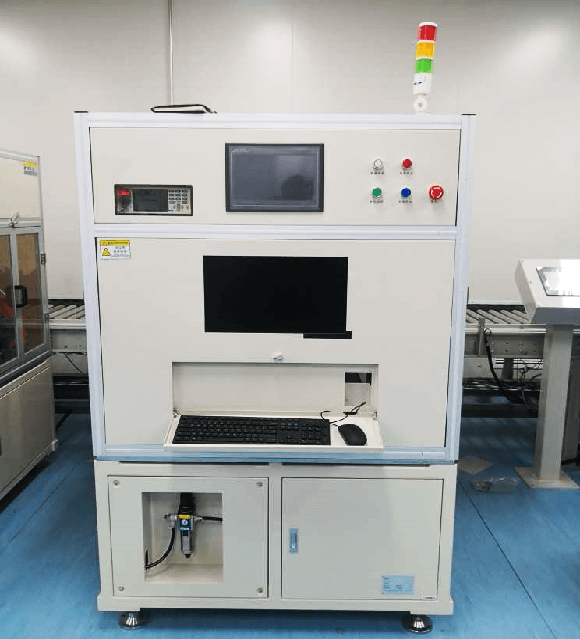

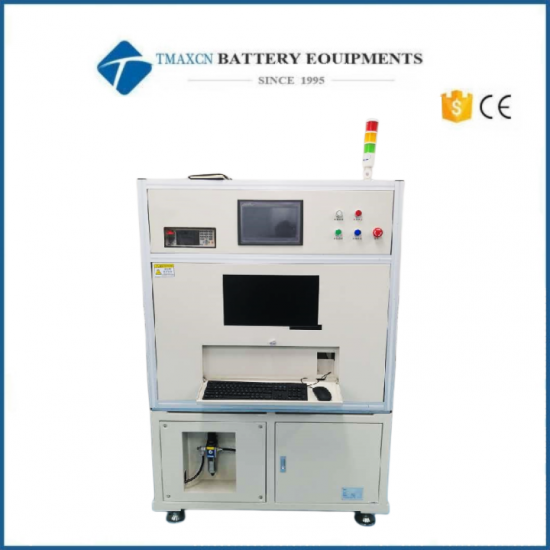

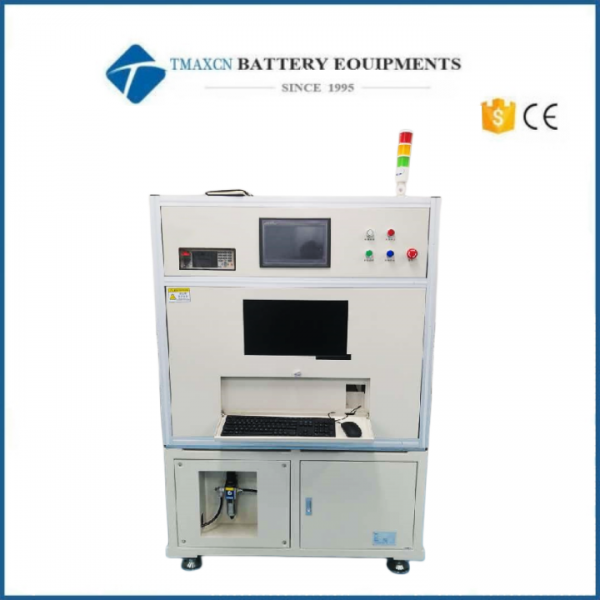

Automatic Prismatic Cell OCV Tester

I. Advantages and characteristics

1. The automatic zeroing fixture needs to be integrated into the testing station, and the testing channel can be automatically zeroed according to the system's set cycle

2. Set up a secondary positioning mechanism for the tray, with a secondary positioning accuracy of ± 0.5mm

3. Loading method: The conveyor line automatically loads and unloads materials

4. Data processing: Software independently developed, interacting with MES, WMS, WCS system data, with strong plasticity

II. Performance parameters

Capacity: ≥ 24PPM (customizable)

Control method: PLC+upper computer

Voltmeter: Agilent 34461A

Internal resistance meter: Hioki 3562

Voltage test range: 0-60V

Voltage resolution: 100uV

Internal resistance range: 0-300m Ω

Internal resistance resolution: 10u Ω

Probe service life: ≥ 30000 times

Indentation ≤ 0.1mm
