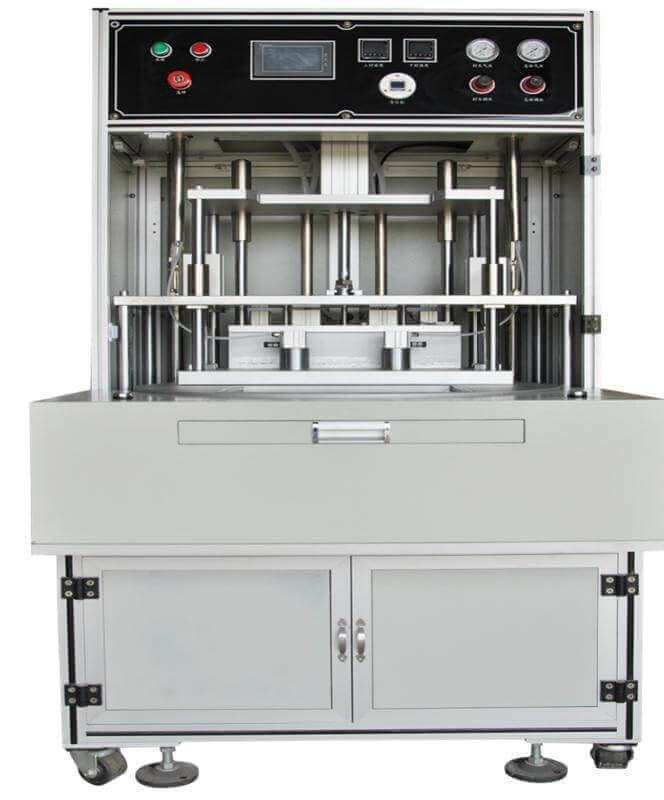

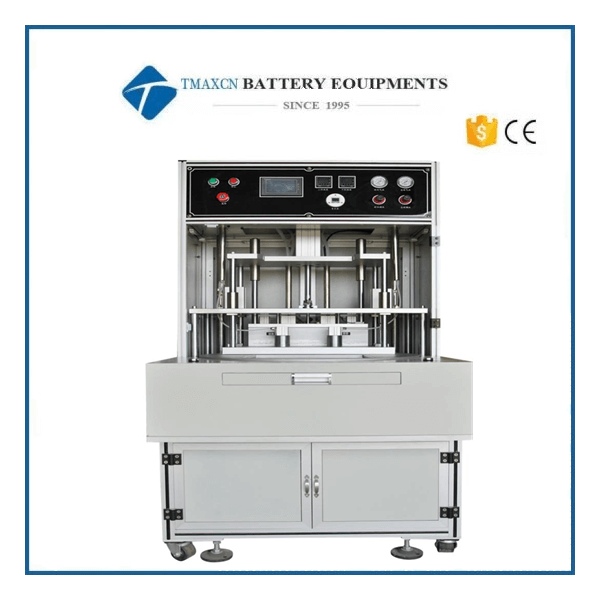

Automatic Rotary Vacuum Sealer with Auto Puncture Function for Pouch Cell Making

Main components of the equipment

1. Vacuum chamber: turntable mechanism driven by brake motor.

2. Bayonet mechanism: with vacuum display.

3. Display and control touch screen control panel (including heat sealing time control, manual single action operation mode, etc.).

4. The whole machine body adopts aluminum profile structure, all parts are surface treated to prevent electrolyte corrosion, and there are protective safety doors to prevent accidents.

5. The vacuum value can be detected and displayed by SMC negative pressure sensor, and the vacuum value can be set according to the process requirements.

6. Electrical control system.

Features

1. Double position turntable cam splitter drive;

2. The rotary table and cavity are made of corrosion-resistant materials (aluminum oxidation);

3. Preset packaging temperature, extraction time and packaging time;

4. Independent temperature control of upper and lower heads, with alarm function of too low and too high temperature;

5. The air supply pressure of head cylinder can be adjusted and displayed;

6. Digital display of vacuum degree, clear display, convenient setting and adjustment;

7. The battery is provided with a pressing plate to flatten and compress;

8. The parallelism of upper and lower heads: ± 0.01mm; the alignment can be adjusted by adjusting mechanism, and the hot head can be adjusted automatically by flat pressure.

9. The upper head and bayonet can be lifted automatically to separate from the vacuum chamber, and the lower head cavity is convenient for disassembly and maintenance;

10. Configure electrolyte separation barrel, optimize electrolyte discharge channel, reduce pollution of vacuum source;

11. Set safety door switch protection;

12. PLC is used to realize automatic control and touch screen is used to realize man-machine dialogue, which is convenient for operation and setting;

13. It has output statistics function, manual and automatic operation function, and fault alarm function;

14. Safe and stable operation, reliable control and convenient operation;

Specifications
