Product Details

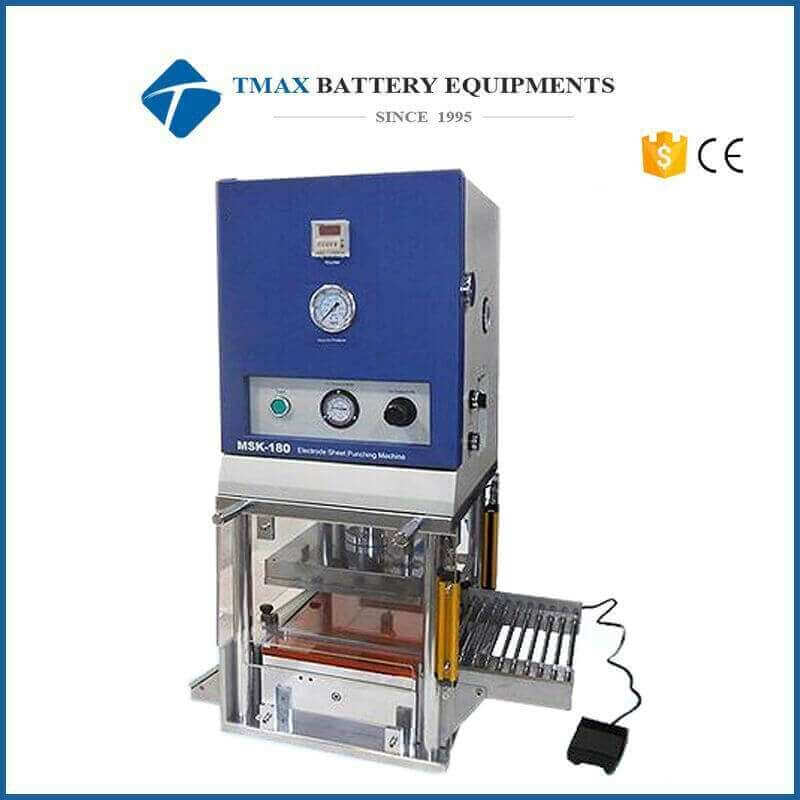

Battery Electrode Die Cutting Machine for Pouch and EV Cell Production  MSK-180


MSK180 is a CE Certified semi-automatic electrode die cutter. It is a necessary tool in the production

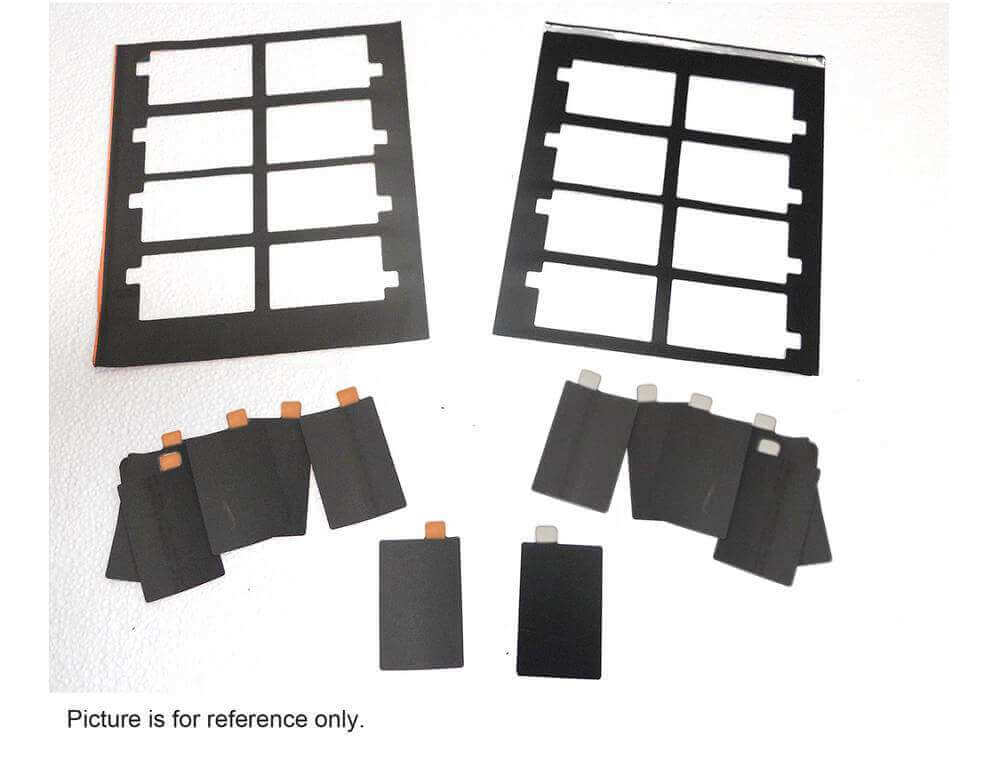

line of pouch cell to produce specific shapes of cathodes and anodes with current collector tabs.



Model

 MSK-180

Working Table Area

300mm(L) x 250mm(W)

Die Set Dimensions

 81mm (L) x 49mm (W)  with current collect included

Working Voltage

220V 50/Hz, single phase

Max. Power Consumption

10W

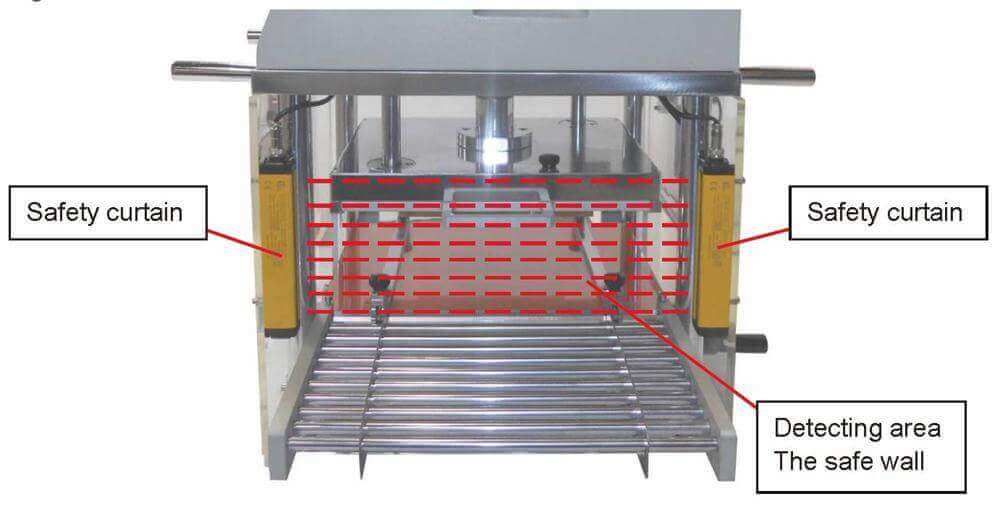

Safety Sensor

Built in IR sensor (Safety Curtain) to protect

against hand injuires during electrode feeding

Cutting Accuracy

±0.1mm

Air Cylinder

3 tons Max. pressure

Tensile Cylinder

0.15 tons pressure

Feeding

Manually

Production Yield

800 - 2000 pieces of electrodes per hour

Compliance

CE Certified

Warranty

One Year limited warranty with lifetime support

Air Pressure

recommend 60 psi (Air compressor is not included)

Product Dimensions

550mm(L) x 450mm(W) x 900mm(H)

Net Weight

120kg (265 lbs)

Apply

for pouch cell electrode sheet



Electrode Die Cutterelectrode die cutter electrode die cutterelectrode die cutterelectrode die cutter







1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


semi-automatic slitting machine


1. Standard exported package: Internal anticollision protection, external export wooden box packaging.

2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3. Responsible for the damage during the shipping process, will change the damage part for you for free.
