pouch cell hot press machine

Battery Hot Press Machine For Pouch Cell/Prismatic Cell Making

  • Model Number:

    TMAX-RY400
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

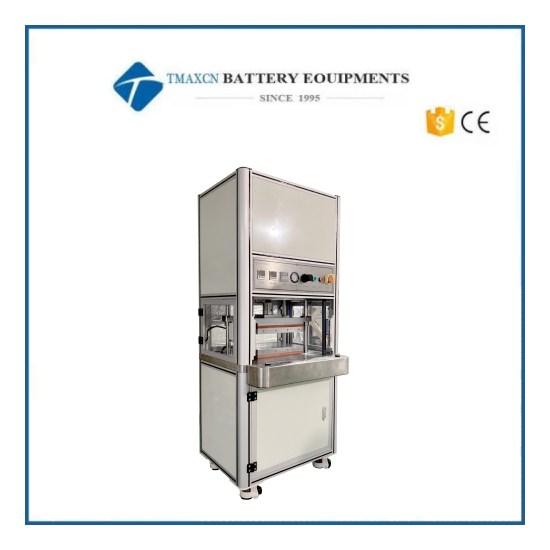

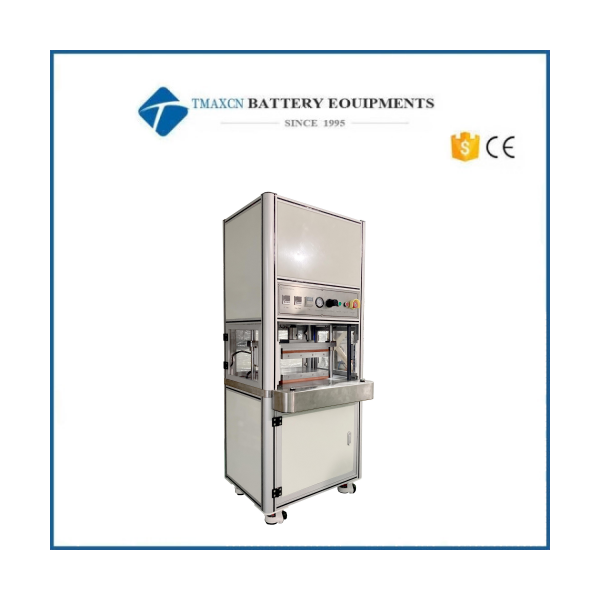

Battery Hot Press Machine For Pouch Cell/Prismatic Cell Making


1 Equipment description

TMAX-RY400 has simple structure and easy operation.

During operation, equipment power supply first, the equipment will heat automatically after setting temperature, When achieved to the set temperature, manual put the cell or other materials on the lower plate, set press time and pressure, double press the start button, the upper plate will down automatically, when up to the set time, the upper plate will rise automatically, then take out the cell or materials.



2 Technical parameters

Model

TMAX-RY400

Press plate size

400*300mm

Plate material

Copper plate

Max press pressure

5T

Parallelism of upper and lower hot plates

≤0.1mm(Tolerance as shown below)

Control temperature

RT-200,adjustable, With temperature error ±2°

Air supply

0.4-0.65MPa, compressed air connect tube outer diameter 10mm

Source voltage

Single-phase: 220V/60Hz

Power

≤4KW

Dimension(L*W*H)

About 800*760*1900mm

Weight

≤280Kg

Appearance colour

International warm grey 1C

Advantage

Equipment with universal wheel design , convenient handling, movement; Designed with load-bearing adjustable foot, upper and lower adjustable range ≥8cm, foot diameter ≥80mm

Basic configuration

5 ton gas-liquid pressure cylinder

Upper and lower copper heating plate

Upper and lower working plate thickness 30MM

Panasonic/Omron temperature controller

Omron time relay adjustable between 0.01S -99H

* FOTEK solid state relay

* Device is provided with emergency stop and an

emergency stop protective cover;

* Personnel working station is equipped with safety grating to prevent personal safety problems.

* Adopts double button start, button spacing ≥260mm;
