Battery Repair Instrument for LFP and NMP Cell

Introduction:

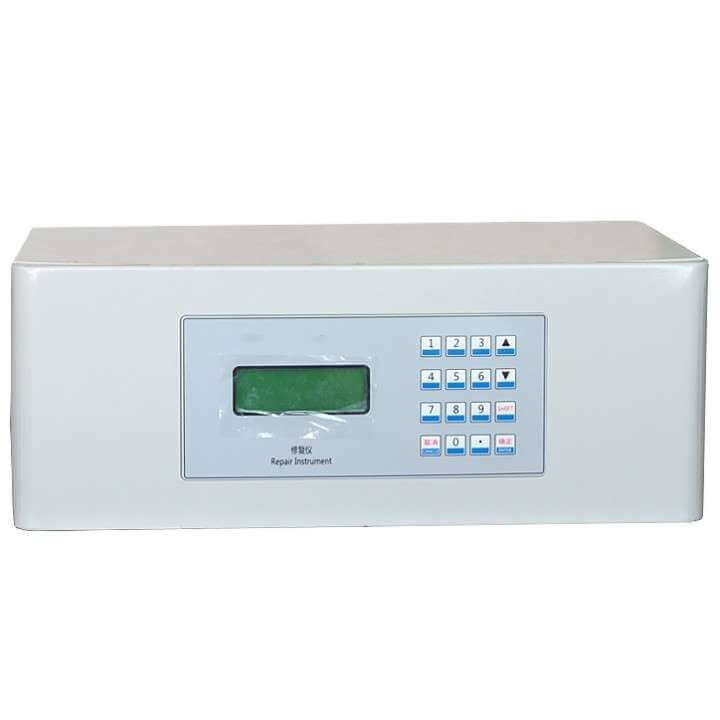

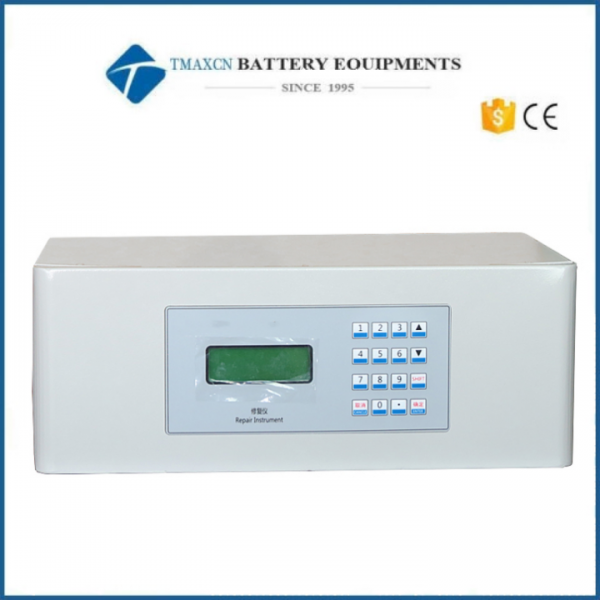

TG9000 is an intelligent repair instrument, which can repair rechargeable batteries such as ternary batteries and lithium iron batteries. It has a large automatic LCD screen and a visual operation interface. It is simple, practical and reliable. It is the best repair partner for lithium ion batteries.

Parameters:

1.Power supply: AC 220V.

2. The maximum number of repair strings is 20.

3. Charging current 0-5A can be set arbitrarily with accuracy of 1mA.

4. Charging voltage 0-84V, accuracy 1mV

5. Discharge current 0-5, accuracy 1mA

6. The charging and discharging voltage (2-4.2V) of each section can be set arbitrarily, and the voltage accuracy is 1mV.

Quick fix:

The rapid repair is based on the theory that the performance of the battery cells is consistent. The ternary system battery can be fully charged. The iron lithium battery is discharged first and then recharged. The battery repair is completed if the above steps are quickly. The voltage, charging current and discharging current of each section are displayed in the real-time repair.

Precision repair:

It has the function of independently calculating the capacity of each battery cell, filling the battery cell with electric energy and then discharging it. Finally, a certain amount of electric energy will be supplemented according to customer demand. The voltage, capacity and charge discharge current of each section are displayed in real-time repair.

Precautions for repair:

Generally, the battery pack has its own voltage signal sampling line, which is very thin. If the signal line is used to repair it, it is convenient, but pay attention to the data of charging and discharging current, which should not be greater than 1A, otherwise the line is easy to burn out. If the repair line is directly clamped to the battery pack, it can be charged and discharged with high current.
