Battery Two Workstations Top&Side Edge Sealing Machine for Pouch Cell Production Line
Model Number:
TMAX-DCF280Compliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
5 days
- WhatsApp : +86 13003860308
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : 18659217588
Previous:
Automatic Vertical Battery MYLAR Sticking Machine After Pouch Cell Top Side SealingNext:
Automatic Electrolyte Filling Machine for Pouch Cell
Product Details

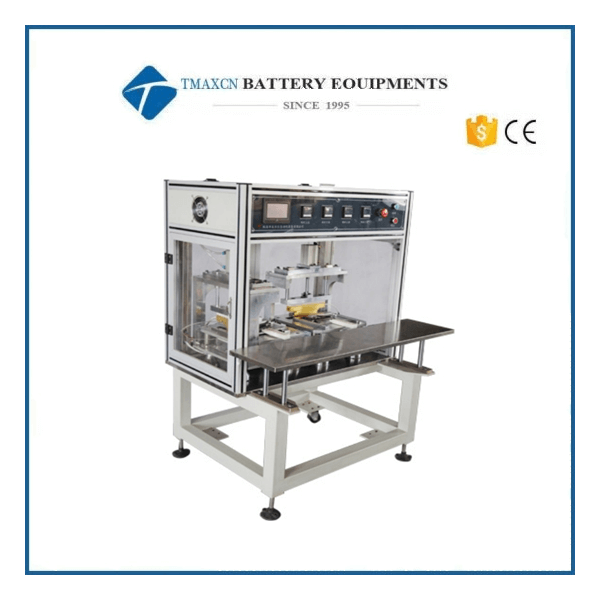

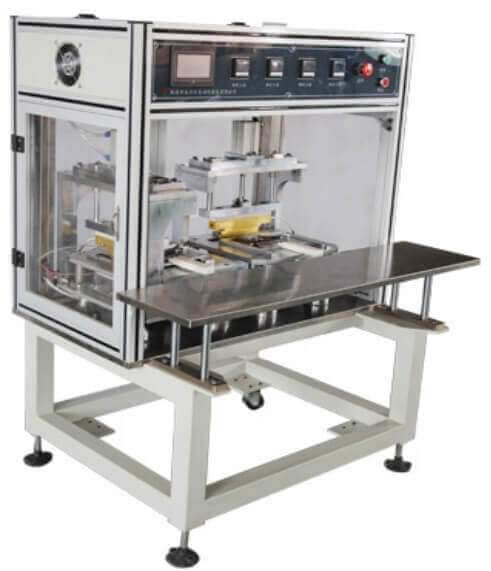

Battery Two Workstations Top&Side Edge Sealing Machine for Pouch Cell Production Line
It is suitable for pouch cell top and side hot sealing(soft seal for top seal and hard seal for side seal).
Power Supply |
220V, 50/60Hz, single phase |
Sealing width |
2~10mm |
Applicable battery size |
≤250*210*10mm |
Sealing length |
≤280mm |
Sealing temperature |
RT~230℃ adjustable |
Sealing time |
0-99.9 seconds adjustable |
Machine productivity |
300-500 EA/H |
pressure |
0.5-0.6MPa |
safety protection |
The machine is equipped with safety light curtain |

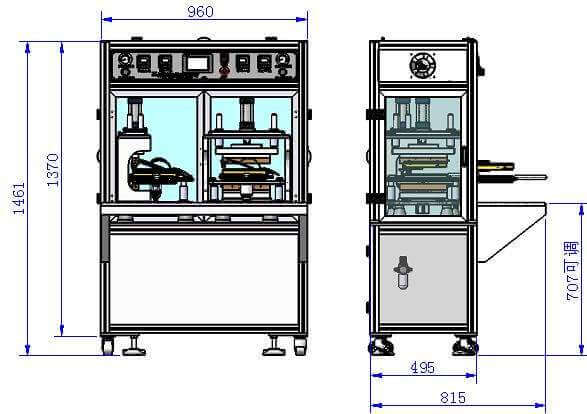

Machine size |
1100mm(L) X880mm (W) X1400mm (H) |
Equipment weight |
300KG |
