Bendable Metal Nickel Foam Size Can be Customized Nickel Foam Nickel Foam Electrode
Model Number:
TMAX-NickelFoam6Dimension(L*W*H):
0.5-6 mm ThicknessCompliance:
CE CertifiedPayment:
L/C D/A D/P T/T Western UnionDelivery Time:
2 days
- Email : David@tmaxcn.com
- Email : Davidtmaxcn@gmail.com
- Wechat : Wechat 18659217588

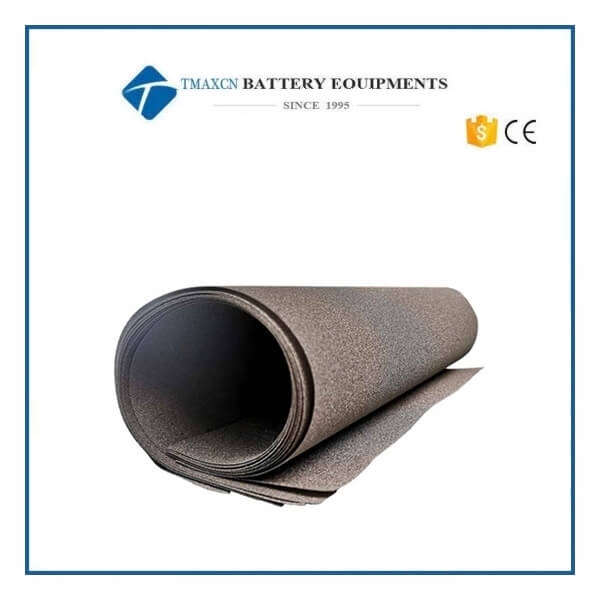

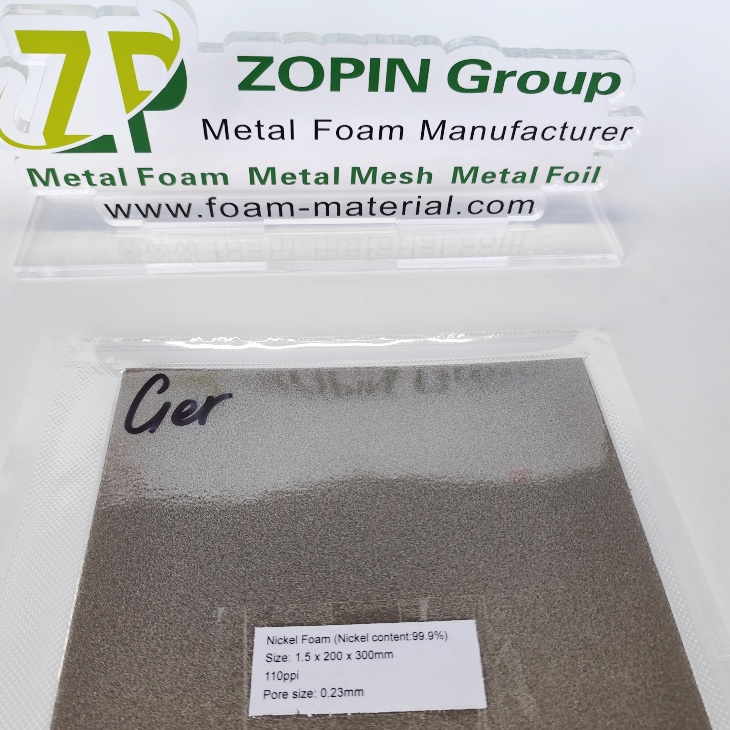

Bendable Metal Nickel Foam Size Can be Customized Nickel Foam Nickel Foam Electrode
Introduction
Ni Foam product is composed by pure Nickel. Product shows excellent properties of corrosion resistance and hardness.
Usefulness: (Various shapes can be produced)
1. Used as the base plate/substrate of positive electrode in Ni-MH / Ni-Cd battery, Supercapacitor.
2. Filtration materials of air / oil / smoke etc.
3. Porous electrode in Galvano-Chemistry Engineering.
4. Elimination of heat.
5. Amortization materials.
6. Noise-Absorbing and Vibration-Absorbing materials.
7. Electromagnetic shielding materials.
8. Catalyst carrier.
9. Precious metal recovery.
Specifications
Type |
Open cell |
Purity |
> 99% |
Form |
Sheet or Roll, depending on size & thickness |
Cell Size (PPI) |
10-150PPI, as per request |
Thickness |
Standard: 1-30mm Extra thin (<1mm) / Extra thick (>30mm) can be customized as request |
Size & Shape |
Standard: 500*500mm/ 200*300mm; can be made in different shape as per request |
Porosity |
95%-98% |
Open Cell Rate |
≥98 % |
Volume Density |
>0.1g/cm3, as per request |
Surface Density |
200-2500 g/m ^2, as per request |
Thermal Conductivity (Theoretical) |
>3W/M.K |
Mechanical Strength (Theoretical) |
≥2~7MPa |
Tensile Strength (Theoretical) |
8~50MPa |
Temperature Resistance (Theoretical) |
≥500℃ |
0.1mm*200mm*300mm |
0.2mm*200mm*300mm |
0.3mm*200mm*300mm |
0.5mm to 1.7mm*200mm*300mm |
2mm*200mm*300mm |
3 to 4mm*200mm*300mm |
5mm*200mm*300mm |
6mm*200mm*300mm |
8mm*200mm*300mm |
10mm*200mm*300mm |
10 to 20mm*200mm*300mm |
The size can be customized |
