Al foil

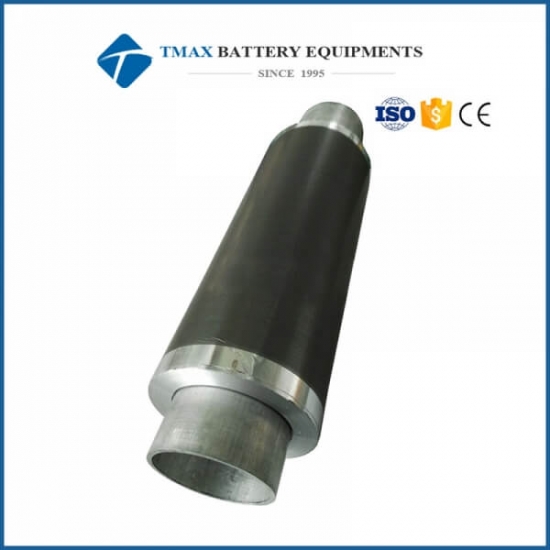

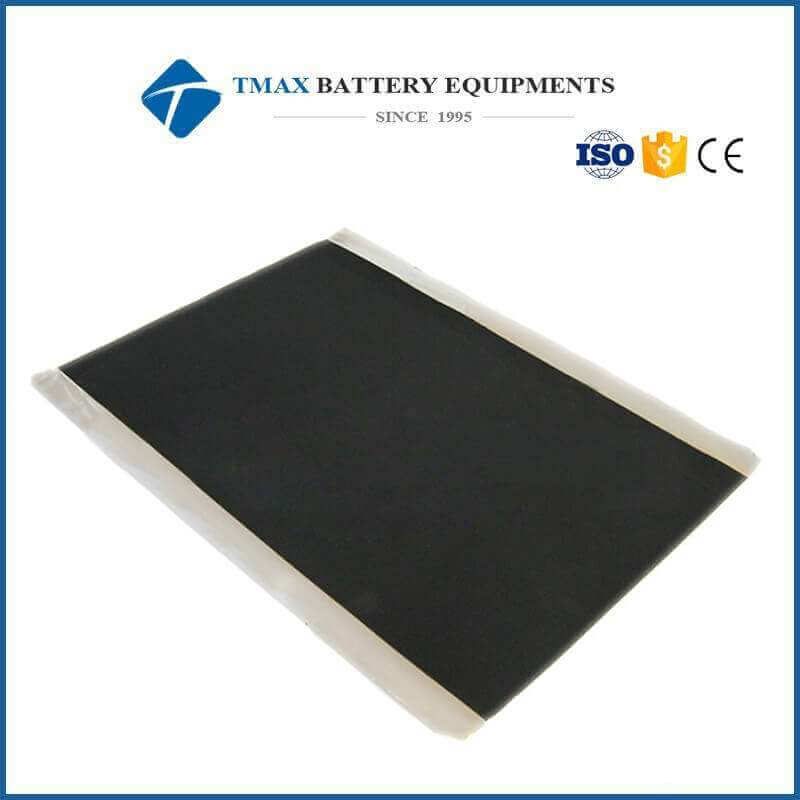

Carbon coated Aluminum foil for lithium battery cathode electrode

  • Model Number:

  • Dimension(L*W*H):

  • Compliance:

    CE Certified
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    3-7 day
  • Price:

    US $100/Kg
  • contact now
Product Details

Carbon coated Aluminum foil for lithium battery cathode electrode

1. The inhibition of cell polarization, reduce the heating effect and improve the rate performance;

2. Reduce the battery internal resistance, and decrease the circulation process of dynamic resistance increase;

3. Improve the consistency, increase the battery cycle life;

4. Improve the adhesion of and active materials, reduce the pole piece manufacturing cost;

5. Protect collection of fluid from the electrolyte corrosion;

6. Improve lithium iron phosphate, lithium titanate materials processing performance.


Coating thickness (Double side)  A: 4~6um  B: 2~3um


Conductive coating:

Using functional coatings for surface treatment of battery conductive substrate is a breakthrough of technical innovation, coated carbon foil/copper foil is to spread good nano conductive graphite and carbon coated particles, fine and uniform coating on aluminum foil/copper foil.Static electrical conductivity, it can provide an excellent collection of active material micro electric current, which can greatly reduce the positive/negative material and collector, the contact resistance between the and can improve the adhesive ability between the two, can reduce the use amount of binder, which creates an significantly improve the overall performance of the battery.Can be divided into water based coating (water system) and oil (organic solvent system) two types



Test data

Test method

Aluminum foil thickness




Black / gray

 eye survey

Conductive coating single surface density(g// side)

0.5-2.0 g/

 weighing method


             Carbon coated Aluminum foil




1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.

Planetary Ball Mill

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
