Split Test Cell

Coin Cell Three-Electrode Split Test Cell with Pressure Gauge

  • Model Number:

    EQ-3ESTC
  • Net Weight:

    2 Kg
  • MOQ:

    1
  • Delivery Time:

    7 day
  • contact now
Product Details

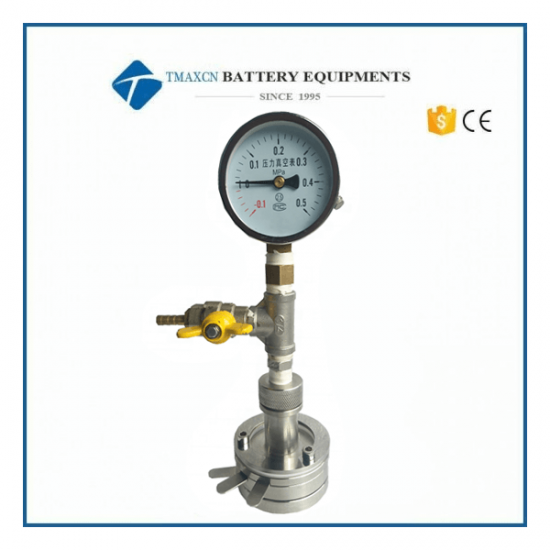

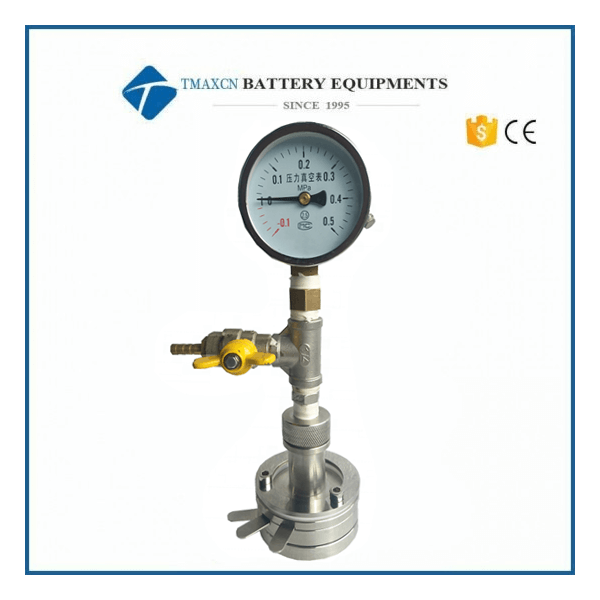

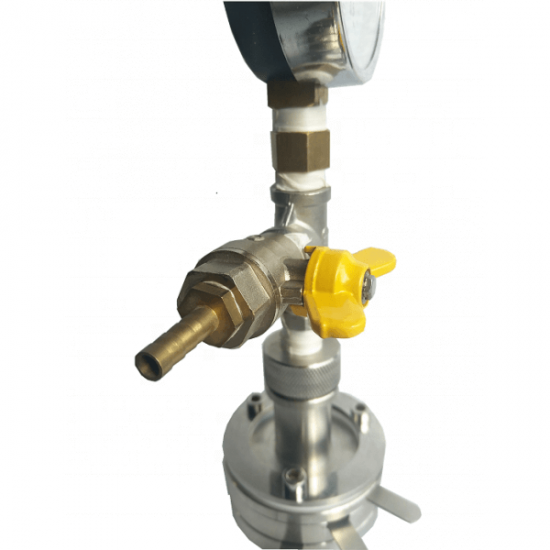

Coin Cell Three-Electrode Split Test Cell with Pressure Gauge

TMAX-Three-Electrode is a three-electrode split cell to test anode/cathode with reference electrode in between. It has a mechanical pressure gauge to monitor the air pressure inside chemical reaction chamber and a 1/8'' barb inlet/outlet with needle valve for gas easy in/out.



Specifications

Model

TMAX-Three-Electrode

Features

1) Full stainless steel structure ( SS304)

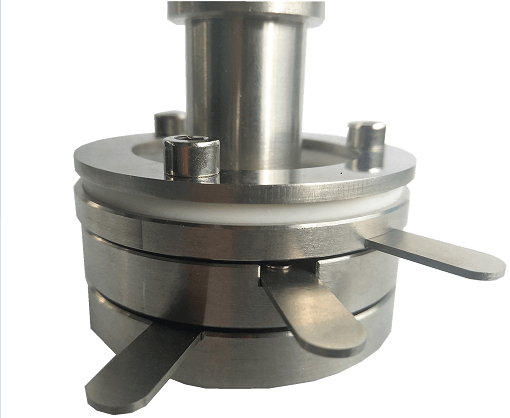

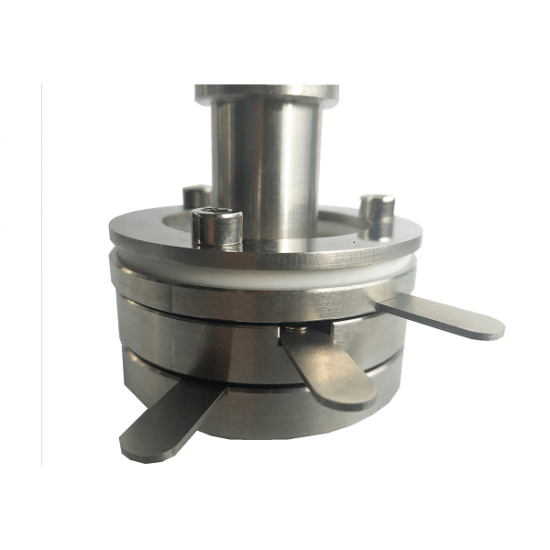

2) Silicon O-ring in between the three plates to ensure good sealing and work up to 250 °C

3) Spring load on top to accept various thickness electrode

4) Easy to separate cell after test

5) Small enough to be put in and out from glove box

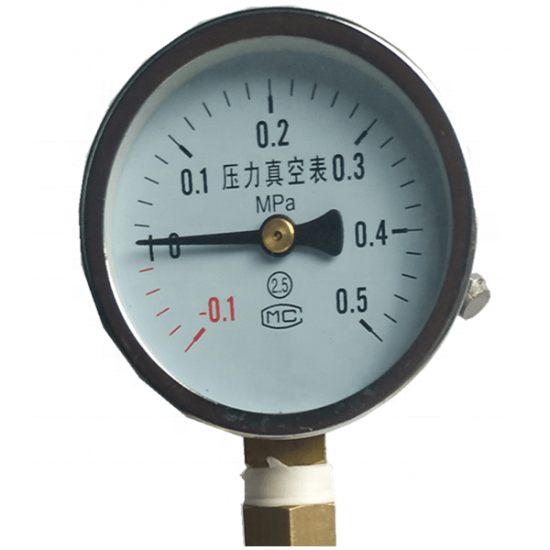

6) Mechanical Pressure Gauge: 1/4NPS Fitting (call for price and delivery time if need digital pressure gauge)

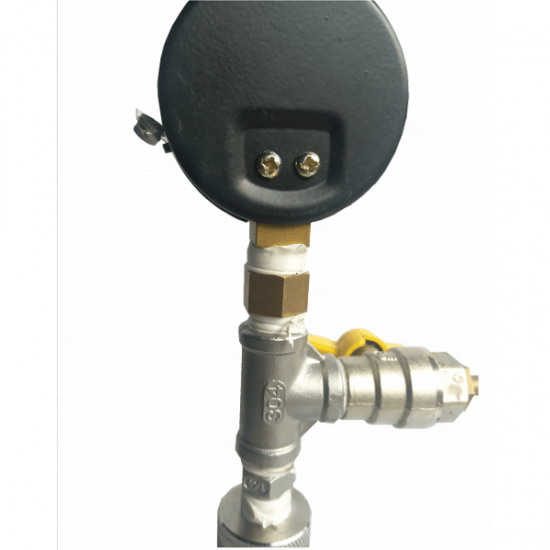

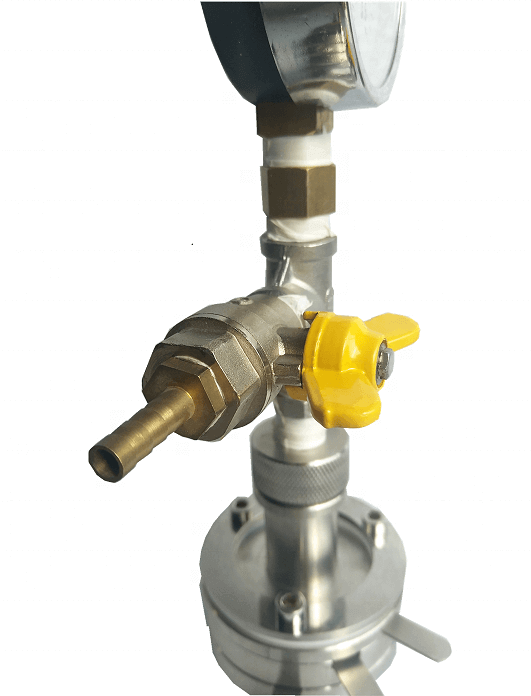

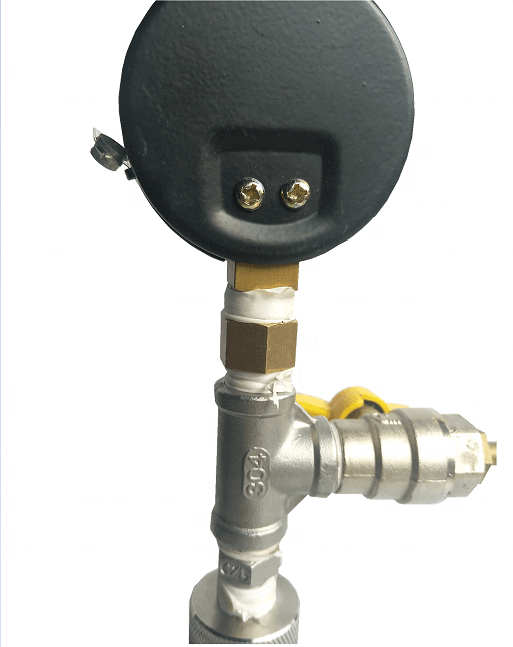

7) Niddle valve with 1/4" pipe adaptor

Specifications

Diameter insert:24 mm

Pressure Range: -0.1Mpa-0.5Mpa (0 Mpa as atmosphere)





                   Split Test Cell

Split Test Cell



Split Test Cell

              Split Test Cell


            Split Test Cell





1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Three-Electrode Split Test Cell


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
