Product Details

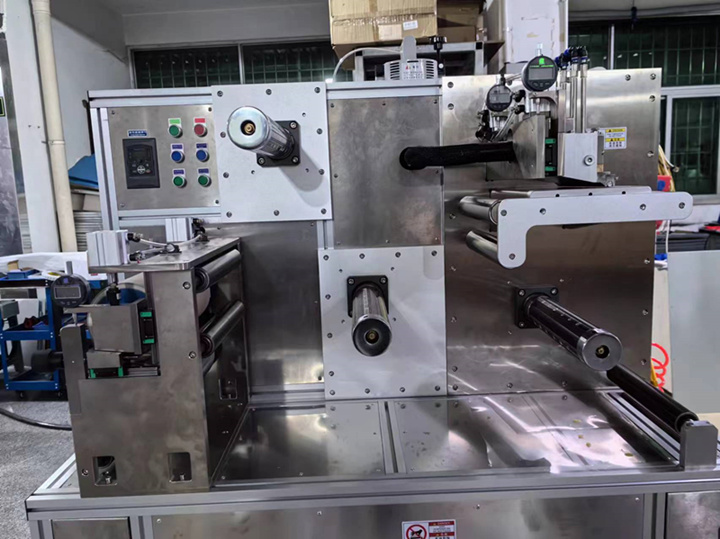

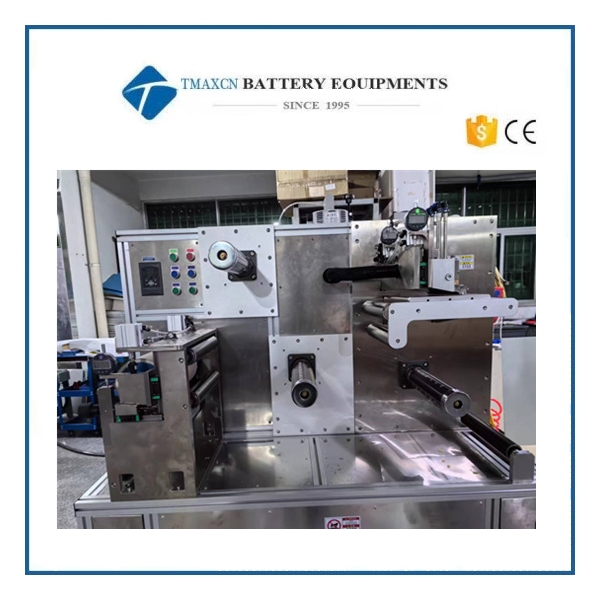

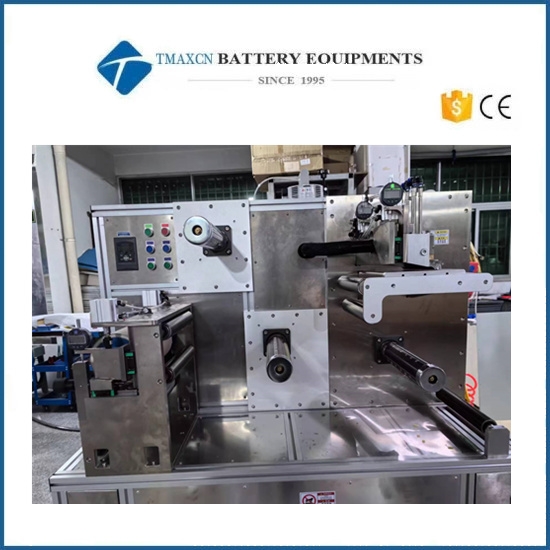

Compact Customizable Hot Melt Coating Machine 200-500mm
Equipment introduction
Small hot melt adhesive coater is suitable for roll to roll material coating, film covering and integrated automatic production hot melt adhesive coater. It is suitable for coating PET, cloth, paper, aluminum film, copper film and other roll packaging materials. The machine is designed with the advantages of full-automatic control, one button automatic tension control, automatic coating, automatic temperature constant, automatic film covering, automatic winding, etc.
Specification
| Max Coating width | 200mm-500mm optional | ||||
| Coating thickness | 0.01-2mm | ||||

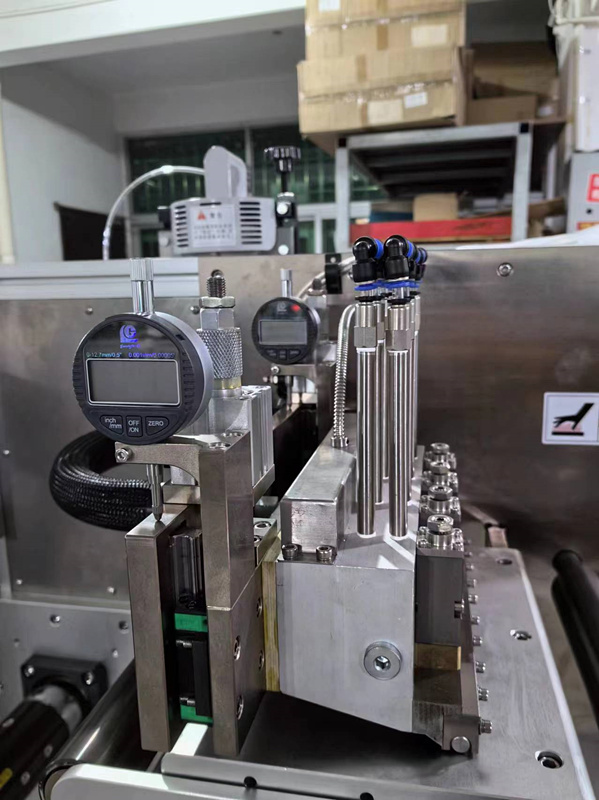

| Glue feed | hot melt slot die (1 set) | ||||
| Hot melt tank | 1L with adjustable temperature cylinder, upto 180C | ||||
| Tension | with adjustable tension control | ||||
| Coating speed | 1-30 m/min adjustable | ||||
| Lamination device | Yes | ||||
| Aligment device | Yes | ||||
| heating platform (optional) | Temp range 60-80 C | ||||
| Oven (optional) | 1 meter, normal temp - 80C | ||||
| Voltage input | 220V±10% 50/60Hz | ||||
| Certificate | CE | ||||
