Planetary Ball Mill

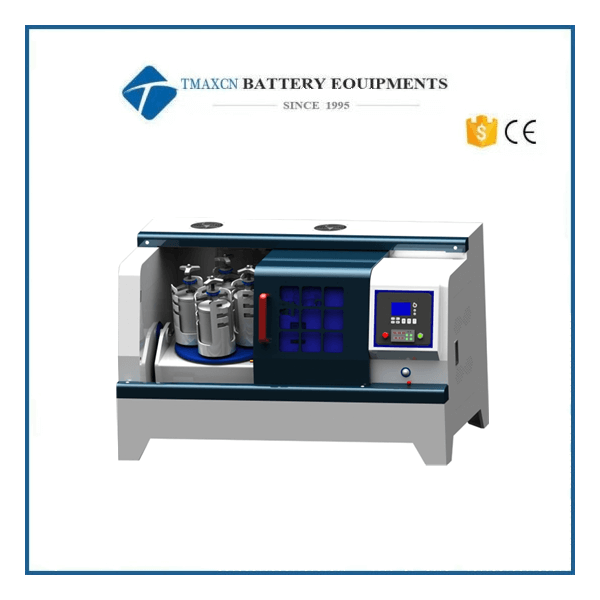

Comprehensive Planetary Ball Mill

  • Model Number:

    TMAX-OPBM
  • Compliance:

    CE Certified
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

Comprehensive Planetary Ball Mill

The comprehensive planetary ball mill is based on the vertical planetary mill, adding the turning function of the planetary transmission mechanism. While the planetary plate and the materials and grinding balls in the ball mill can do the planetary movement, they can also do the 360 ° turning in a fixed space, so as to realize the multi-dimensional and multi-directional movement of the grinding balls and materials in the ball mill, improve the degree of disordered movement of the grinding balls and materials, and complete There is no dead angle for grinding materials in the grinding tank, which makes the ground materials more uniform, and solves the problems of sinking and sticking of some materials.


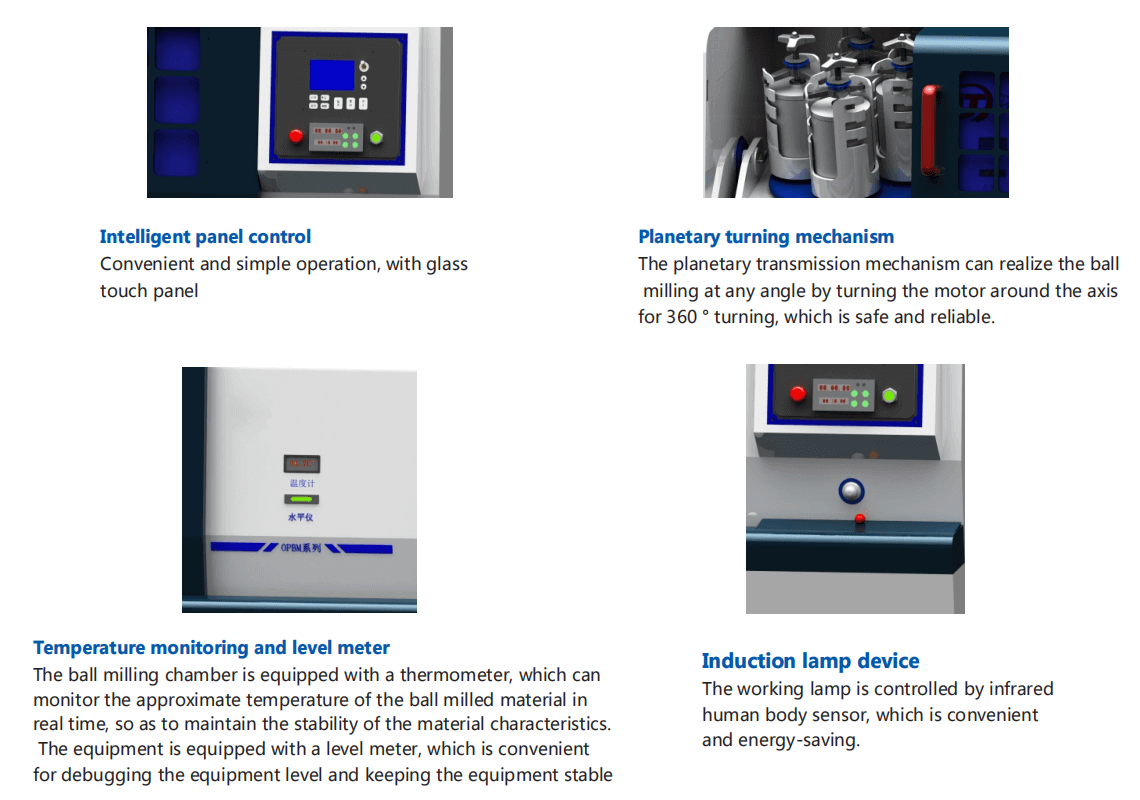

Features

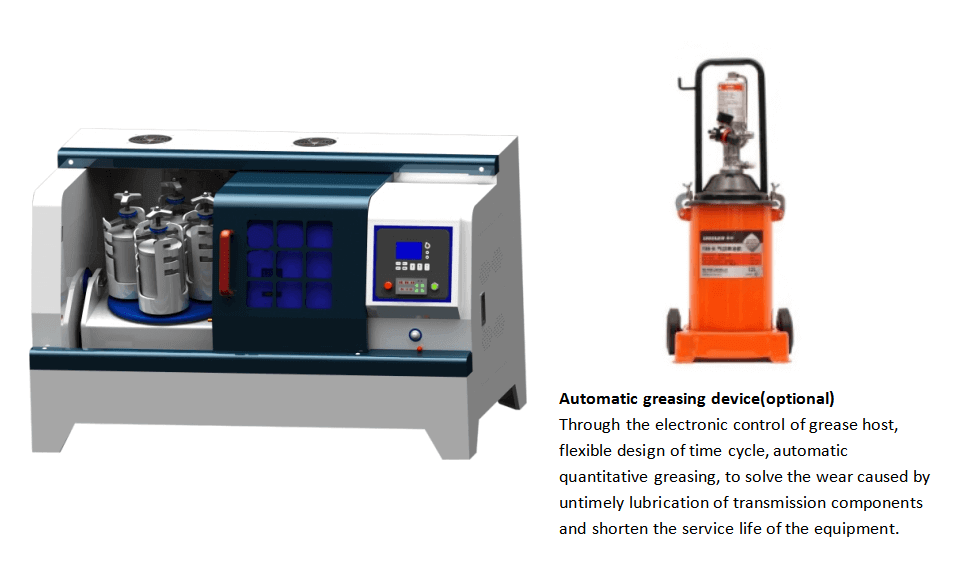

The equipment is light and easy to operate. The shell is made of high-precision laser cutting, CNC bending, elegant and high-end stable. The planetary disk and structural components are processed by CNC processing technology, and the nitriding metal heat treatment technology ensures the wear-resisting of the rotating shaft and prevents the shaft from breaking. The transmission gear is made of high-temperature wear-resistant non-metal and metal combination precision gear, lubricated by grease It can be equipped with our company's automatic greasing device, which can flexibly set how long the automatic quantitative oiling can take. It can solve the wear caused by the untimely lubrication of the transmission components, shorten the service life of the equipment, and ensure the smooth and quiet operation of the equipment at high speed.


Specifications

Transmission mode

Gear drive

Maximum sample loading

2/3 of the capacity of the ball mill

Volume of ball mill

0.05L-10L per tank, total volume 0.2l-40l

Feed size

Soil material10mm, other materials3mm

Discharge particle size

Up to 0.1um minimum

Speed regulation mode

Stepless speed regulation of frequency converter

Model

Volume

(L)

Applicable jar volume

Power(kW)

Runing time(min)

Revolution

speed(rpm)

Rotation speed(rpm)

Weight(kg)

OPBM-0.4

0.4

50-100ml

0.25

1-9999

47-465

94-930

140

OPBM-1

1

50-250ml

0.75

1-9999

35-370

70-740

280

OPBM-2

2

50-500ml

0.75

1-9999

35-370

70-740

280

OPBM-4

4

250-1000ml

0.75

1-9999

35-370

70-740

285

OPBM-6

6

1-1.5L

0.75

1-9999

35-370

70-740

290

OPBM-8

8

1-2L

1.5

1-9999

35-320

70-640

345

OPBM-10

10

1-2.5L

1.5

1-9999

35-320

70-640

345

OPBM-12

12

1-3L

1.5

1-9999

35-320

70-640

350

OPBM-16

16

2-4L

3

1-9999

30-255

60-510

400

OPBM-20

20

2-5L

4

1-9999

25-215

50-430

710

OPBM-40

40

5-10L

5.5

1-9999

20-195

40-390

1000


Planetary Ball Mill


Planetary Ball Mill


Model selection guidance

Selection of size of planetary ball mill:
According to the number of materials to be ground, choose the size of the planetary mill.
Calculation formula for size selection of planetary ball mill: a = C /ρ* 3.
Note: A is the size of planetary mill (unit: l), C is the mass of primary grinding material (unit: kg), ρis the bulk density of grinding material (unit: kg /L).
For example, if 2kg of material is ground at one time and the bulk density of material is 1.5kg/L, the size of planetary mill in row a = 2/ 1.5*3 = 4L is selected.

Planetary ball mill style and special function configuration options:

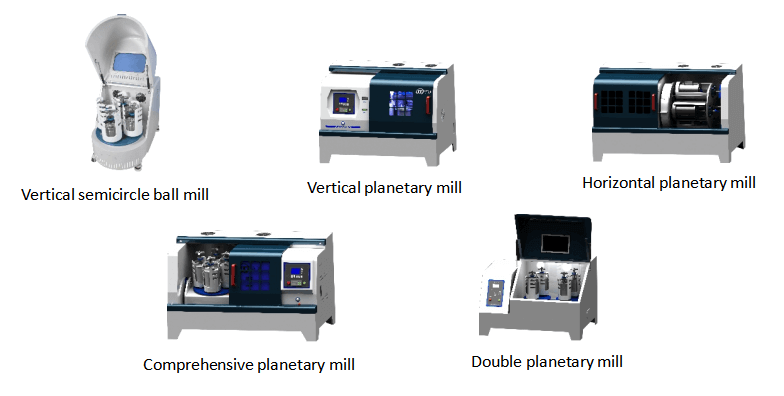

Planetary ball mill is divided into vertical, horizontal, comprehensive, double planet four styles, according to the material grinding requirements, choose the corresponding styles, each style of products can be equipped with air cooling or heating equipment according to the grinding material temperature requirements.



Reference table for selection of planetary ball mill style and special function configuration

Model selection of planetary ball mill

Nature of abrasive material

Vertical planetary mill

Grinding of general materials, no special requirements

Comprehensive planetary mill or horizontal planetary mill

The material is easy to sink and bind

Double planetary mill

Ultra high speed and ultra-fine grinding are required

With air cooling device or liquid nitrogen device

The grinding process is hot and needs to be cooled

Equipped with vacuum ball milling tank

Easy to oxidize, requiring vacuum environment or atmosphere protection

With heating device

High temperature grinding required
