Conductive Ceramic Target

Conductive Ceramic Target (1" Dx 0.3 mm t ) Li1.5Al0.5Ge1.5P3O12

  • Model Number:

    EQ-LAGP-T1

  • Compliance:

    CE Certified

  • Warranty:

    One Year limited warranty with lifetime support

  • Shipping Port:

    Xiamen

  • MOQ:

    1

  • Payment:

    L/C D/A D/P T/T Western Union

  • Delivery Time:

    2 days
Product Details

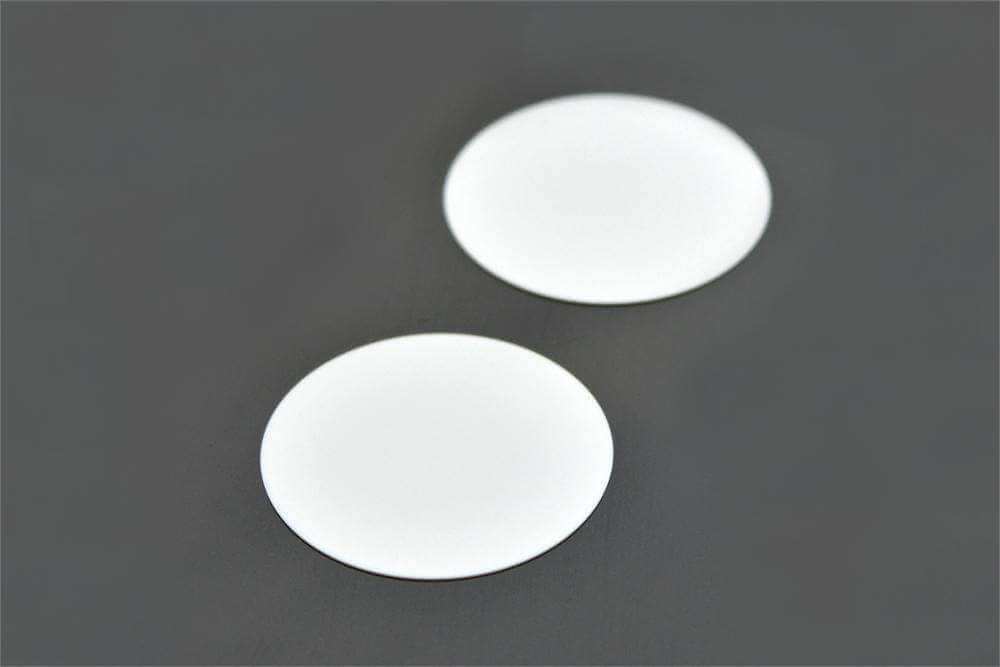

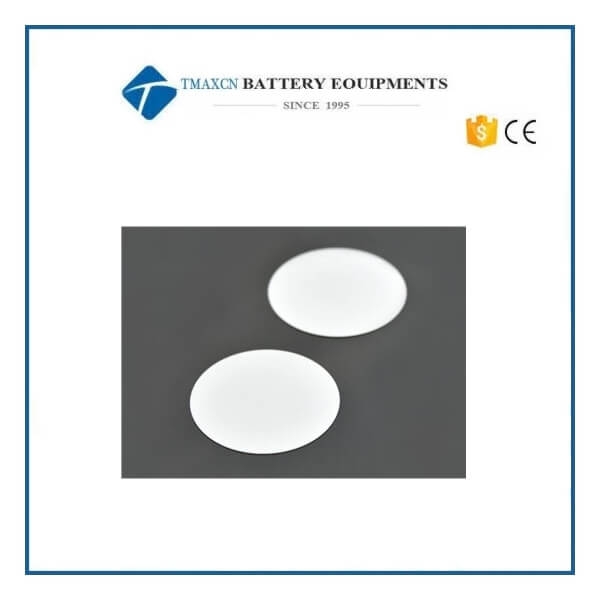

Conductive Ceramic Target (1" Dx 0.3 mm t ) Li1.5Al0.5Ge1.5P3O12

The Li1.5Al0.5Ge1.5P3O12 Conductive Ceramic  is a key enabling component for Li-ion Metal Air Batteries.  It protects the lithium metal used in the anode from oxidation by providing an impermeable barrier against air and moisture while permitting the transfusion Lithium ions.


SPECIFICATIONS

Chemical Composition

  Li1.5Al0.5Ge1.5P3O12

Melting Point

 1350oC

Dimension Thickness

 1" dia x  0.30 mm Thickness

Density

 > 95 % theoretical

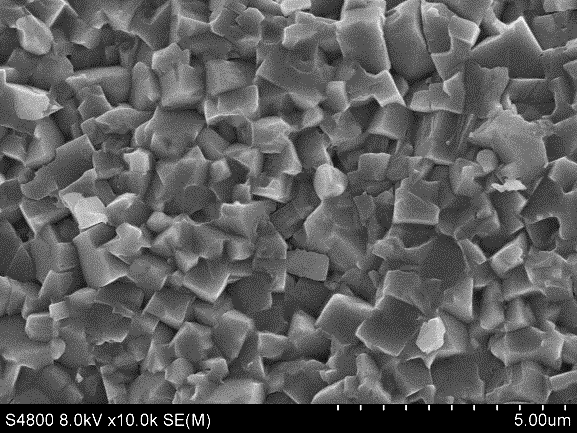

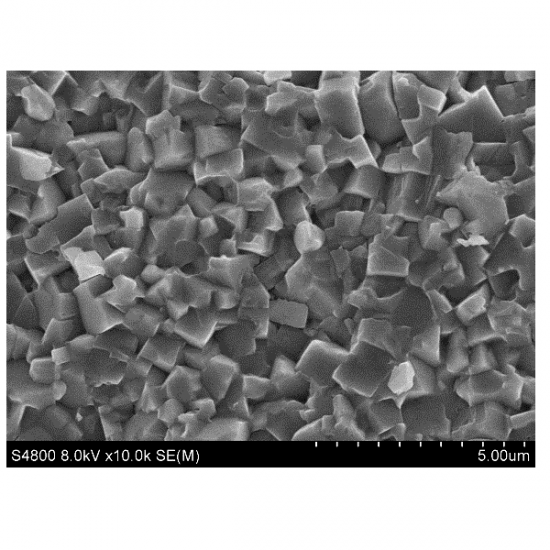

Grain size

 ~25 microm
Conductive Ceramic Target

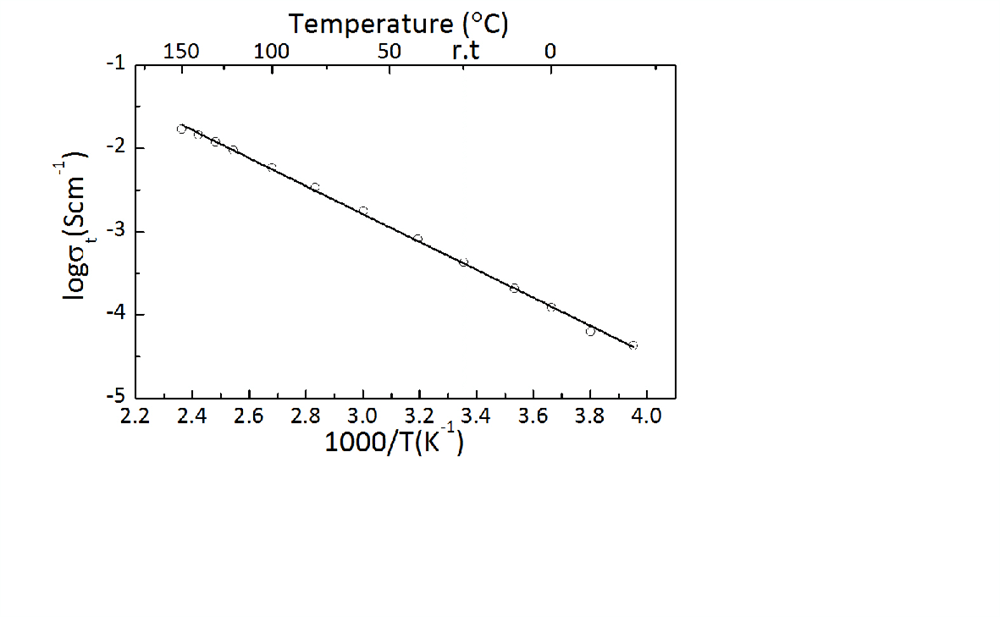

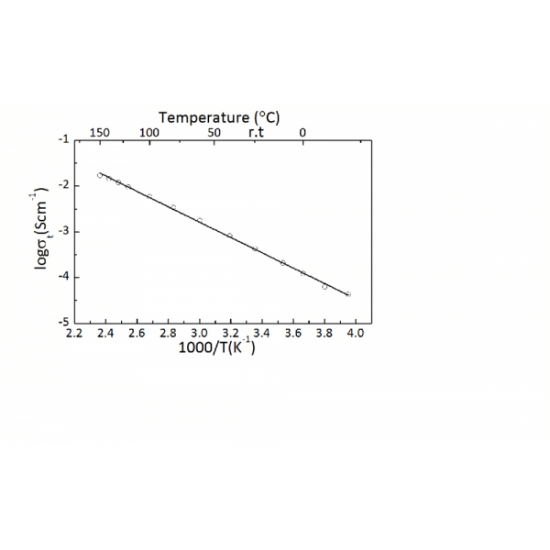

Ionic Conductivity

 4.5 ×10-4 S/cm at 25℃ Room Temperature
Conductive Ceramic Target

Physical Properties
  • Stable in both air and water
  • Solid electrolyte/ membrane with prevention against dendrite penetration

Chemical Resistance

 Conductivity of Lithium Ions will not be affected much by water and mild acids
  • RW（P）JOGIS Class 1 Water resistance
  • RA（p）JOGIS Class 1 Acid resistance

Application Notes

Suggest to use laser ablation method to make thin film due to complicated composition



Conductive Ceramic Target

Conductive Ceramic Target
