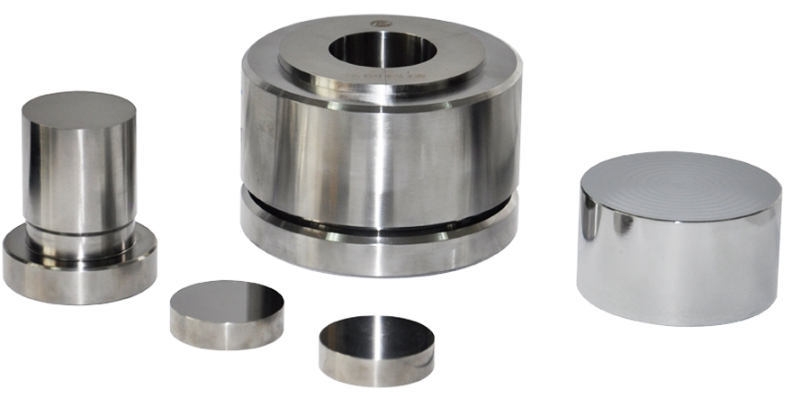

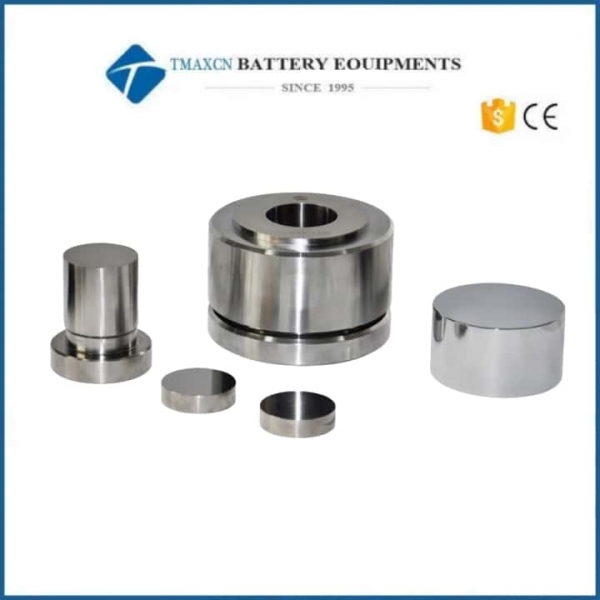

Cr12MoV Alloy Tool Steel Circular Open-petal Mold for Ultra-fine Powder Sample

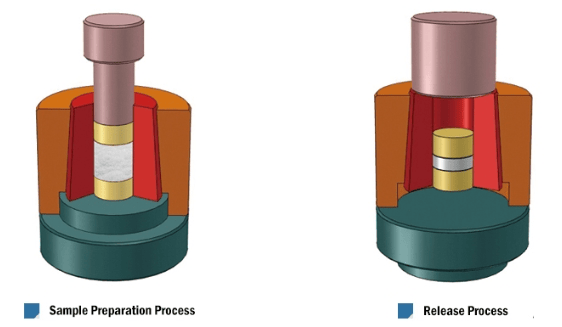

Schematic diagram of mold operation

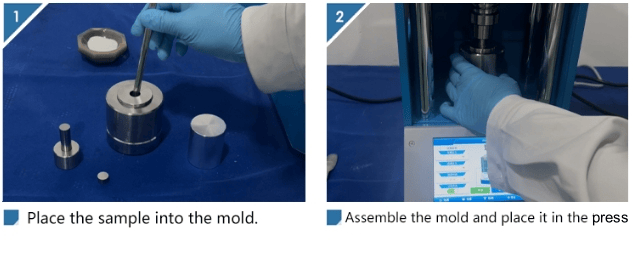

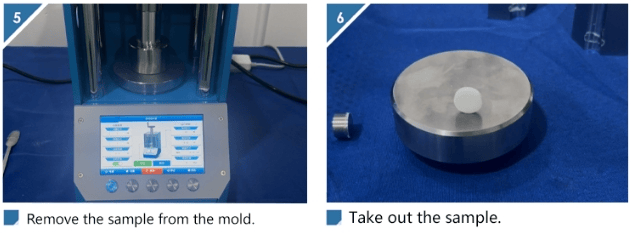

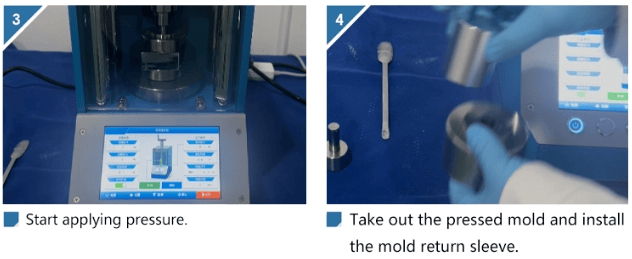

Operation steps

Cylindrical open-flap mold is suitable for the forming of ultra-fine powder or sample which iseasy to be delaminated and cracked . The mold can solve the problem of sample deforming caused by sample expansion and deformation during the demoulding process by quickly opening the mold outer cover.

Mold usage and maintenance

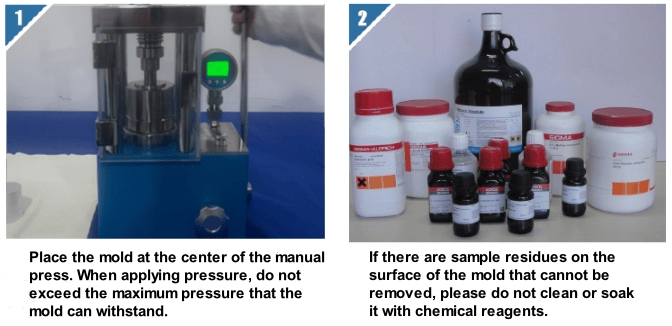

Each time the mold is used, the surface of the mold should be wiped clean with lint-free paper first to prevent the anti-rust oil on the mold from affecting the test results of the sample. When applying pressure, it is necessary to pay attention not to exceed the maximum pressure that the mold can withstand. After using the mold, the samples on the mold should be cleaned in time to prevent corrosion of the mold. When the mold is not used for a long time, anti-rust oil should be applied to the mold and it should be stored in a dry environment.

Technical parameters
