CR2032 2025 2016 High-throughput Coin Cell Crimping Machine Sealing Machine For Button Cell Assembly

Features

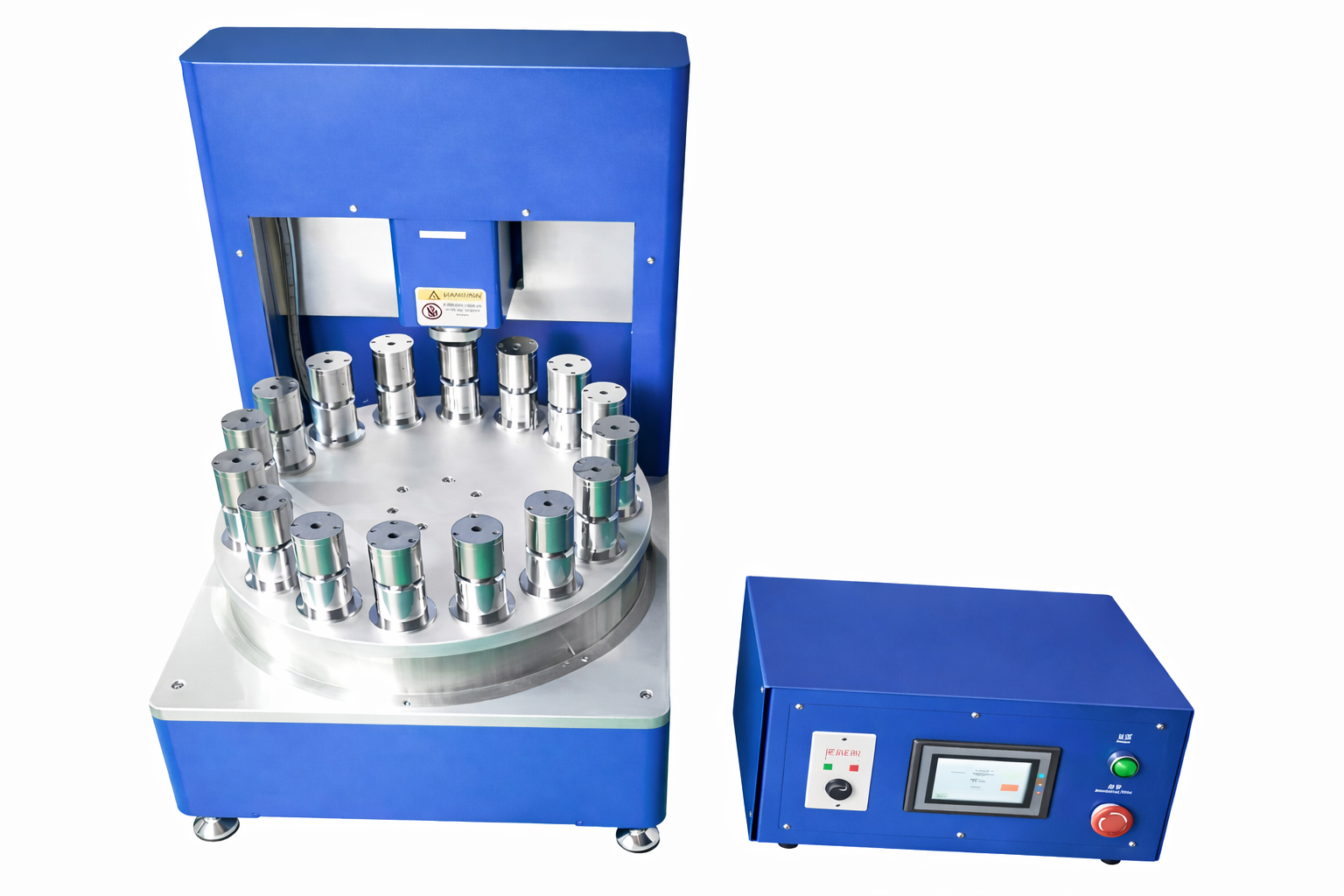

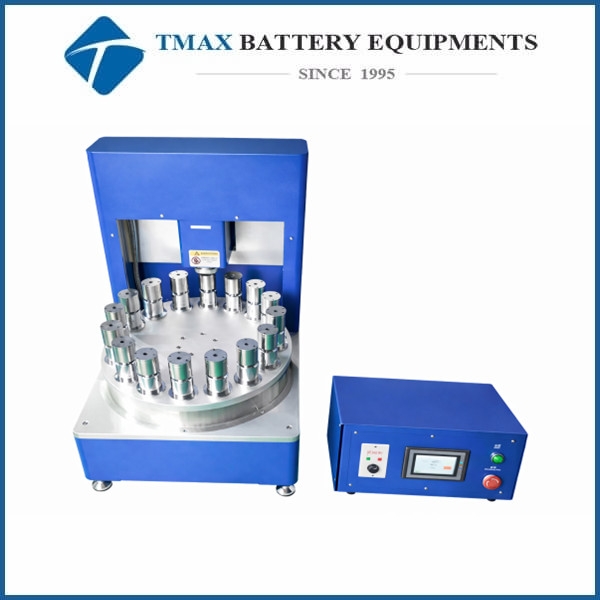

This device is a compact 10-station automatic button cell packaging machine. It is driven by a DC motor and can package button cells such as CR2016, CR2025, and CR2032. The machine can be placed inside a glove box for operation under an Ar atmosphere.

The device features adjustable and displayable packaging pressure, allowing a constant pressure to be applied during each packaging cycle, ensuring consistency in experiments.

 We also supply quality button cell crimper for you! Your satisfaction is our nice purpose!

Specifications

· 10-station rotary table design, capable of packaging 10 button cells per batch, improving packaging efficiency.

· Programmed via touchscreen and buttons for automatic packaging cycles.

· Packaging molds are made of tool steel for durability.

· Adjustable packaging pressure with digital display.

· Supports both automatic and manual operation modes.

· Easy to clean and replace molds.

· Compact design suitable for glove box operation under Ar atmosphere.

Technical Specifications

· Applicable Sizes: Standard CR2032 molds (optional molds for CR2016, CR2025, CR2325, CR2450).

· Packaging Pressure: 0–1.5 T adjustable; digital pressure gauge. (Recommended pressure for CR20XX series ≤ 0.8 T.)

· Power Supply: AC 220V / 50Hz

· Power Consumption: 1 kW

· Dimensions: Main unit: L450 × W500 × H840 mm; Control box: L460 × W380 × H260 mm

· Weight: 160 kg
