 Coin Cell Crimper

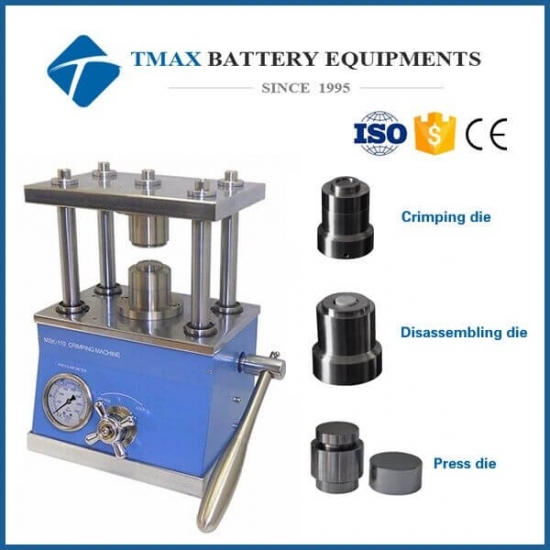

CR2032 2025 2016 Manual Hydraulic Coin Cell Crimper Sealing Machine For Button Cell Assembly

  • Model Number:

    TMAX-JK-KF20-TC
  • Type:

    Manual coin cell crimper
  • Dimension(L*W*H):

    350*300*410 mm
  • Net Weight:

    38kg
  • Compliance:

    CE Certified
  • Warranty:

    One year limited with life time support
  • Delivery Time:

    7 days
  • contact now
Product Details


CR2032 2025 2016 Manual Hydraulic Coin Cell Crimper Sealing Machine For Button Cell Assembly

Features

TMAX-SF120 is a new design and CE Certified coin cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.  We also supply quality button cell crimper for you! Your satisfaction is our nice purpose!



Specifications

Features

  •  Heavy duty steel frame
  •  PTFE Anti-Corrosion Core prevents coin cells from being short-circuited

Crimping Die

Optional die available from product option for crimping CR20XX, CR12XX, CR23XX, CR24XX, AG3, AG5

Pressure

  •  Max. 8 metric Tons hydraulic pump with automatic pressure relief
  •  Max.200 Kg/cm2 on CR20XX series coin cell

Warranty

2 years limited manufacturer warranty with lifetime support.

Product Dimensions

223mm X 170mm X 325mm

Compliance

CE Certified

Net Weight

25 kg


Application Notes

Attention: The built-in small hydraulic pump is not designed for holding high pressure. The pressure inside will be released gradually after reaching 50~80 Kg/cm^2, (which is sufficient for disassembling the coin cell).










PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
