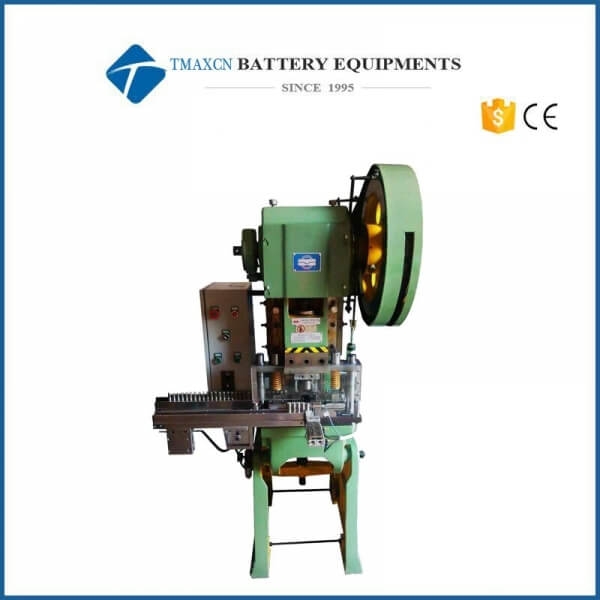

Auto Crimping Machine

Crimping Machine for Cylindrical Battery Research

  • Model Number:

    Tmax-crimper004
  • Dimension(L*W*H):

    W1200mm*D690mm*H1765mm
  • Net Weight:

    800lbs
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    15 day
  • contact now
Product Details

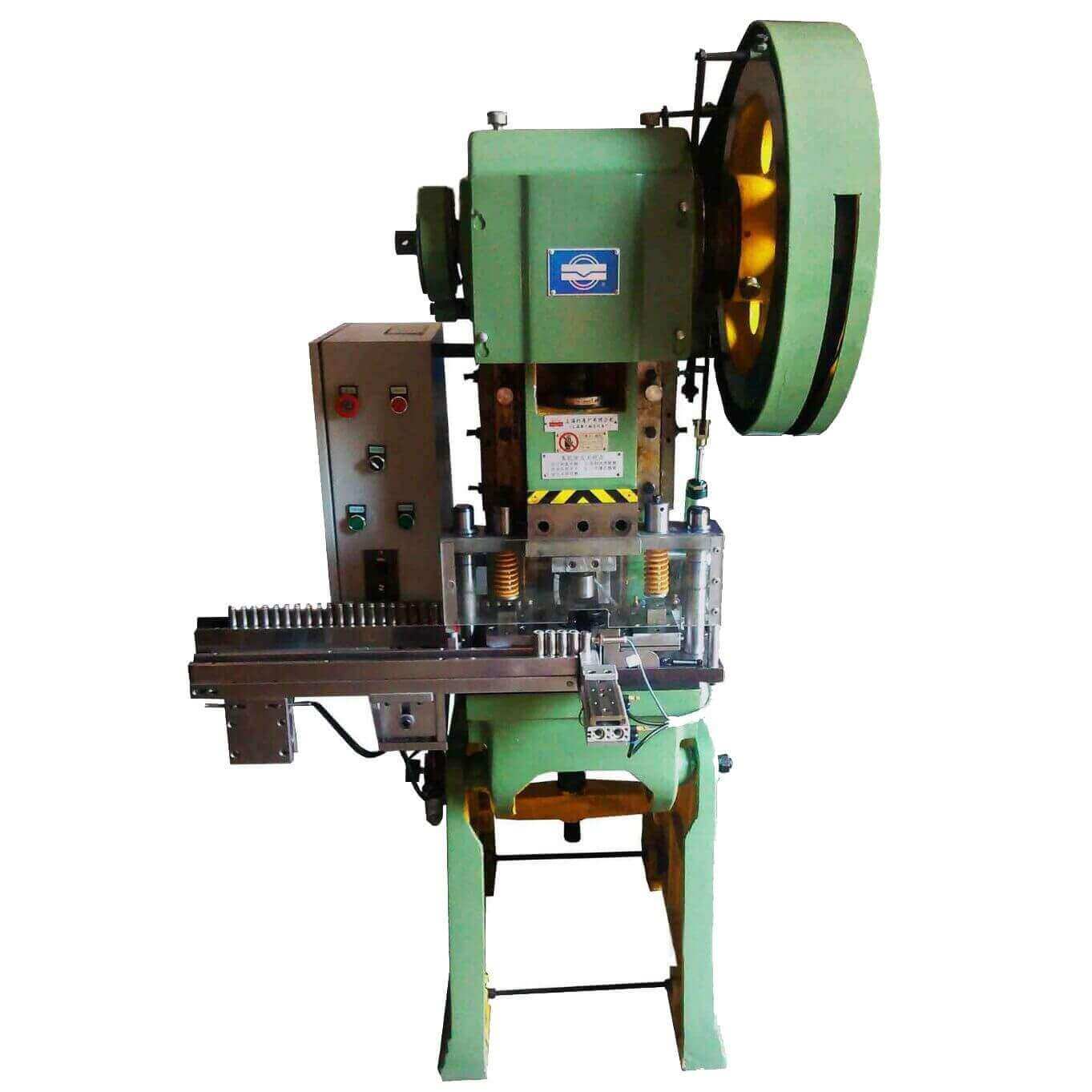

Crimping Machine for Sealing Cylindrical Battery Cases


Here is our product video link:

https://www.youtube.com/watch?v=XZFjf0yDL-o


It is an auto crimper designed for sealing the cylindrical battery cases. It provides a continues workflow for case batch loading - crimping - case unloading without dedicated labor.


Advanced Features:


                   Efficient batch loading/unloading mechanism with case feeding conveyor

·        Dedicated Four-step crimping process (1st & 2nd trials for pre-deformation, 3rd trial for complete sealing and 4th trial for case consolidation) ensures the most stable &         consistent sealing quality

·        Crimping speed and pressure is adjustable

·        User-friendly human-machine interface with PLC touch screen control

·        Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment


Specifications:


Working Voltage

110/220V AC, 50/60Hz, three Phase

Max. Power Consumption

4KW

Driving Force

Penumatic, 0.5 - 0.8 MPa compression gas is required

Compatibility



Standard crimping capability for 18650 case
Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.

Control



User-friendly HMI with PLC touch screen control ensures easy program setup



Crimping Force



Upto 6kgf/cm²



Productivity



·         30 pieces per minute

·         Material feeding conveyor is able to load upto 22 pcs per batch

Warranty



·         One year limited with lifetime support

·         Parts rusted without regular cleaning and maintenance are not covered

Product Dimensions



W1200mm*D690mm*H1765mm

Net Weight



800 lbs








1.  We supply machines with battery technology support.

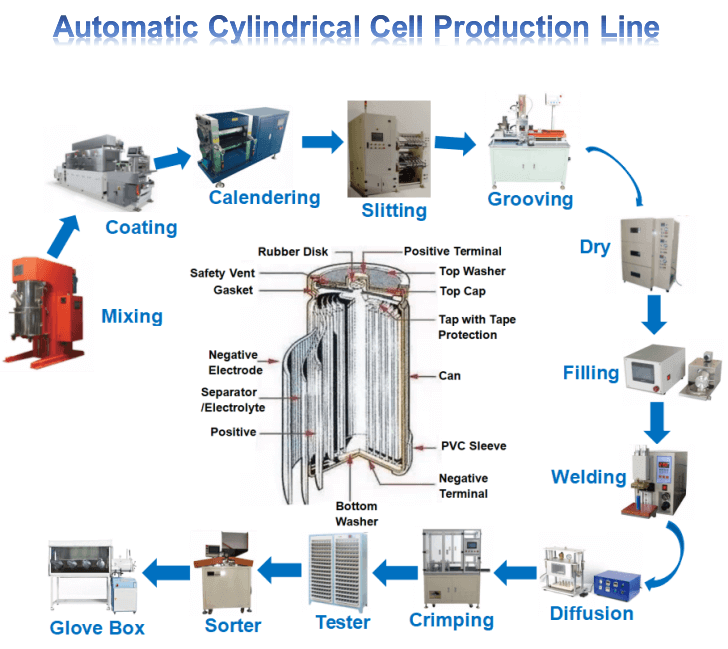

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


Hydraulic Crimping Machine


1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
