Lab coating machine

Custom Lab Hydrogel Coating Machine for Fever Cooling Patch Production

  • Model Number:

    TMAX-Hydrogel
  • Dimension(L*W*H):

    2650x1100x1700mm
  • Net Weight:

    1200kg
  • Compliance:

    CE Certified
  • Warranty:

    One Year limited warranty with lifetime support
  • Shipping Port:

    Xiamen
  • MOQ:

    1
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    5 days
Product Details

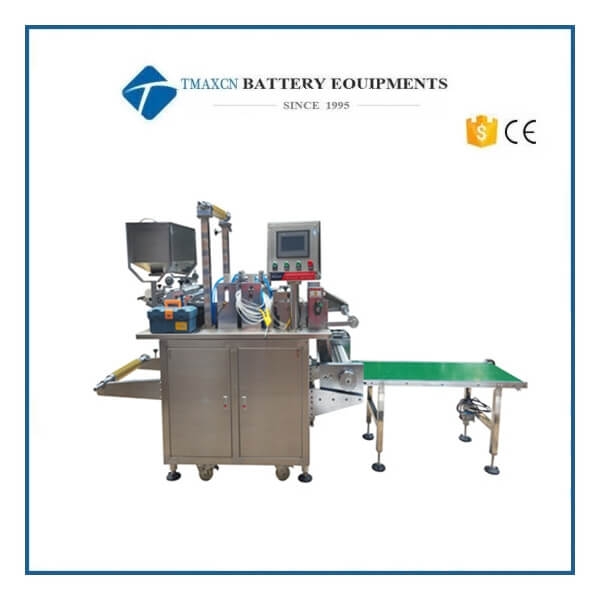

Custom Lab Hydrogel Coating Machine for Fever Cooling Patch Production

This (antipyretic paste) hydrogel coating machine is a composite coating machine for producing gel products. This type of product takes antipyretic paste as an example. Its product composition is mainly composed of three parts: an anti-adhesive layer, a drug store gel layer, and a backing layer.


A. Anti-adhesive layer: It is a transparent protective layer of PC release paper, a polyester protective film attached to the surface of the patch. Medical embossed plastic film, remove before use. For anti-sticking and moisturizing.


B. Gel layer of drug storehouse: It is a frame structure composed of macromolecules as its main part. Taking a hydrophilic polymer gel with good energy conversion function as a carrier, a variety of natural cool aromatic plant extractants are added thereto. Can effectively contain moisture, natural Chinese medicine ingredients, transdermal absorption enhancers, etc. It has the dual effects of physical cooling, Chinese medicine conditioning and nursing. At the same time of rapid physical cooling, it can effectively reduce the symptoms of fever and protect the brain.We will still provide preuium slot die coater for you!



Device parameters:

1. Production speed: 5M / min

2. Coating width: 480

3. Roll diameter: 500-700

4. Power: 0.4KW

5. Power supply: three-phase 220V

6. Size: 2650x1100x1700 (LxBxH), floor area: 2.3 square meters (including conveyor belt)

7. Weight: 1200kg

8. Equipment power: servo control system

9. Transverse cutting: adopt hob type (servo system)

10. Unwinding: with tension control

11. Control: Touch screen (Kunlun Tongtai)

12. Appearance: The material of the equipment is 304 stainless steel protection (medical standard)

13. Distribution roll die size: 50 * 120mm (one)

14. Vertical cutter installation: 11

15. Toolbox: 1 (equipped with: a thickness gauge, a set of hexagonal wrenches, a hob adjustment wrench, a hob separation crowbar, a spare screwdriver, a
